YS170 Series Round 20mm Faceplate Multipoint Door Lock - 1570mm

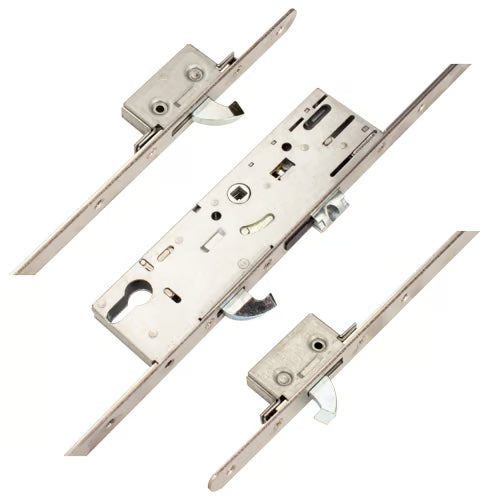

Yale YS170 Multipoint Door Lock

The Yale YS170 multipoint door lock is designed for enhanced security and ease of use, featuring 3 hooks and 1 latch. This lock is equipped with a central hookbolt that provides superior protection, along with a reversible latch for added convenience. Available in both square and radius 20mm faceplate versions, the YS170 is a versatile choice for various door types.

Key Features:

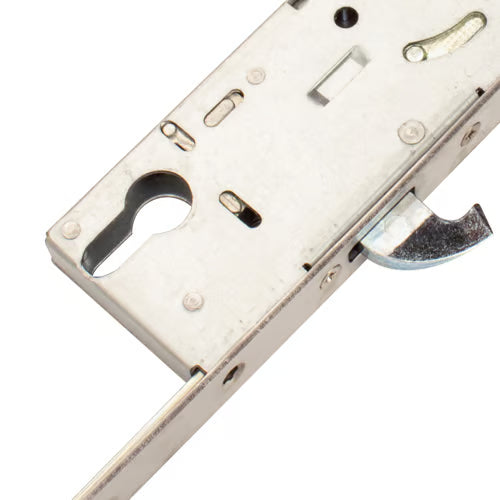

• Security: Central hookbolt for increased security.
• Versatility: Available in square and radius faceplate options.
• Identification: Distinctive Yale logo stamped on the lock for easy identification.
• Configuration: 92mm PZ (centres) with hook and latch bolt configurations.
• Compatibility: Part of a broader range including Yale, Millenco, Millenco Mantis, and Lockmaster brands.

Specifications:

• Gearbox Options: Available in 35mm or 45mm backsets.
• Dimensions: Gearboxes measure 217mm high plus backset +18mm.
• Latch and Hook Measurements: Latch and deadbolt both measure 28mm high, with a 53mm distance from the bottom of the latch to the top of the hook.
• Screw Hole Measurements: Top to middle screw hole measures 110mm; middle to bottom measures 52mm.

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to lock the locking points and main deadbolt (if applicable).
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Corrosion Resistance:

The Yale YS170 has been corrosion tested to BS EN 1670:2007 Grade 4, ensuring durability and longevity with a performance rating of 240 hours in a neutral salt spray test (NSST).

Product Specification

• Manufacturer: Yale
• Spindle Size: 8mm

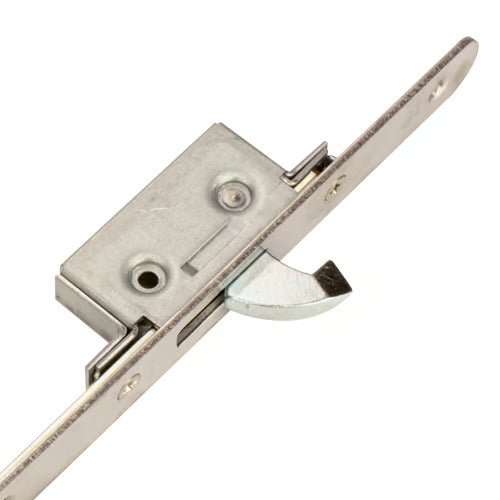

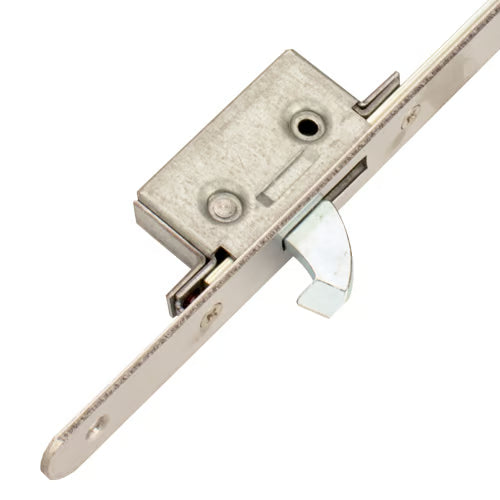

• Hooks: 3
• Latch: 1

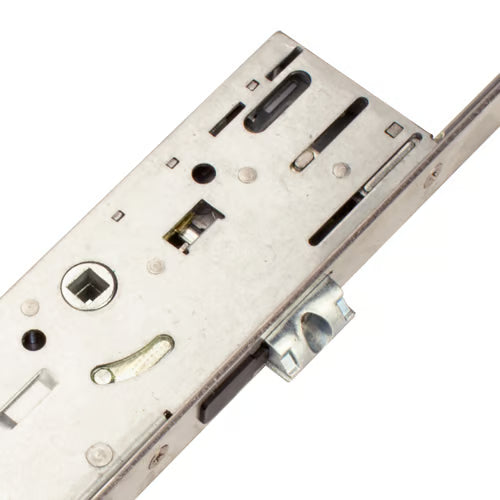

• Main Gearbox: Latch & hookbolt
• Spindle: Split 8mm
• Handing: Non handed

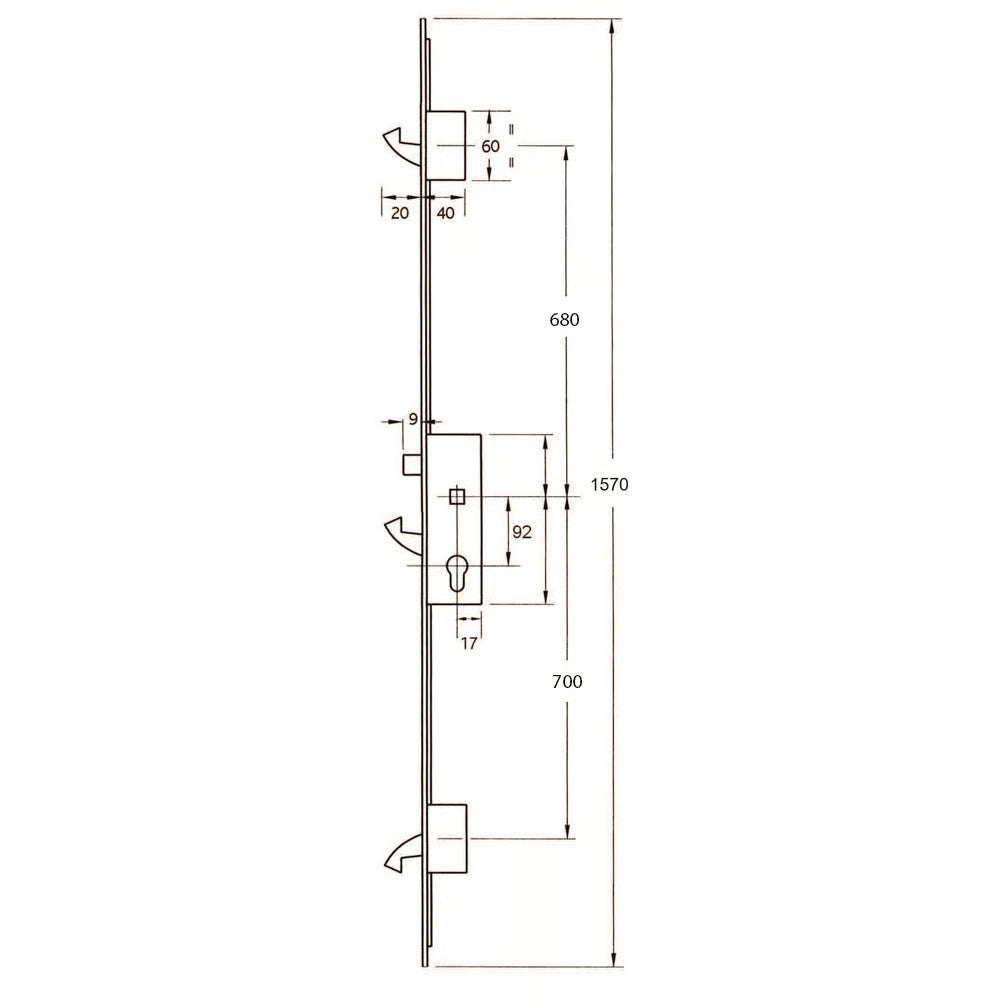

• Distance Between Inner Locking: 1403mm
• Height: 1570mm
• Top Hook to Spindle: 680mm
• Bottom Hook to Spindle: 700mm

Measuring Guidelines:

To ensure accurate measurements for your Yale YS170 multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle spindle.
  • This measurement should be 92mm for compatibility with the YS170.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • Ensure the new faceplate matches these dimensions for a proper fit.

Operation:

Select the operation type from the drop-down menu based on your door's requirements. This will determine how the lock engages and disengages.
