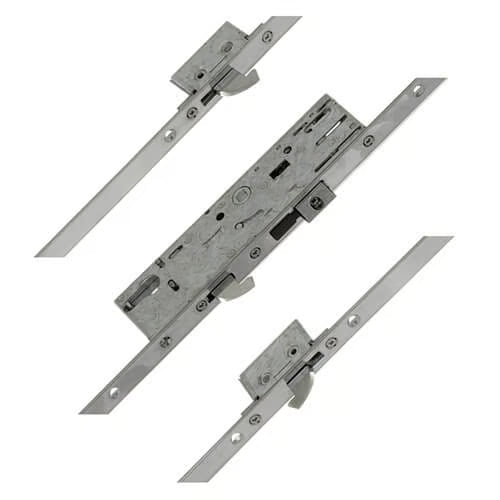

YS170 Latch 3 Hooks Split Spindle Multipoint Door Lock

Product Overview: Yale YS170 Multipoint Door Lock

The Yale YS170 multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 3 hooks and 1 latch. This innovative lock is available in both short and long versions, catering to various installation needs.

Key Features:

• Central Hookbolt: The YS170 includes a central hookbolt that significantly increases security.
• Reversible Latch: The latch is easily reversible, allowing for flexible installation.
• Distinctive Identification: Each lock is stamped with the iconic Yale logo, making it easy to identify once removed from the door.
• Compatibility: While the YS170 is part of a broader range of Yale locks, including Millenco and Lockmaster brands, it is important to note that these locks are not interchangeable despite similar appearances.

Specifications:

• PZ Centres: The lock features 92mm PZ centres with specific hook and latch bolt configurations. The hook is positioned below the latch, distinguishing it from the Yale G2000 model.
• Gearbox Options: Available in 35mm or 45mm backsets, the YS170 gearboxes come with a split spindle mechanism, which can also function as a lift lever with a solid spindle.
• Dimensions: Gearboxes measure 217mm high plus backset +18mm. The latch and deadbolt both measure 28mm high, with a 53mm distance from the bottom of the latch to the top of the hook.
• Screw Hole Measurements: Gearboxes are fitted to faceplates with three screw holes, with the top to middle screw hole measuring 110mm and the middle to bottom measuring 52mm.

Operation Instructions:

• To lock the door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to lock the locking points and main deadbolt (if applicable).
• To unlock the door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Durability: The Yale YS170 has been corrosion tested to BS EN 1670:2007 Grade 4, ensuring reliability and longevity with 240 hours of neutral salt spray testing (NSST).

Product Specification

• Manufacturer: Yale
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1198mm
• Height: 1930mm
• Top Hook to Spindle: 441mm
• Bottom Hook to Spindle: 757mm

Measuring Guidelines:

To ensure accurate measurements for your Yale YS170 multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle spindle.
  • This distance should be 92mm for the YS170.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • Ensure the new faceplate matches these dimensions for a proper fit.
• Operation:
  • The operation of the lock can vary based on the specific installation and user preference.
  • Consult the installation manual for detailed instructions on how to operate the lock effectively.

By following these guidelines, you can ensure a proper fit and optimal performance of your Yale YS170 multipoint door lock.
