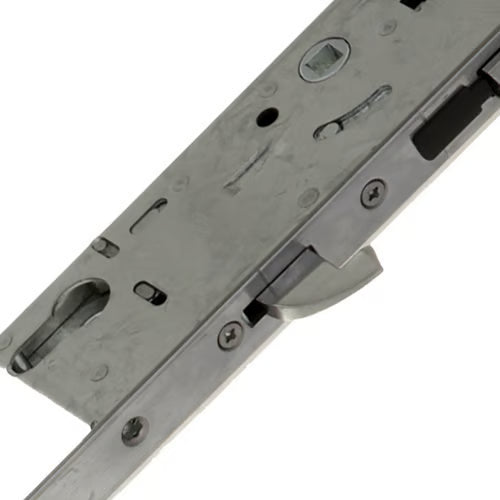

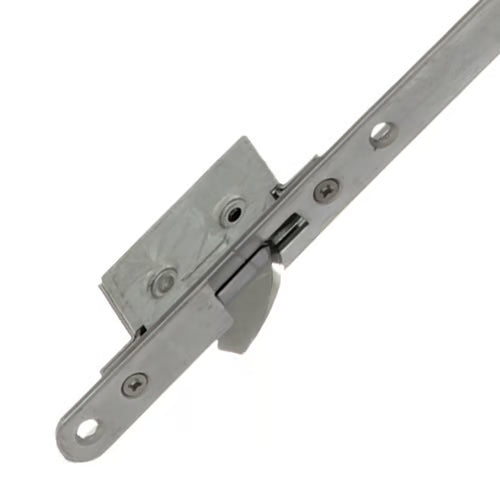

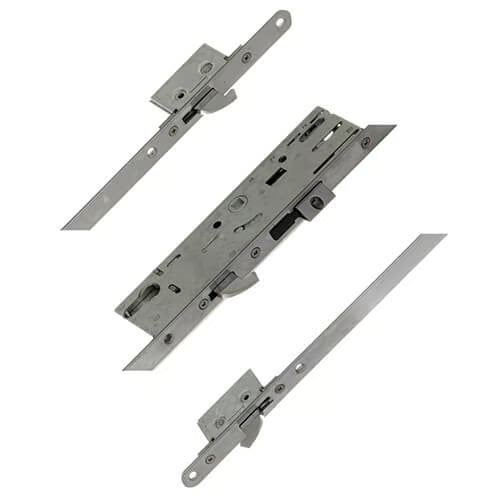

YS170 Latch 3 Hooks 20mm Round Faceplate Multipoint Door Lock - Option 2 (top hook to spindle = 806mm)

Yale YS170 Multipoint Door Lock

The Yale YS170 multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 3 hooks and 1 latch. This lock is a popular choice among homeowners and builders alike, known for its reliability and adaptability to various door types.

Key Features:

• Identification: The YS170 is easily recognizable by its distinctive Yale logo stamped on the lock.
• Compatibility: This lock is part of a broader range of Yale locks, including Millenco, Millenco Mantis, and Lockmaster brands.
• Gearbox Options: Available in 35mm or 45mm backsets, the YS170 gearboxes come with a split spindle mechanism, allowing for a lift lever function when using a solid spindle.
• Dimensions: The gearboxes measure 217mm in height plus the backset, with the latch and deadbolt both measuring 28mm high.
• Installation: Gearboxes are designed to fit faceplates with three screw holes, with specific measurements for easy installation.

Operation Instructions:

• To lock the door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to secure the locking points and main deadbolt (if applicable).
• To unlock the door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Durability: The YS170 has been corrosion tested to BS EN 1670:2007 Grade 4, ensuring long-lasting performance even in challenging environments.

Additional Products: We offer a comprehensive range of associated products for the Yale YS170, including keeps, spindles, handles, and other accessories, making it easy to find everything you need for installation or replacement.

Applications: This lock is versatile and can be used in various door types, including UPVC, aluminum, timber multipoint, and composite doors.

Product Specifications

• Manufacturer: Yale
• Backset: Selectable from drop-down options
• Centres PZ: 92mm
• Faceplate: Selectable from drop-down options
• Spindle Size: 8mm

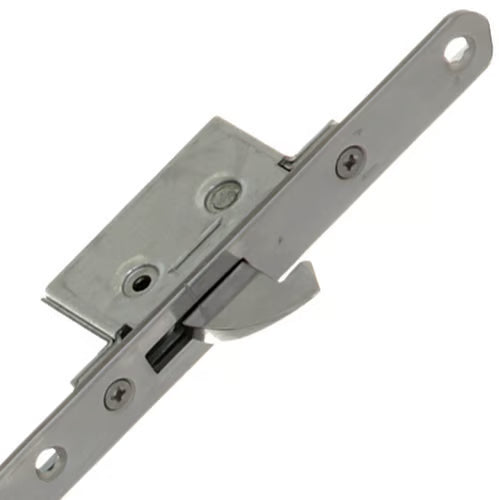

• Hooks: 3
• Latch: 1

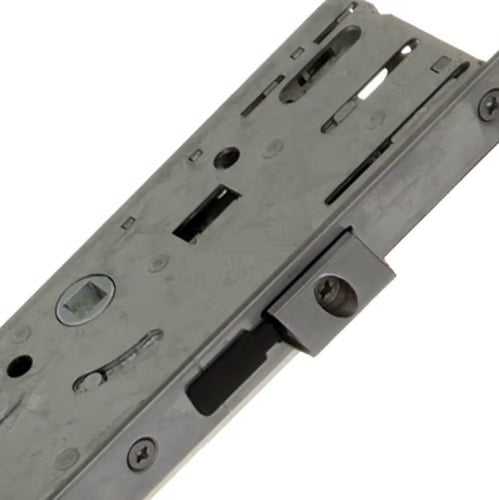

• Main Gearbox: Latch & hookbolt
• Operation: Selectable from drop-down options
• Spindle: Split 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1630mm
• Height: 1770mm
• Top Hook to Spindle: 806mm
• Bottom Hook to Spindle: 824mm
