YS170 Latch 3 Hooks 2 Rollers 16mm Square Faceplate Multipoint Door Lock - 2200mm

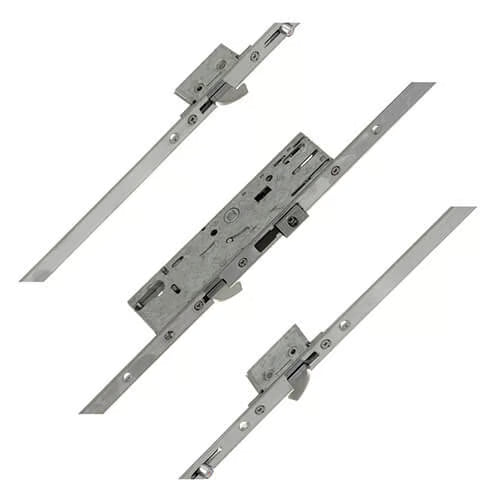

Yale YS170 Multipoint Door Lock

The Yale YS170 multipoint door lock is designed for enhanced security and ease of use. It features a robust configuration with 2 rollers, 3 hooks, and 1 latch, making it a reliable choice for residential and commercial applications.

Key Features:

• Central Hookbolt: The YS170 includes a central hookbolt that significantly increases security while allowing for an easily reversible latch.
• Distinctive Design: Each lock is stamped with the iconic Yale logo, ensuring authenticity. The lock has a 92mm PZ (centres) configuration, with the hook positioned below the latch, distinguishing it from the Yale G2000 model.
• Versatile Compatibility: We stock the most popular versions of the YS170, which can be adapted to meet specific requirements. If necessary, we can source the exact product needed.
• Gearbox Options: Available in 35mm or 45mm backsets, the YS170 gearboxes feature a split spindle mechanism, which can also function as a lift lever with a solid spindle.
• Dimensions: The gearboxes measure 217mm high plus backset +18mm. The latch and deadbolt both measure 28mm high, with a 53mm distance between the bottom of the latch and the top of the hook.
• Installation Details: Gearboxes are fitted to faceplates with three screw holes, with the top to middle screw hole measuring 110mm and the middle to bottom measuring 52mm.

Roller Functionality:

Rollers play a crucial role in compressing the door against the frame, helping to prevent dust and water ingress. While they do not significantly enhance security, they assist in maintaining the door's structural integrity by preventing warping. Rollers are adjustable by 1mm for optimal weather sealing.

Operation Instructions:

• To lock the door:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to lock the locking points and the main deadbolt (if applicable).
• To unlock the door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Corrosion Resistance: The Yale YS170 has been corrosion tested to BS EN 1670:2007 Grade 4 (240hrs. NSST), ensuring durability and longevity in various environments.

This multipoint lock is an excellent choice for those seeking a reliable and secure locking solution.
