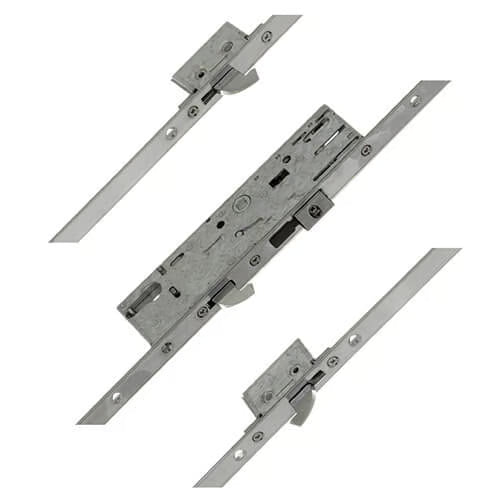

YS170 Latch 3 Hooks 20mm Square Faceplate Multipoint Door Lock - Option 2 (top hook to spindle = 806mm

Yale YS170 Multipoint Door Lock Overview

The Yale YS170 multipoint door lock is designed for enhanced security and ease of use, featuring a robust configuration of 3 hooks and 1 latch. This lock is part of Yale's renowned range, known for its reliability and adaptability to various door types.

Key Features:

• Identification: Easily recognizable by the distinctive Yale logo stamped on the lock.
• Configuration: 92mm PZ centres with a unique hook and latch bolt setup. The hook is positioned below the latch, differentiating it from the Yale G2000 model.
• Compatibility: While the YS170 is part of a broader range that includes brands like Millenco and Lockmaster, it's important to note that these locks, despite similar appearances, are not interchangeable.
• Gearbox Options: Available in 35mm or 45mm backsets, featuring a split spindle mechanism that can also function as a lift lever with a solid spindle.
• Dimensions:
  • Gearbox: 217mm high + backset + 18mm
  • Latch and deadbolt: 28mm high
  • Distance between latch and hook: 53mm (hook throws upwards)
• Installation: Gearboxes are fitted to faceplates with three screw holes, with specific measurements for easy installation.

Operation Instructions:

• To Lock:
  • Lift the handle upwards to engage the locking points.
  • Turn the key to lock the locking points and main deadbolt (if applicable).
• To Unlock:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Durability: The Yale YS170 has been corrosion tested to BS EN 1670:2007 Grade 4 (240 hours NSST), ensuring long-lasting performance.

Applications: This lock is versatile and can be used in various door types, including UPVC, aluminum, timber multipoint, and composite doors.

Product Specifications

• Manufacturer: Yale
• Centres PZ: 92mm
• Spindle Size: 8mm
• Hooks: 3
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Spindle: Split 8mm
• Handing: Non-handed
• Distance Between Inner Locking: 1630mm
• Height: 1836mm
• Top Hook to Spindle: 806mm
• Bottom Hook to Spindle: 824mm

Explore our range of associated products for the Yale YS170, including keeps, spindles, handles, and accessories, to ensure your door lock system is complete and secure.
