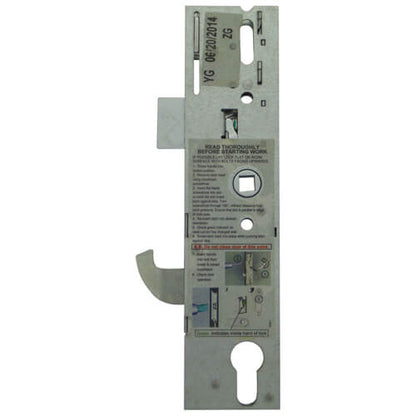

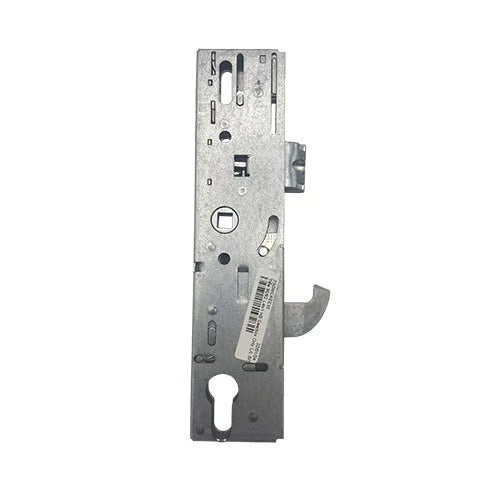

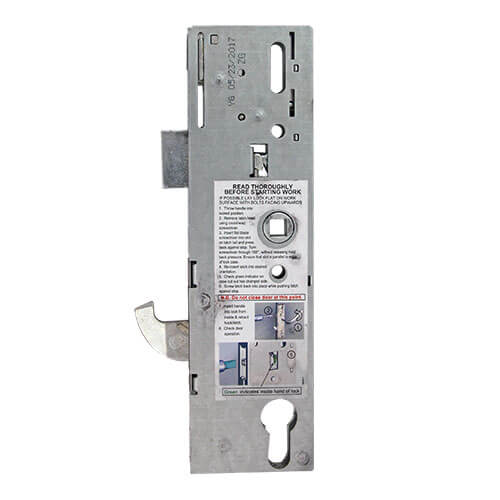

Product Overview: Yale YS170 Series Gearbox
The Yale YS170 series genuine gearbox is designed specifically for YS170 and Yale Doormaster multipoint locks, available in both 35mm and 45mm backsets. This robust lock system features a reliable latch and hook bolt mechanism, ensuring enhanced security for your doors.
Specifications:
-

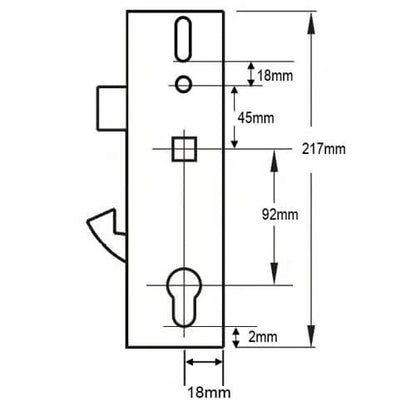

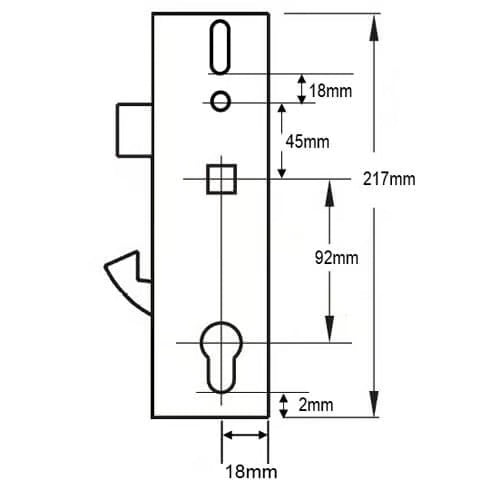

Dimensions:
- Gearbox: 217mm high x (backset + 18mm) wide
- Latch: 28mm high
- Distance from bottom of latch to top of hook: 52mm

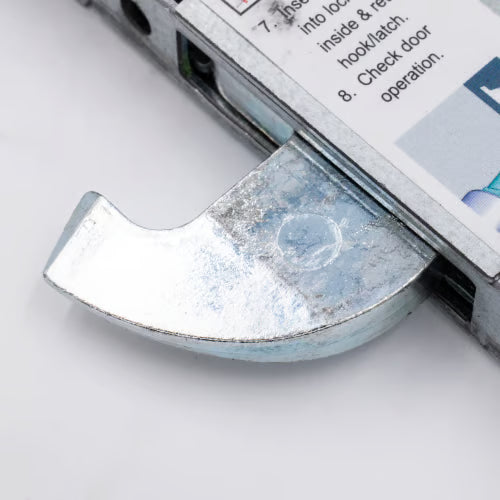

- Hook height: 28mm

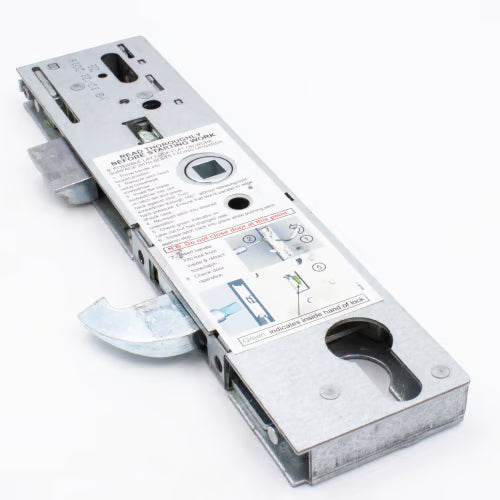

Latch Reversal Instructions: For ease of installation, the latch reversal instructions are conveniently printed on a sticker located on the side of the gearbox.
Associated Products: We offer a comprehensive range of products compatible with the Yale YS170 gearboxes, including:
- Multipoint door locks
- Keeps
- Spindles
- Handles
- Accessories
Operation: The lock operates via a lift lever or split spindle mechanism, providing a user-friendly experience while maintaining security.
Explore our selection to find the perfect components for your Yale YS170 locking system!
To enhance your understanding of the Yale YS170 Series Gearbox, here are some frequently asked questions that may assist you:
How do I measure the backset?
To measure the backset, you need to determine the distance from the edge of the door to the center of the keyhole. This measurement is crucial for ensuring that your lock fits properly.
How do I measure the centres?
The centres measurement refers to the distance between the center of the keyhole and the center of the handle. To measure this, simply measure from the center of the keyhole to the center of the handle hole.
What is the operation?
The Yale YS170 can be operated using either a lift lever or a split spindle nightlatch mechanism. The lift lever allows you to engage the locking points by lifting the handle, while the split spindle mechanism provides a more traditional locking experience.
If you have any more questions or need further assistance, feel free to reach out!
