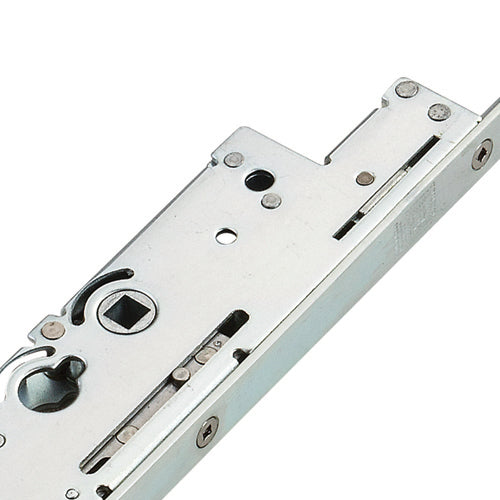

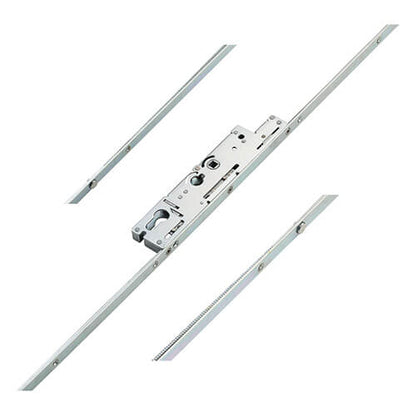

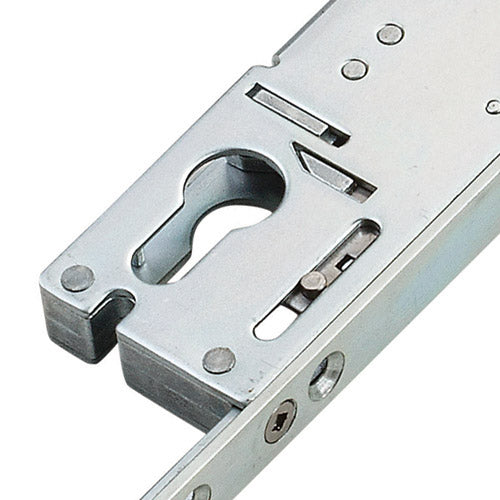

XL Lift Lever Passive Lock

Product Overview

The Fullex Passive multipoint door lock is designed specifically for the secondary door in a pair of French doors, ensuring enhanced security and functionality. This innovative lock features no locking points on its own, making it an ideal choice for passive doors.

Key Features

• Latest Security Technology: The XL model is Fullex's newest and most secure lock, providing peace of mind for homeowners.
• Shootbolt Attachments: This version includes attachments for top and bottom shootbolts, which work in tandem with the primary lock to secure the door effectively.
• Multipoint Locking System: When used alongside a primary multipoint door lock, the passive lock engages shoot bolts that secure the secondary door leaf to the frame, enhancing overall door security.

Operation Instructions

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

This Fullex Passive multipoint door lock combines ease of use with robust security features, making it a perfect addition to your French door setup.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Main Gearbox: Passive lock
• Spindle: Single 8mm
• Handing: Non handed
• Height: 1960mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure you select the correct specifications for your Fullex Passive multipoint door lock, here are some helpful measuring guidelines:

Backset Measurement:

1. Measure from the edge of the door to the center of the keyhole.
2. Ensure the door is closed for an accurate measurement.

Centres PZ Measurement:

1. Measure the distance from the center of the keyhole to the center of the handle hole.
2. This measurement is crucial for proper alignment and functionality.

Faceplate Measurement:

1. Measure the width and height of the existing faceplate on your door.
2. This will help you select the correct faceplate from the drop-down options.

By following these guidelines, you can ensure that your door lock installation is seamless and secure.
