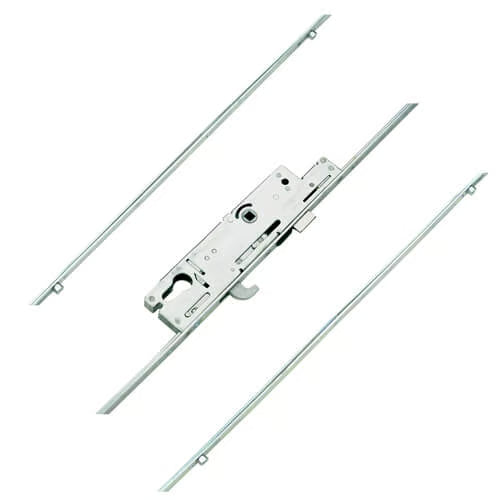

XL Latch Hook 4 Rollers Split Spindle Multipoint Door Lock

Product Overview: Fullex XL Multipoint Door Lock

The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes 4 rollers, 1 hook, and 1 latch. This lock is ideal for homeowners seeking enhanced protection for their properties.

Key Features:

• Security Design: The XL lock incorporates three hooks, two steel anti-lift pins, and the option for either two or four roller cams, ensuring a secure fit and smooth operation.
• Double Spindle Gearbox: Supplied with a double spindle gearbox, the XL can function as a double spindle nightlatch, providing versatility in locking mechanisms.
• Easy Identification: Identifying an XL lock is straightforward. The faceplate is stamped with the Fullex logo, and the unique cut-out in the top corner of the gearbox distinguishes it from other locks.
• Flexible Configuration: The XL range includes various locks with hooks, anti-lift pins, and rollers positioned differently relative to the spindle. Ensure accurate measurements against our product specifications for the correct fit.
• Extendable Design: Each XL lock is extendable at both the top and bottom, allowing for customization. When paired with Fullex high-security shoot bolts, the XL door system meets PAS24 requirements.

Specifications:

• Gearbox Dimensions: Available in 35mm and 45mm backsets, all gearboxes measure 227mm high plus the backset + 15mm. They attach to their strips with three equidistant screws, with the middle screw positioned 108mm from both the top and bottom.
• Hook Construction: The upward-throwing hook is made from Dacromet coated A3 sintered steel, measuring approximately 23mm high, while the chrome-plated A3 hardened cast steel hooks ensure durability.
• Roller Functionality: Rollers assist in compressing the door against the frame, preventing dust and water ingress, and help maintain the door's shape. They are adjustable by +/- 1mm for optimal weather sealing.

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if applicable) by turning the key.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Durability and Compliance:

• Corrosion Resistance: Rated BS EN 1670 Grade 4 for 240 hours, ensuring longevity in various environments.
• Cycle Operation: Tested for 200,000 operations, demonstrating reliability and endurance.
• Security Standards: Fullex XL hook locks meet Secured by Design requirements and are suitable for use on PAS24 compliant door sets.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Rollers: 4
• Hooks: 1
• Latch: 1
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 719mm
• Distance Between Outer Locking: 1409mm
• Height: 2200mm
• Top Roller to Spindle: 690mm
• Bottom Roller to Spindle: 719mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure a perfect fit for your Fullex XL multipoint door lock, follow these measuring guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle hole.
  • The standard measurement for PZ is either 92mm or 62mm.
• Faceplate Measurement:
  • Measure the width and length of the existing faceplate.
  • Ensure to check the thickness of the door to select the appropriate faceplate from the drop-down.

By following these guidelines, you can ensure that your Fullex XL lock is installed correctly and functions optimally.
