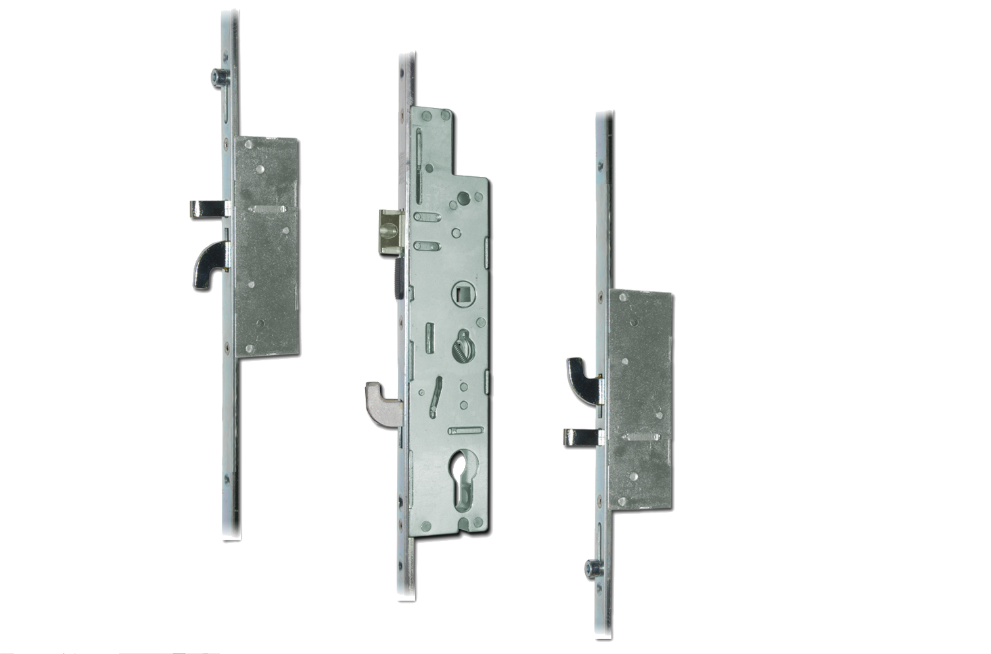

XL Lever Operated Latch & Hookbolt - 2 Hook, 2 Anti-Lift & 2 Roller

The FULLEX XL Lever Operated Latch & Hookbolt is designed for optimal security and functionality in UPVC door applications. With a robust construction featuring a 35mm backset, 92mm centres, and a case height of 228mm, this multipoint locking system is engineered to provide peace of mind.

The system boasts a central hook, two steel anti-lift bolts, and two roller cams, ensuring secure locking and effective door compression. The integrated snib on the faceplate allows for convenient latch holdback, enhancing usability.

Fullex XL locks are extendable at both the top and bottom, accommodating various door heights and configurations. When paired with high-security shootbolts, this locking system meets PAS24 security standards, making it suitable for both single and double door installations.

Accreditation

Fullex XL products are PAS24 compliant and Secured by Design accredited, ensuring they meet rigorous security standards.

Identification

Easily identifiable by the "FULLEX" logo and "XL" marking, the lock features a black, rounded plastic sliding plate beneath the latch for optional holdback functionality.

Gearbox Specifications

• Case Height: 228mm
• Case Width: 50mm
• Single Spindle Design

Additional Locking Points

The full-length strip includes:

• 2 anti-lift bolts
• 2 hooks
• 2 rollers

Shootbolts

Optional shootbolts can be fitted for enhanced security.

Faceplate Dimensions

• Width: 16mm
• Length: 2200mm

Locking Point Distances

• Distance A: 512mm
• Distance B: 541mm
• Distance C: 607mm
• Distance D: 636mm

Croppable Design

The full-length unit can be cropped to fit specific door heights.

Handing

The latch can be reversed for left or right-hand operation by simply adjusting the securing screw.

Sprung Mechanism

The gearbox features an internal spring mechanism for lever return, eliminating the need for additional sprung handles.

Operation

• Locking Method: Lift the lever to engage, then turn the cylinder one full turn to lock. To unlock, turn the key one full turn and push down on the lever.

Key Features

• Latch holdback snib on the faceplate
• Three opposing steel hooks and two anti-lift bolts for maximum security
• Compatible with one-piece or individual keep sets
• Roller cams for smooth operation
• Extendable for flexibility in installation

This comprehensive locking solution not only enhances security but also ensures reliable operation, making it an excellent choice for modern UPVC doors.
