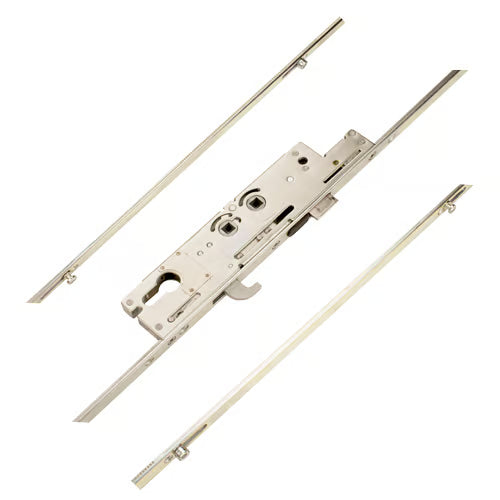

Versatile Configurations: Available in double, single, or split spindle gearbox options, allowing for various applications such as lift lever locks and nightlatches.
Key Features

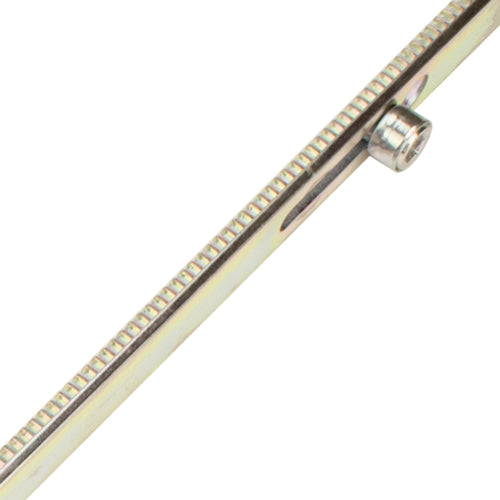

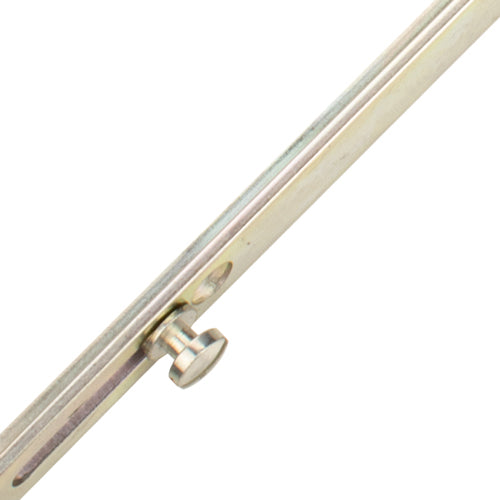

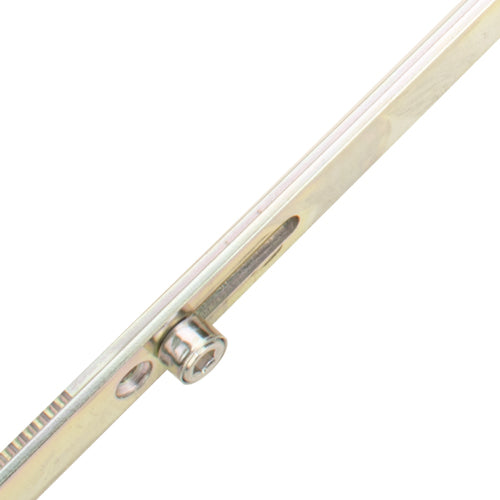

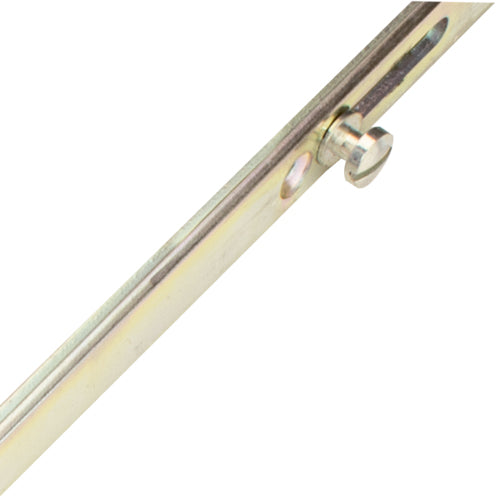

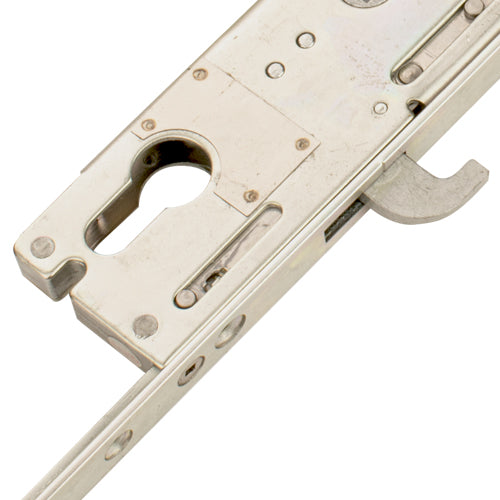

Security Design: Each XL lock incorporates three hooks, two steel anti-lift pins, and the choice of two or four roller cams for enhanced compression and smooth operation.
Identification: Easily identifiable by the Fullex logo stamped on the faceplate and a unique cut-out in the top corner of the gearbox.
Flexibility: All XL locks are extendable top and bottom, ensuring adaptability. When paired with Fullex high-security shoot bolts, they meet PAS24 standards.
Specifications

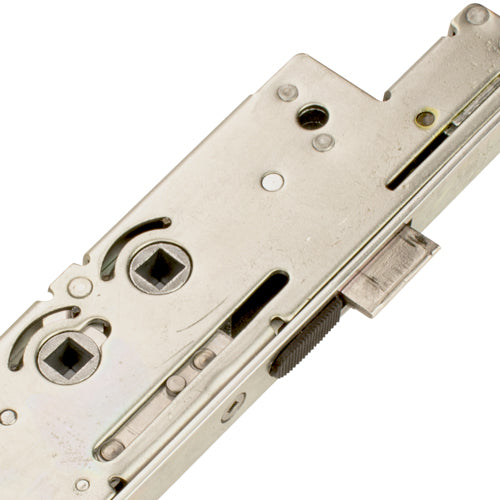

Gearbox Dimensions: Available in 35mm and 45mm backsets, measuring 227mm high plus the backset + 15mm.
Installation: Gearboxes attach with three equidistant screws, with the middle screw positioned 108mm from both the top and bottom.
Operation Instructions
To Lock the Door:
Close the door to automatically engage the latch.
Lift the handle to engage the locking points.
Turn the key to secure the system.
To Unlock the Door:
Turn the key to unlock the system.
Push the handle down to disengage the locking points.
A quarter turn of the key will retract the latch.
Corrosion Resistance and Durability
Corrosion Resistance: BS EN 1670 Grade 4 for 240 hours.
Cycle Operation: Tested for 200,000 operations, ensuring long-lasting performance.
