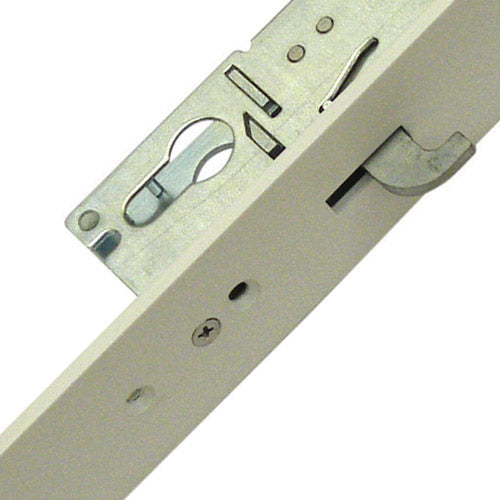

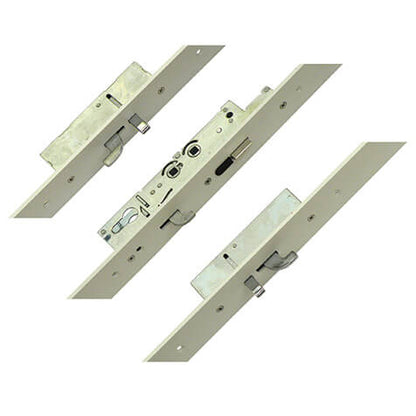

XL Latch 3 Hooks 2 Anti Lift Pins Flat 44mm White Faceplate Double Spindle Multipoint Door Lock

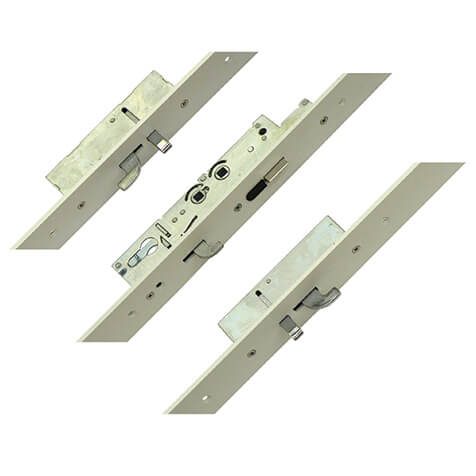

Fullex XL Multipoint Door Lock Overview

The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes:

• 3 Hooks
• 2 Pin Bolts
• 1 Latch
• 2 Anti Lift Bolts

Key Features

The XL lock series is designed with versatility in mind, available in various configurations:

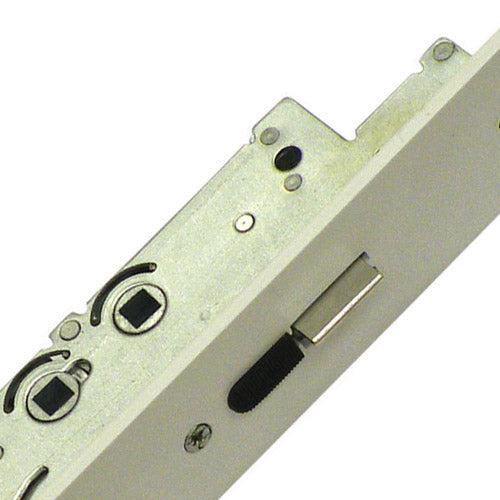

• Gearbox Options: Choose from double, single, or split spindle gearboxes, allowing for different locking mechanisms such as lift lever locks or nightlatches.
• Interchangeability: All locks share the same door preparation, making it easy to interchange locks without extensive modifications.
• Identification: Look for the Fullex logo stamped on the faceplate and a distinctive cut-out in the top corner of the gearbox for easy identification.

Specifications

• Dimensions: Gearboxes measure 227mm high plus the backset (35mm or 45mm).
• Screw Placement: Attaches with three equidistant screws; the middle screw is positioned 108mm from both the top and bottom screws.

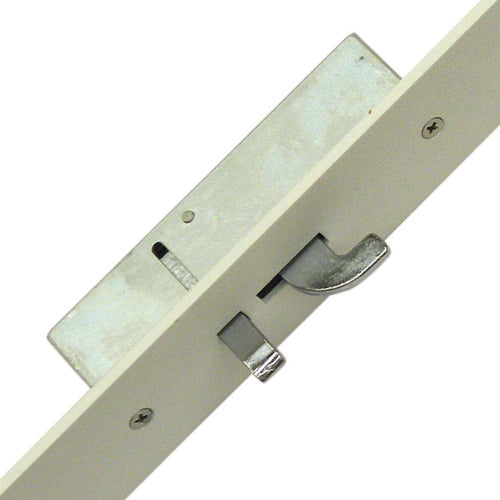

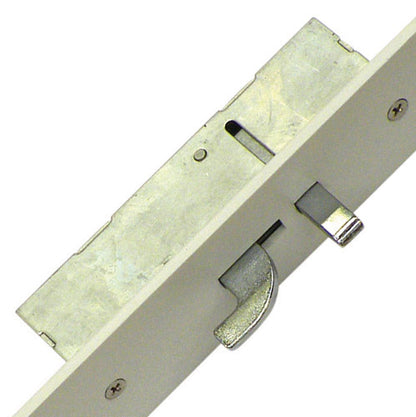

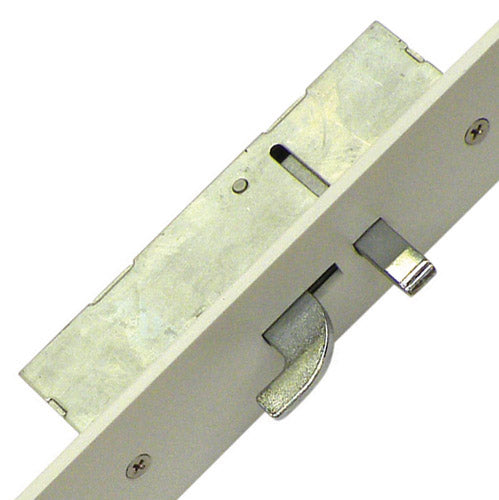

• Hook Design: The hooks are made from Dacromet coated A3 sintered steel, with the top hook throwing downwards and the bottom hook throwing upwards.

Operation Instructions

To Lock the Door:

1. Close the door to engage the latch automatically.
2. Lift the handle to engage all locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. Turn the key a quarter turn to retract the latch.

Durability and Compliance

• Corrosion Resistance: Rated BS EN 1670 Grade 4 for 240 hours.
• Cycle Tested: Endures up to 200,000 operations.
• Security Standards: Meets Secured by Design requirements and is suitable for PAS24 compliant door sets.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Hooks: 3
• Pin Bolts: 2
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1300mm
• Height: 2040mm
• Top Hook to Spindle: 650mm
• Bottom Hook to Spindle: 650mm
• Door Material: Aluminium, Composite

Measuring Guidelines

To ensure accurate measurements for your Fullex XL multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This distance is crucial for proper installation.

Centres PZ Measurement: For the PZ measurement, measure the distance between the center of the keyhole and the center of the handle hole. This ensures that both components align correctly for optimal operation.

Faceplate Measurement: To measure the faceplate, measure the width and length of the existing faceplate on your door. This will help you select the correct faceplate from the drop-down options.

By following these measurement guidelines, you can ensure that your Fullex XL multipoint door lock is installed correctly and functions smoothly.
