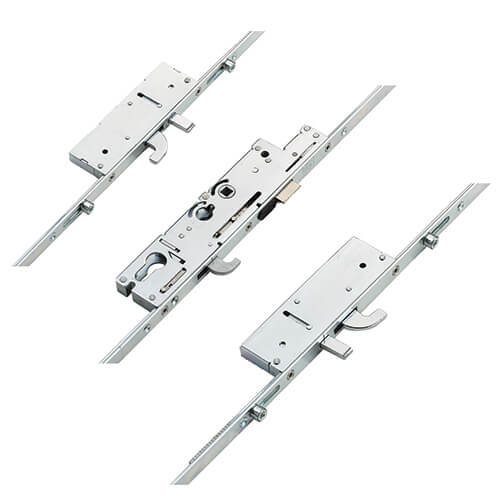

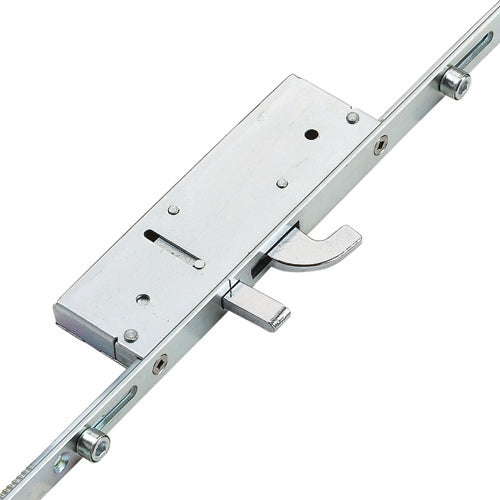

XL Latch 3 Hooks 2 Anti-Lift Pins 4 Rollers Multipoint Door Lock (top hook to spindle = 721mm)

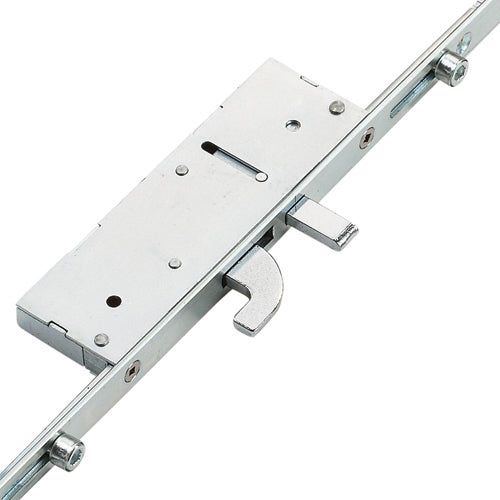

Product Overview: Fullex XL Multipoint Door Lock

The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes:

• 4 Rollers
• 3 Hooks
• 1 Latch
• 2 Anti Lift Bolts

Key Features:

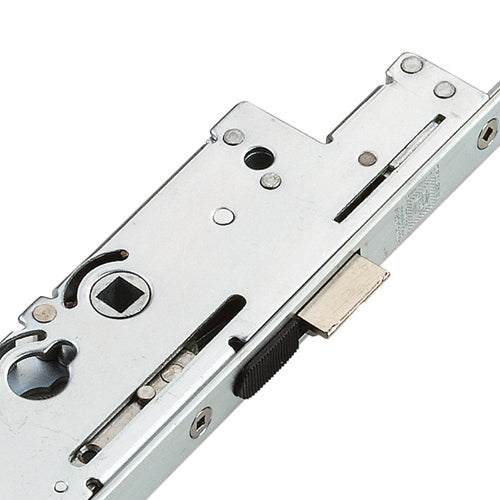

• Versatile Gearbox Options: Available in double, single, or split spindle configurations, the XL lock can function as a lift lever lock, double spindle nightlatch, or split spindle nightlatch, providing flexibility for various applications.

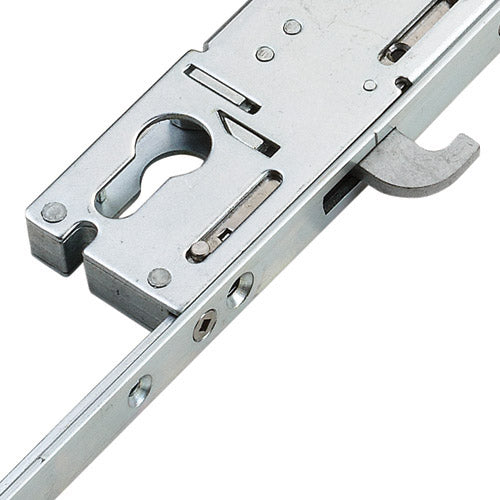

• Easy Identification: Look for the Fullex logo stamped on the faceplate. The unique cut-out in the top corner of the gearbox is a distinctive feature of the XL lock.
• Customizable Security: The XL range includes various locks with hooks, anti-lift pins, and rollers positioned differently relative to the spindle. Ensure you check your measurements against our product specifications for the correct fit.
• Extendable Design: Each XL lock can be extended top and bottom, enhancing flexibility. When paired with Fullex high-security shoot bolts, the XL door system meets PAS24 requirements.

Specifications:

• Gearbox Dimensions: Available in 35mm and 45mm backsets, all gearboxes measure 227mm high plus the backset + 15mm. They attach to strips with three equidistant screws, with the middle screw positioned 108mm from both the top and bottom.
• Durable Construction: The hooks are made from Dacromet coated A3 sintered steel, with a height of approximately 23mm. The top hook throws downwards, while the bottom hook throws upwards, each accompanied by an anti-lift pin.
• Roller Functionality: Rollers assist in compressing the door against the frame to prevent dust and water ingress, while also helping to maintain the door's shape. They are adjustable by +/- 1mm for optimal weather sealing.

Operation Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if applicable) by turning the key.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Corrosion Resistance:

• BS EN 1670 Grade 4 for 240 hours

Cycle Operation:

• Tested for 200,000 operations

Fullex XL hooks meet the requirements of Secured by Design and are suitable for use on PAS24 compliant door sets, ensuring peace of mind and enhanced security for your property.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Anti Lift Bolts: 2
• Main Gearbox: Latch & hookbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1290mm
• Distance Between Outer Locking: 1693mm
• Height: 2200mm
• Top Hook to Spindle: 721mm
• Bottom Hook to Spindle: 772mm
• Top Roller to Spindle: 821mm
• Bottom Roller to Spindle: 872mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

• How to Measure the Backset:
  • Measure from the edge of the door to the center of the keyhole.
  • Ensure the measurement is accurate to select the correct backset.
• How to Measure the Centres (PZ):
  • Measure the distance from the center of the keyhole to the center of the handle hole.
  • This measurement is crucial for ensuring proper alignment.
• How to Measure the Faceplate:
  • Measure the width and length of the existing faceplate.
  • This will help in selecting the right faceplate from the drop-down options.
• Operation:
  • The operation of the lock can vary based on the configuration selected. Please refer to the product manual for specific instructions related to your chosen operation type.
