XL Latch 3 Hooks 2 Anti-Lift Pins 4 Rollers Multipoint Door Lock (top hook to spindle = 630mm)

Fullex XL Multipoint Door Lock Overview

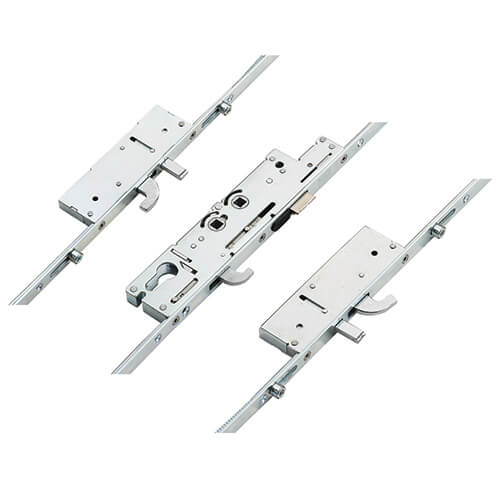

The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes 4 rollers, 3 hooks, 1 latch, and 2 anti-lift bolts. This lock is ideal for homeowners seeking enhanced protection for their properties.

Key Features:

• Security Design: The XL lock incorporates three hooks and two steel anti-lift pins, ensuring a secure closure. The option of two or four roller cams allows for smooth operation and effective compression.
• Versatile Configurations: Available in double, single, or split spindle gearbox options, the XL lock can function as a lift lever lock, double spindle nightlatch, or split spindle nightlatch. This versatility allows for easy interchangeability with consistent door prep.
• Identification: The Fullex logo is stamped on the faceplate, and a distinctive cut-out in the top corner of the gearbox helps identify the XL lock when removed from the door.
• Extendable Design: Each XL lock is extendable at both the top and bottom, providing flexibility. When paired with Fullex high-security shoot bolts, the XL system meets PAS24 requirements for enhanced security.

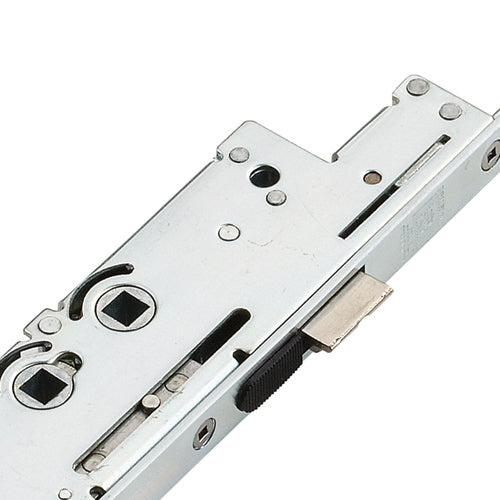

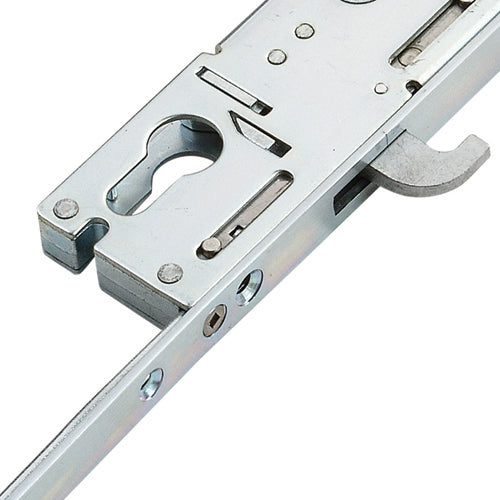

• Gearbox Specifications: Fullex XL gearboxes come in 35mm and 45mm backsets, with dimensions of 227mm high plus the backset. They attach to strips using three equidistant screws, ensuring stability and reliability.

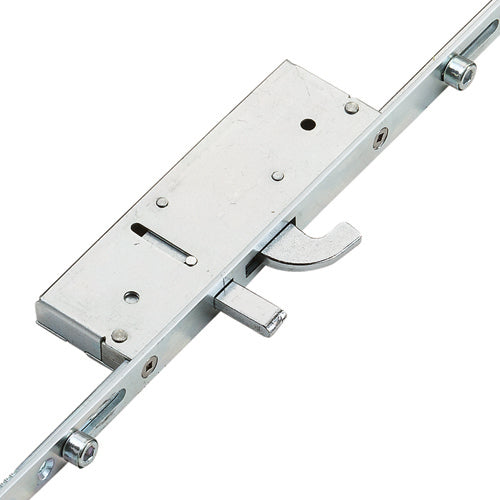

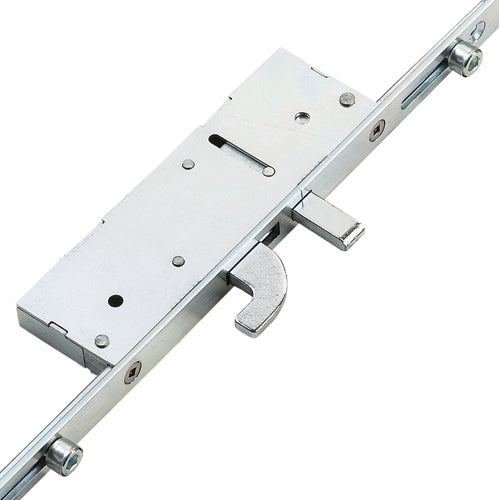

• Hook and Roller Functionality: The hooks are crafted from chrome-plated A3 hardened cast steel, with anti-lift pin bolts made from the same material. Rollers assist in compression, preventing dust and water ingress while supporting the door's structure.

Operation Instructions:

• To Lock the Door:
  • Close the door to automatically engage the latch.
  • Lift the handle to engage the locking points.
  • Turn the key to secure the system.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle down to disengage the locking points.
  • A quarter turn of the key will retract the latch.

Durability and Compliance:

• Corrosion Resistance: The lock meets BS EN 1670 Grade 4 standards for corrosion resistance, tested for 240 hours.
• Cycle Operation: The lock has been cycle tested for up to 200,000 operations, ensuring long-lasting performance.
• Security Standards: Fullex XL hook locks comply with Secured by Design standards and are suitable for use on PAS24 compliant door sets.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Rollers: 4
• Hooks: 3
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed

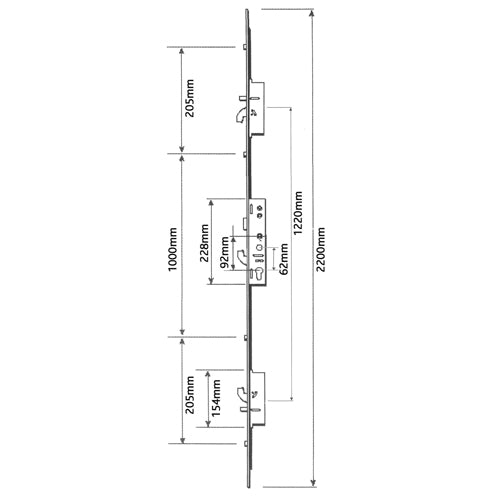

• Distance Between Inner Locking: 1000mm
• Distance Between Outer Locking: 1410mm
• Height: 2200mm
• Top Hook to Spindle: 630mm
• Bottom Hook to Spindle: 590mm
• Top Roller to Spindle: 715mm
• Bottom Roller to Spindle: 695mm
• Door Material: UPVC, Aluminium
