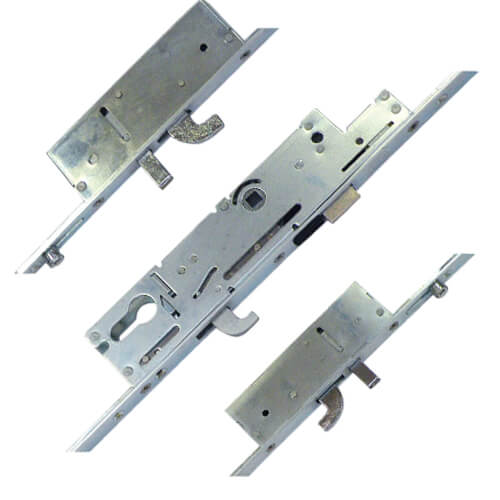

XL Latch 3 Hooks 2 Anti Lift Pins 2 Rollers Multipoint Door Lock - Option 2 (top hook to spindle = 660mm)

Product Overview: Fullex XL Multipoint Door Lock

The Fullex XL multipoint door lock is engineered for maximum security and reliability, featuring a robust design that includes:

• 2 Rollers
• 3 Hooks
• 1 Latch
• 2 Anti Lift Bolts

Key Features:

The XL lock series is designed to provide exceptional security with its unique configuration:

• Versatile Gearbox Options: Available in double, single, or split spindle configurations, allowing for various applications such as lift lever locks or nightlatches.
• Easy Identification: Look for the Fullex logo stamped on the faceplate and the distinctive cut-out in the top corner of the gearbox.
• Extendable Design: Each XL lock can be extended top and bottom, ensuring flexibility and adaptability to different door setups.
• High Security Standards: When paired with Fullex high-security shoot bolts, the XL door system meets PAS24 requirements, ensuring compliance with security standards.

Specifications:

• Gearbox Dimensions: Available in 35mm and 45mm backsets, measuring 227mm high plus the backset + 15mm.
• Hook Design: The hooks are made from Dacromet coated A3 sintered steel, with the top hook throwing downwards and the bottom hook throwing upwards.
• Roller Functionality: Rollers assist in compressing the door against the frame, enhancing weather sealing and preventing warping.

Operation Instructions:

To Lock the Door:

1. Close the door to automatically engage the latch.
2. Lift the handle to engage the locking points.
3. Turn the key to secure the system.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle down to disengage the locking points.
3. A quarter turn of the key will retract the latch.

Durability and Testing:

• Corrosion Resistance: Rated BS EN 1670 Grade 4 for 240 hours.
• Cycle Operation: Tested for 200,000 operations, ensuring long-lasting performance.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Rollers: 2
• Hooks: 3
• Latch: 1
• Anti Lift Bolts: 2
• Main Gearbox: Latch & hookbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1300mm
• Distance Between Outer Locking: 1510mm
• Height: 2200mm
• Top Hook to Spindle: 660mm
• Bottom Hook to Spindle: 640mm
• Top Roller to Spindle: 775mm
• Bottom Roller to Spindle: 735mm
• Door Material: UPVC, Aluminium

Measuring Instructions:

To ensure accurate measurements for your Fullex XL multipoint door lock, follow these guidelines:

Backset Measurement:

• Measure from the edge of the door to the center of the keyhole.
• This distance is your backset.

Centres PZ Measurement:

• Measure from the center of the keyhole to the center of the handle hole.
• This will give you the PZ measurement.

Faceplate Measurement:

• Measure the width and length of the existing faceplate.
• Ensure to account for any cutouts or notches in the door.

These measurements are crucial for selecting the correct components for your door lock installation, ensuring a perfect fit and optimal security.
