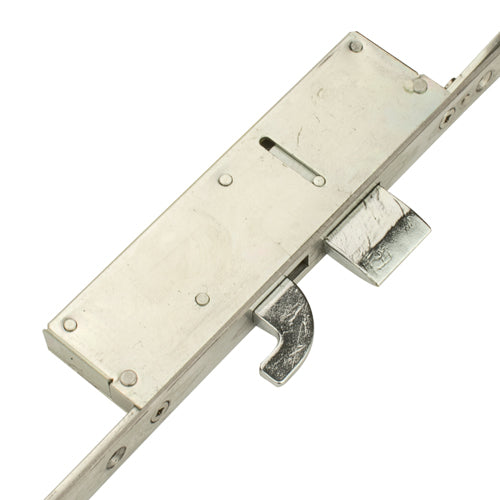

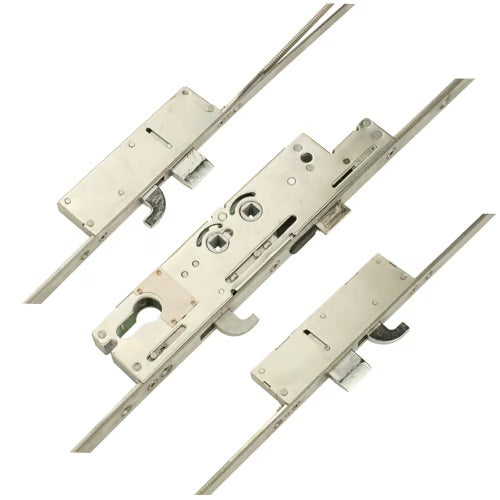

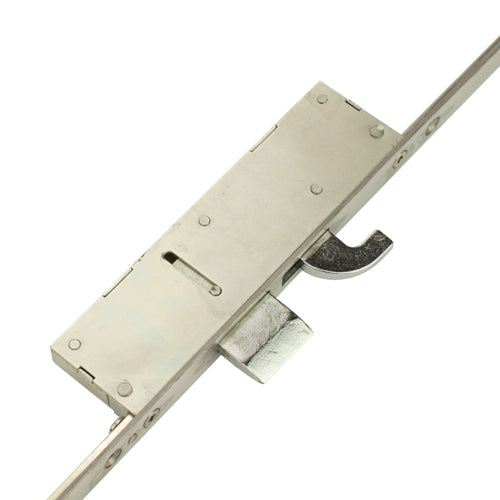

XL Latch 2 Deadbolts 3 Hooks Double Spindle Multipoint Door Lock

Product Overview: Fullex XL 2+2 Multipoint Door Lock

The Fullex XL 2+2 multipoint door lock is engineered for superior security and reliability, featuring a robust design that includes:

• 3 Hooks
• 2 Deadbolts
• 1 Latch

Key Features:

• Maximum Security: The XL 2+2 lock is designed to provide enhanced protection with its three hooks and two additional deadbolts strategically positioned next to the hooks.
• Versatile Use: Available exclusively in a double gearbox configuration, this lock can function as either a lift lever lock or a double spindle nightlatch, depending on your spindle usage.

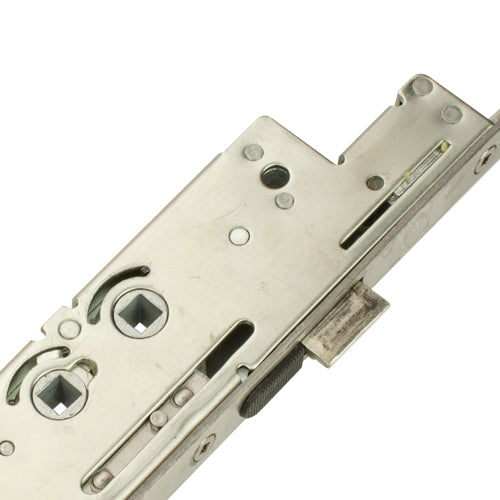

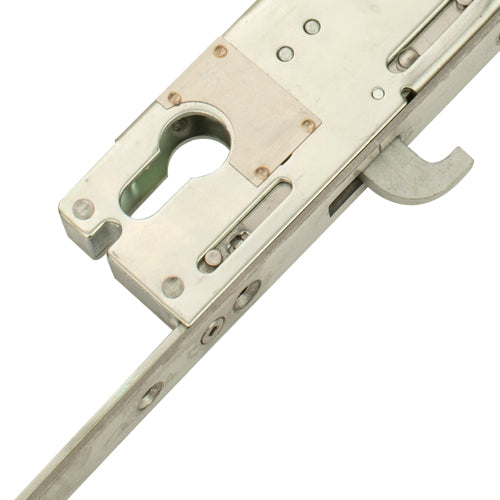

• Easy Identification: Identifying an XL lock is straightforward. Look for the Fullex logo stamped on the faceplate. Additionally, the top corner of the gearbox is uniquely cut out, distinguishing it from other locks.
• Diverse Range: The XL range includes various locks with hooks, anti-lift pins, and rollers, each designed for specific configurations. However, the 2+2 version is unique with its additional deadbolts.
• Extendable Design: Each XL lock is extendable at both the top and bottom, providing flexibility. When paired with Fullex high-security shoot bolts, the XL door system meets PAS24 standards for security.

Technical Specifications:

• Gearbox Dimensions: 227mm high, with a backset of +15mm.
• Screw Configuration: Attaches to strips with three equidistant screws; the middle screw is positioned 108mm from both the top and bottom screws.
• Hook Design: The upward-throwing hook is made from Dacromet coated A3 sintered steel, measuring approximately 23mm high.
• Snib Feature: The faceplate includes a snib to hold back the latch.

Operation Instructions:

• To Lock the Door:
  • Close the door to automatically engage the latch.
  • Lift the handle to engage the locking points.
  • Turn the key to secure the system.
• To Unlock the Door:
  • Turn the key to unlock the system.
  • Push the handle down to disengage the locking points.
  • A quarter turn of the key will retract the latch.

Durability and Testing:

• Corrosion Resistance: Rated BS EN 1670 Grade 4 for 240 hours.
• Cycle Operation: Tested for 200,000 operations, ensuring long-lasting performance.

The Fullex XL 2+2 multipoint door lock is a reliable choice for those seeking enhanced security and functionality in their locking systems.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Main Gearbox: Latch & deadbolt
• Spindle: Double 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1376mm
• Height: 2200mm
• Top Hook to Spindle: 673mm
• Bottom Hook to Spindle: 703mm
• Top Deadbolt to Spindle: 673mm
• Bottom Deadbolt to Spindle: 706mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Fullex XL 2+2 multipoint door lock, follow these guidelines:

Backset Measurement: To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper installation.

Centres PZ Measurement: For measuring the centres, you need to measure the distance between the center of the keyhole and the center of the handle hole. This is typically done by placing the tape measure at the center of one hole and extending it to the center of the other.

Faceplate Measurement: To measure the faceplate, you should measure the width and height of the existing faceplate on your door. This ensures that the new faceplate will fit perfectly without any gaps.

By following these measurement guidelines, you can ensure that your Fullex XL 2+2 multipoint door lock is installed correctly and functions optimally.
