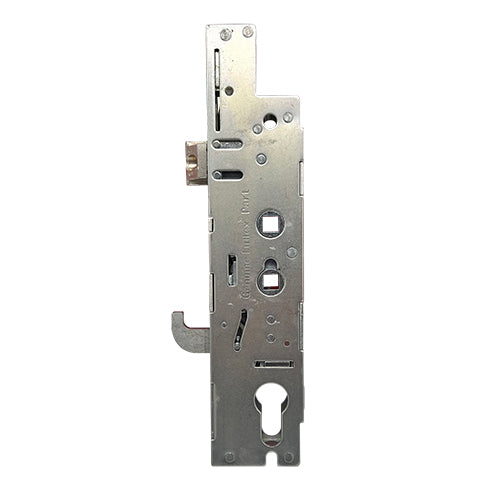

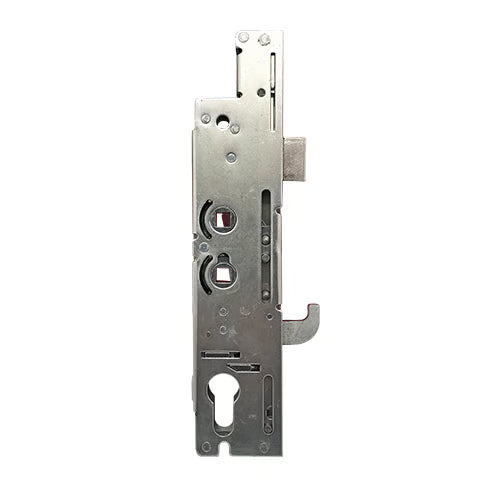

Vita XL gearboxes are designed for versatility and durability, available in both 35mm and 45mm backsets. They come in single, double, and split spindle configurations, maintaining consistent dimensions across all models. Each gearbox measures 227mm in height plus the backset measurement, with a secure attachment to the strips via three equidistant screws. Notably, the middle screw is positioned 108mm from both the top and bottom screws, ensuring stability.
These gearboxes are equipped with a hook that throws upwards, crafted from Dacromet coated A3 sintered steel, standing approximately 23mm high. Additionally, a snib on the faceplate allows for convenient latch retention.
Operation: Lift Lever or Double Spindle
Latch Reversal: To reverse the latch, simply undo the screw, remove the latch, reverse it, and reinsert before securing the screw again.
To Lock the Door:
Close the door to automatically engage the latch.
Lift the handle to engage the additional locking points.
Throw the deadbolt and secure the system by turning the key (note: on some brands, lifting the handle will automatically throw the deadbolt).
To Unlock the Door:
Turn the key to unlock the system.
Push the handle down to disengage the locking points.
A further quarter turn of the key will retract the latch.

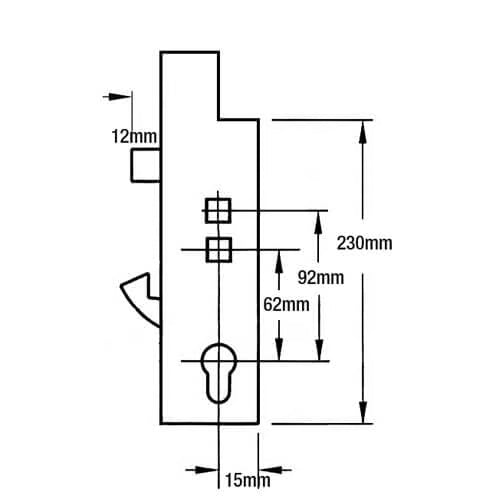

Product Specification
Manufacturer: Vita
Backset: 35mm or 45mm
Centres PZ: 92mm/62mm
Case Height: 230mm
Case Width: Backset + 15mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & Hookbolt
Spindle: Double 8mm
Operation: Lift Lever or Double Spindle Nightlatch
Packaging: Supplied in singles
For any further inquiries or assistance with measurements, please feel free to reach out!
