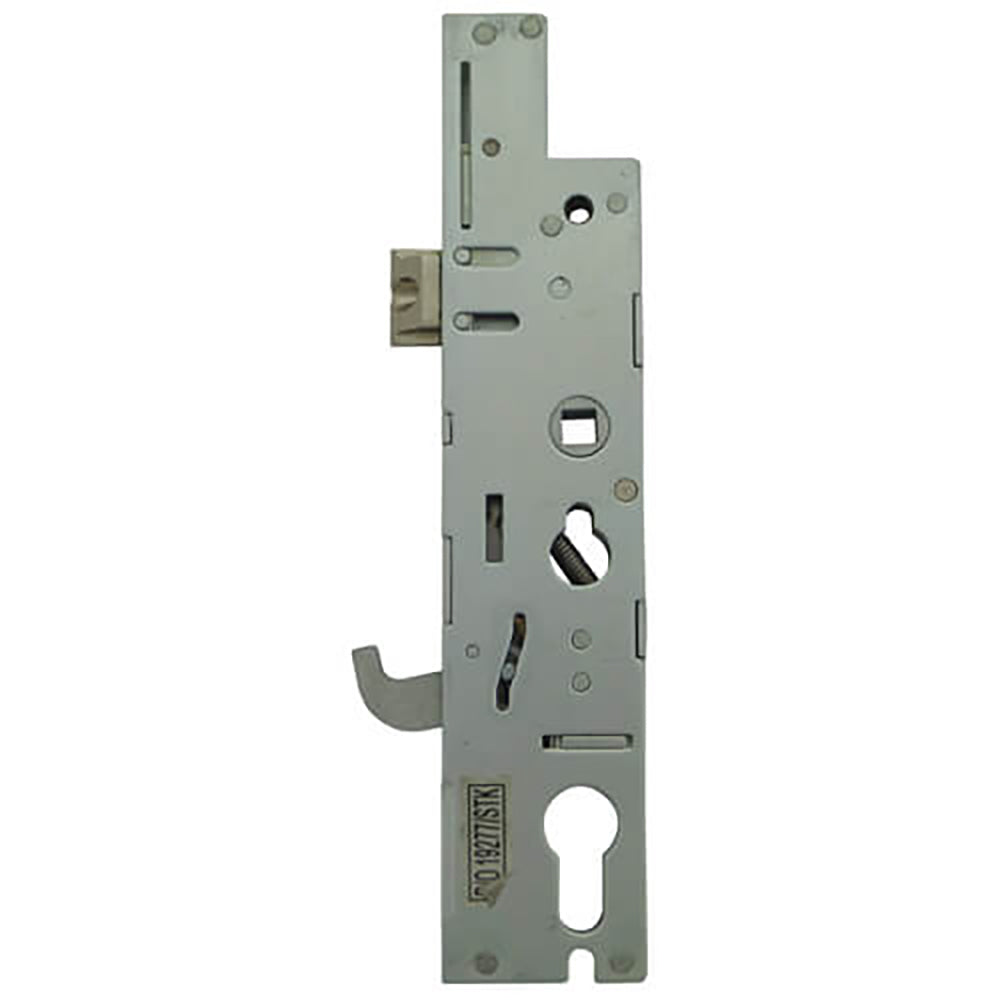

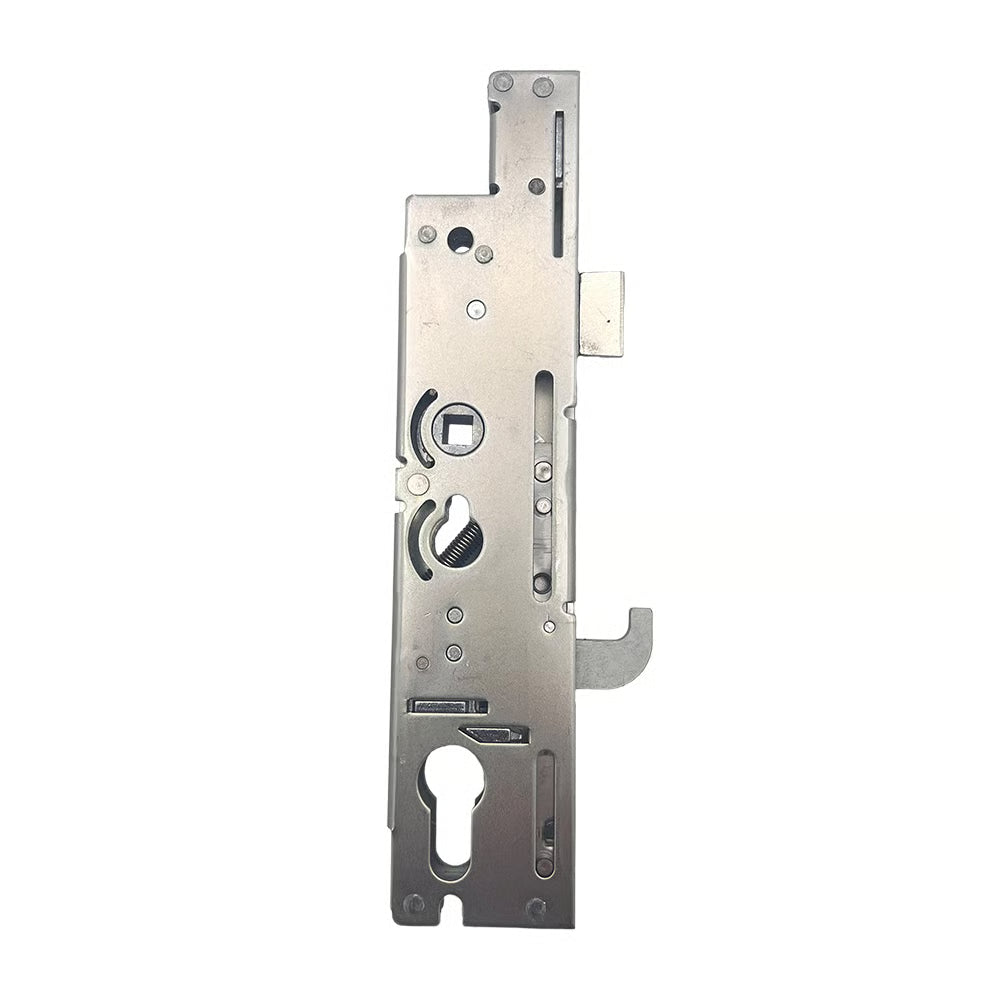

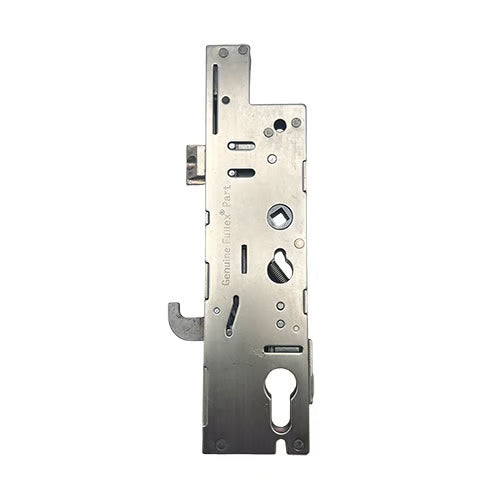

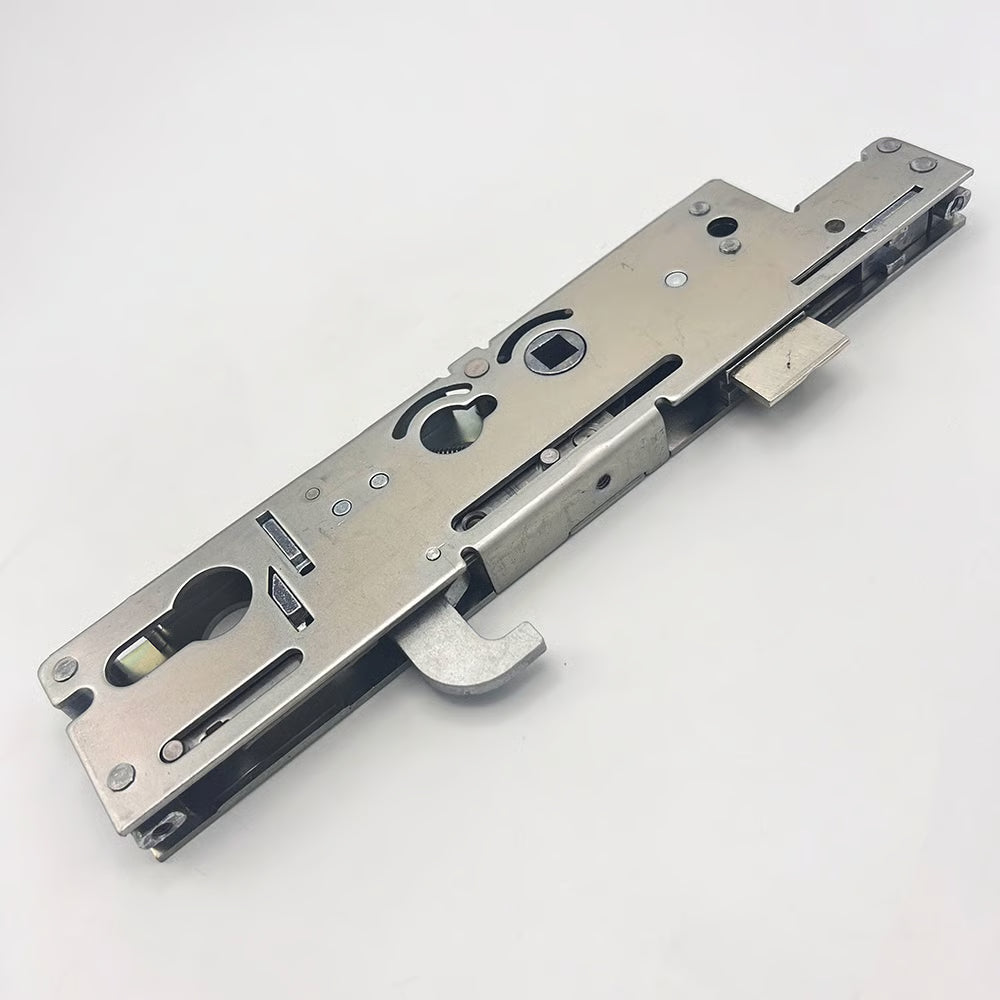

XL Genuine Multipoint Gearbox - Lift Lever

Product Overview: Fullex XL Gearboxes

Fullex XL gearboxes are designed for versatility and security, available in both 35mm and 45mm backsets. They come in single, double, and split spindle configurations, maintaining consistent dimensions across all models. Each gearbox measures 227mm in height, with an additional 15mm added to the backset.

Key Features:

• Mounting: The gearboxes attach securely to their strips using three equidistant screws. The middle screw is positioned 108mm from both the top and bottom screws, ensuring stability and ease of installation.

• Hook Mechanism: Each gearbox is equipped with a hook that throws upwards, crafted from Dacromet coated A3 sintered steel, measuring approximately 23mm in height for enhanced durability.

• Snib Feature: A convenient snib on the faceplate allows users to hold back the latch, providing added flexibility in operation.

Associated Products:

We offer a comprehensive range of products compatible with Fullex XL gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Double Spindle Versions:

For those requiring double spindle configurations, we provide models FULXLCASE35 and FULXLCASE45.

Locking and Unlocking Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Operation: Lift Lever

Latch Reversal:

To reverse the latch, simply undo the screw in the latch to remove it. Reverse the latch, reinsert it, and replace the screw for proper functionality.

Explore our range of Fullex XL gearboxes and associated products to enhance your door security solutions!

Product Specification

Manufacturer: Fullex

Backset: 35mm or 45mm - How do I measure the backset?
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the keyhole or cylinder. This measurement will give you the backset size needed for your gearbox.

Centres PZ: 92mm - How do I measure the centres?
To measure the centres (PZ), measure the distance from the center of the keyhole to the center of the handle spindle hole. This ensures that your lock and handle align correctly for optimal operation.

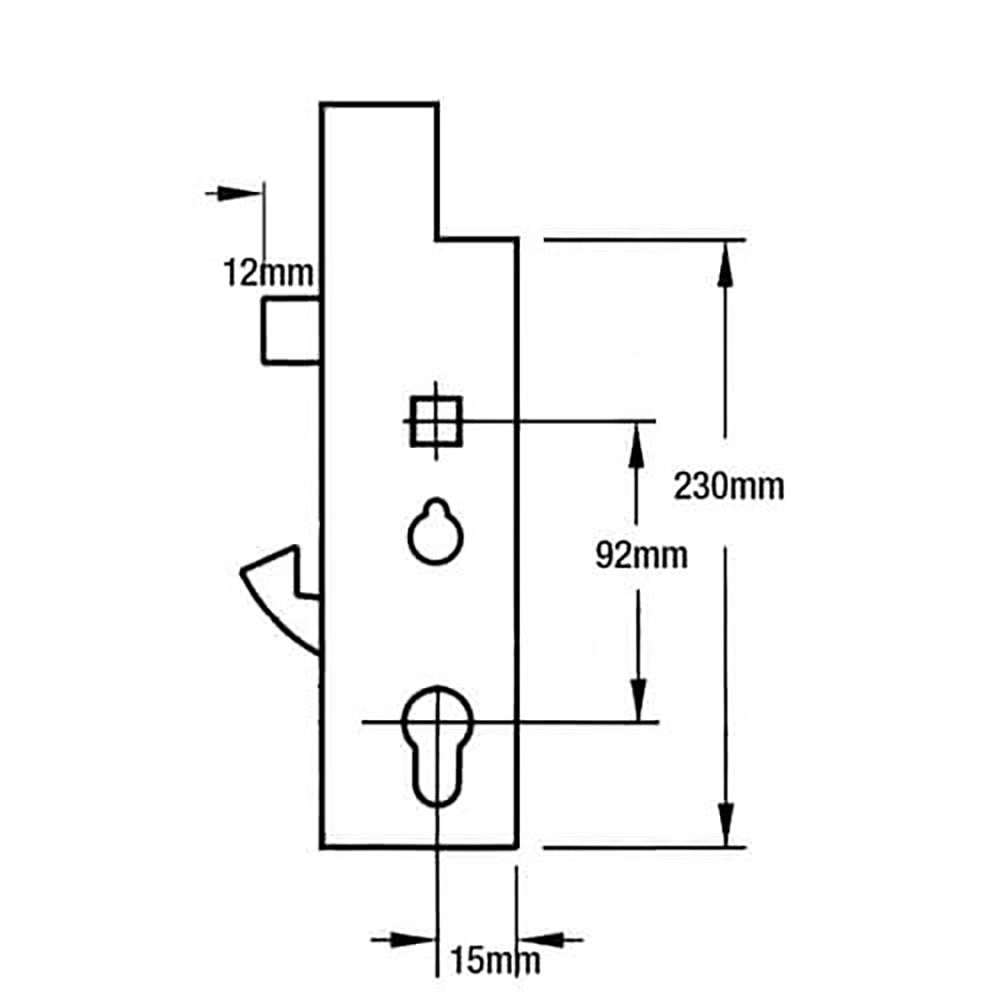

Case Height: 230mm

Case Width: Backset + 15mm

Copy/Genuine: Genuine

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & hookbolt

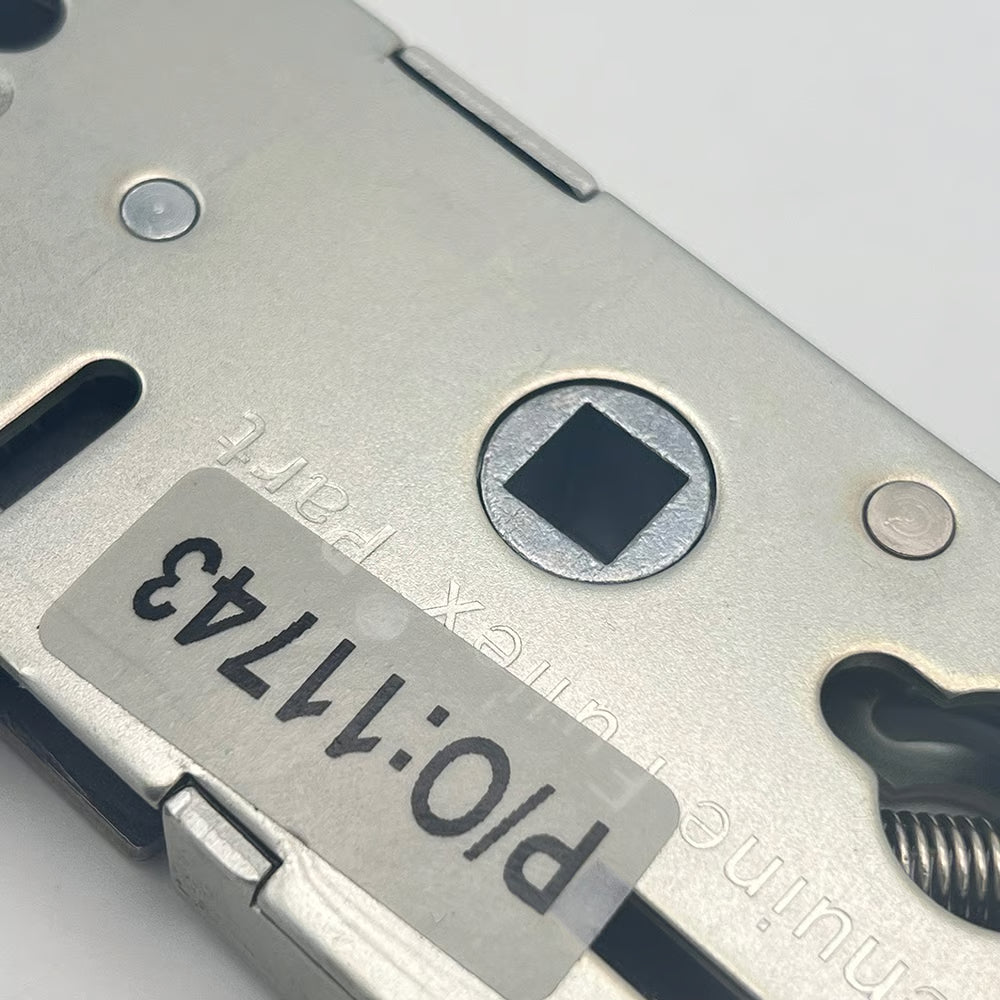

Spindle: Single 8mm

Operation: Lift Lever - What is the operation?
The lift lever operation means that to engage the locking mechanism, you need to lift the handle upwards. This action activates the locking points, securing the door in place.

Packaging: Supplied in singles
