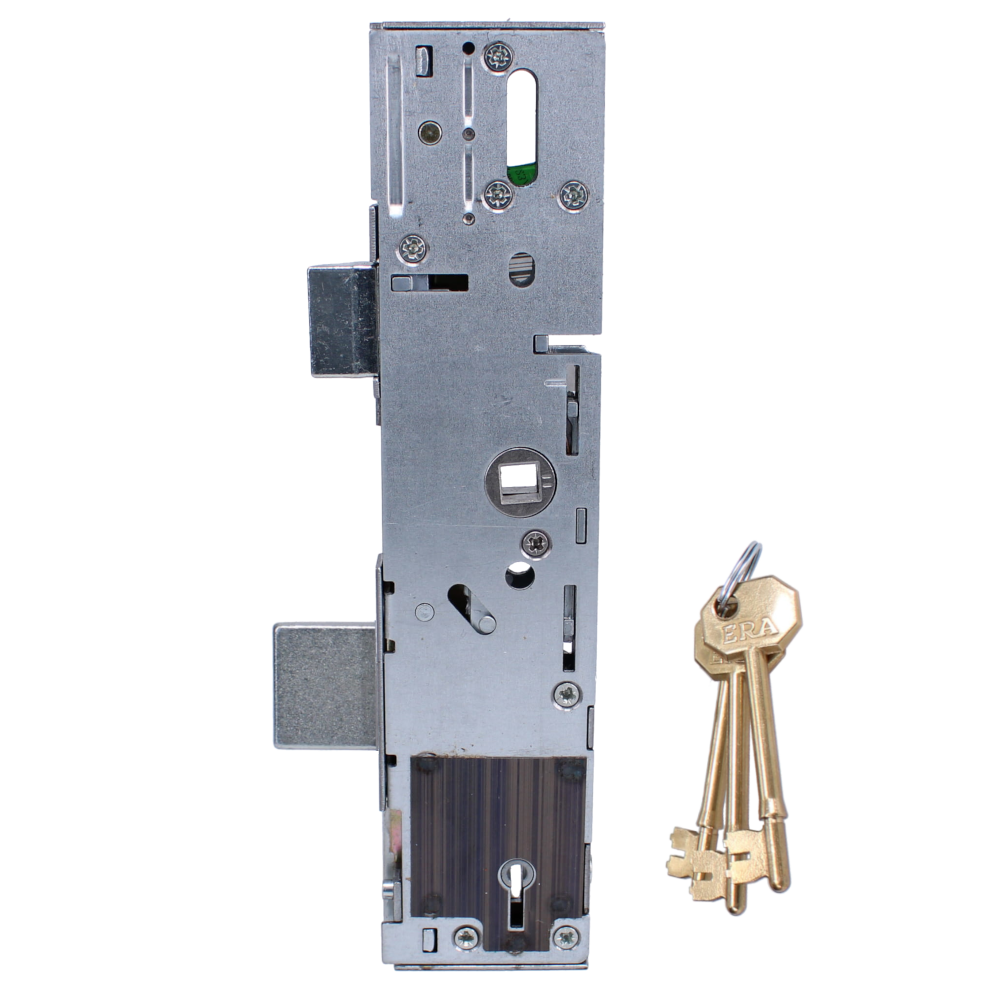

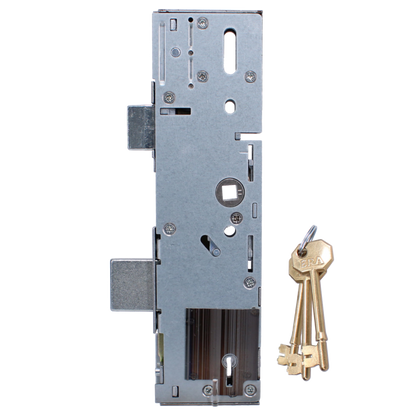

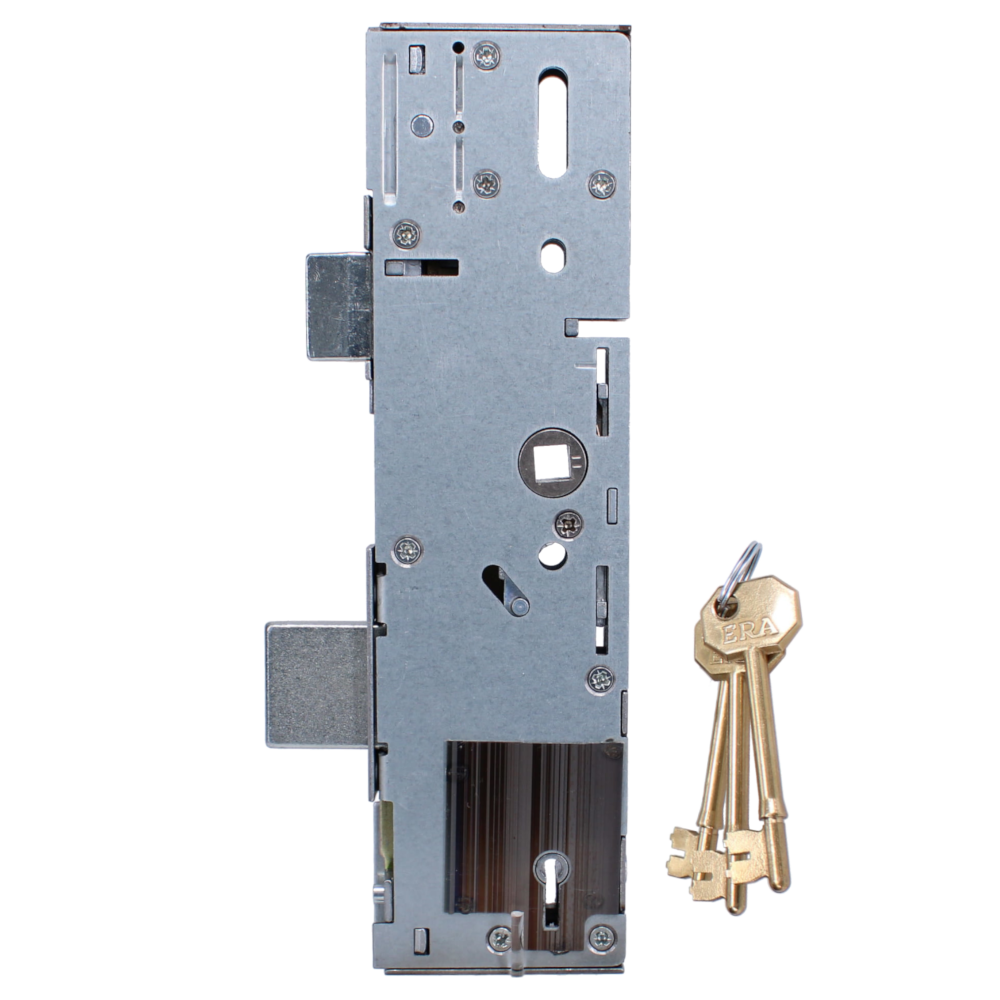

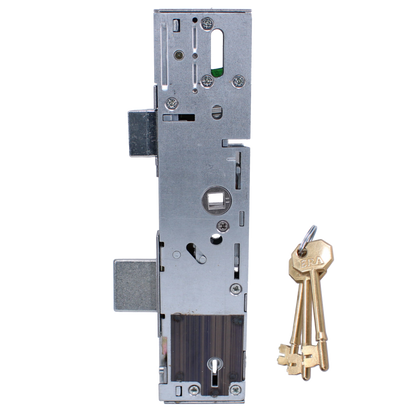

Vectis Lever Operated Latch & Deadbolt Split Spindle - Centre Case

The ERA Vectis Lever Operated Latch & Deadbolt Split Spindle Centre Case is designed for versatility and security, making it an ideal choice for various door applications. With options for a 35mm or 45mm backset and 95mm centres, this split spindle centre case ensures compatibility with a wide range of door types.

The next generation, ERA Vectis Plus, enhances security with its innovative cylinder-free multipoint locking system, utilizing traditional lever technology found in mortice locks. This advancement not only simplifies the locking mechanism but also improves overall safety.

Identification

• Features a mortice keyhole instead of a cylinder cut-out, providing a more secure locking option.

Handing

• The latch is easily reversible. Simply remove the screws, flip the latch to the opposite hand, and reattach the screws for seamless installation.

Operation

• Locking Method:
  • To lock, lift the lever to engage the locking mechanisms, then turn the key one full turn.
  • To unlock, turn the key one full turn and push the lever down.

Notes

• Operated using a Vectis mortice blank, eliminating the need for a cylinder cut-out in the centre case.

Features

• Suitable for both left and right-handed doors.
• Comes with 3 mortice keys for convenience.
• Can be suited to the ERA Viscount range of mortice locks for added flexibility.
• Central brass deadbolt throws 22mm, effectively preventing unauthorized entry.
• Compatible with lever/lever or lever/pad handles, allowing for customization based on user preference.

This comprehensive locking solution combines traditional design with modern security features, making it a reliable choice for any door installation.
