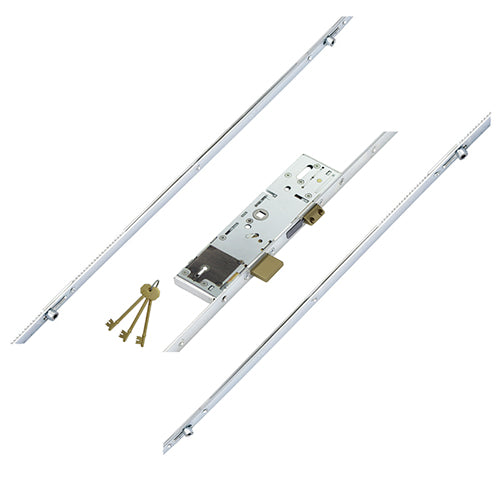

Vectis Latch Deadbolt 4 Rollers Split Spindle Multipoint Door Lock

Product Overview: ERA Vectis Deadbolt Multipoint Door Lock

The ERA Vectis Deadbolt multipoint door lock is engineered for security and convenience, featuring a robust design that includes 4 rollers, 1 deadbolt, and 1 latch. This lock is ideal for enhancing the safety of your doors while ensuring ease of use.

Key Features:

• Multipoint Locking System: The lock incorporates a latch, deadbolt, and 4 rollers, providing comprehensive security.
• Identification Tips: Identifying an ERA Vectis lock can be straightforward. Look for the 5 lever mortice lock key or a UK keyhole. The holdback snib color can also indicate the brand—grey for deadbolt and hook bolt locks, blue for Vectis locks.
• Historical Context: Some ERA locks may be referred to as Saracen, a nod to their origins in the double glazing industry.
• Split Spindle Mechanism: This feature simplifies replacements, focusing on one locking function.
• Compatibility: ERA Vectis locks share levers with the British Standard ERA Fortress mortice lock, allowing for key-alike options with timber doors.

Installation and Measurements:

• Gearbox Design: The distinctive square design of the ERA Vectis gearbox, measuring 221mm in length, is a key identifier. The width is the backset plus 18mm.
• Backset Options: Available in 35mm or 45mm backsets, with all gearboxes maintaining the same dimensions.
• Screw Measurements: Gearboxes are secured with 4 screws, with specific measurements between each screw hole for accurate installation.

Operation Instructions:

• Locking the Door:
  • Lift the handle to engage the locking points.
  • Turn the key to secure the locking points and main deadbolt.
• Unlocking the Door:
  • Turn the key to unlock.
  • Push the handle down to disengage the locking points and retract the latch.

Performance Standards:

• Corrosion Resistance: Meets BS EN 1670:2007 Grade 4 standards (240 hours).
• Endurance Testing: Designed to withstand 50,000 cycles, ensuring long-lasting performance.
• Security Compliance: Built to meet PAS24:2012 requirements for enhanced security.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 670mm
• Distance Between Outer Locking: 1610mm
• Height: 2250mm
• Top Roller to Spindle: 730mm
• Bottom Roller to Spindle: 880mm
• Door Material: UPVC, Aluminium

Measuring Guidelines

To ensure accurate measurements for your ERA Vectis Deadbolt multipoint door lock, follow these guidelines:

Backset Measurement
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the keyhole. This will give you the backset size needed for your lock.

Centres PZ Measurement
For the PZ measurement, measure from the center of the keyhole to the center of the handle hole. This is crucial for ensuring that the lock aligns properly with your door hardware.

Faceplate Measurement
To measure the faceplate, you will need to measure the width and height of the existing faceplate on your door. This ensures that the new faceplate will fit seamlessly into the door frame.

Operation
The operation of the lock can vary based on the specific model. Ensure to select the correct operation type from the drop-down menu based on your door's requirements.

By following these measurement guidelines, you can ensure a perfect fit for your ERA Vectis Deadbolt multipoint door lock, enhancing both security and functionality.
