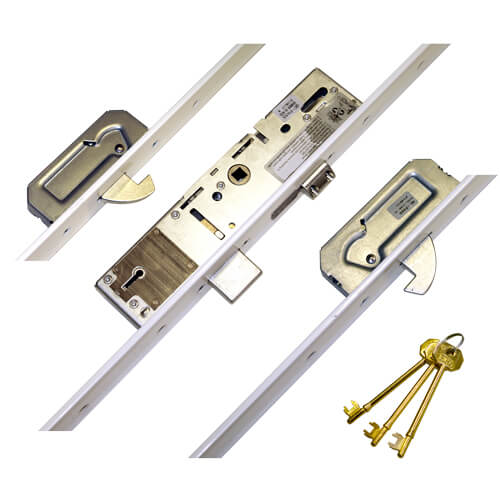

Vectis Latch Deadbolt 2 Hooks Split Spindle Flat 44mm White Faceplate Multipoint Door Lock

Product Overview: ERA Vectis Deadbolt Multipoint Door Lock

The ERA Vectis Deadbolt multipoint door lock is engineered for security and convenience, featuring a robust design with 2 hooks, 1 deadbolt, and 1 latch. This lock is versatile and can be identified by various branding, including Homesafe, Surelock, Saracen, Spartan, Duraflex, Supa, Westward, or Cego.

Key Features:

• Compatibility: Designed to replace GU, Lockmaster, and Winkhaus locks without requiring new routing positions.
• Identification: Look for a 5 lever mortice lock key or a UK keyhole to confirm it’s an ERA Vectis. The holdback snib color can also be a clue—grey for deadbolt and hook bolt locks, blue for Vectis locks, though some brands may vary.
• Mechanism: All ERA Vectis locks utilize a split spindle mechanism, simplifying replacements by focusing on one locking function.
• Lever Compatibility: The same levers as the British Standard ERA Fortress mortice lock allow for keying alike with traditional timber doors.

Installation and Measurement:

• Gearbox Design: Distinctive square design with no corner cutouts, measuring 221mm in length and a width based on the backset plus 18mm.
• Backset Options: Available in 35mm or 45mm backsets, with all gearboxes sharing the same dimensions.
• Latch and Deadbolt Specs: Features a 24mm high latch and a 30mm high deadbolt, with specific screw hole measurements for installation.

Locking Mechanism:

• Operation:
  • To lock, lift the handle to engage locking points and turn the key.
  • To unlock, turn the key and push the handle down to disengage.
• Security Features:
  • Two hook locking arrangements: a standard hook for tight spaces and a larger security steel hook for enhanced protection.
  • Bi-directional hooks for added security.

Durability and Compliance:

• Corrosion Resistance: Meets BS EN 1670:2007 Grade 4 standards (240 hours).
• Endurance Testing: Designed to withstand 50,000 cycles and compliant with PAS24:2012 standards.

Additional Products:

We offer a range of associated products for the ERA Vectis Deadbolt multipoint door locks, including keeps, spindles, handles, and accessories to ensure a complete solution for your locking needs.

Latch Reversal Instructions:

To reverse the latch, simply undo the screws, remove the latch, reverse it, and reinsert before replacing the screws.

Product Specification

• Manufacturer: ERA
• Spindle Size: 8mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1395mm
• Height: 2090mm
• Top Hook to Spindle: 728mm
• Bottom Hook to Spindle: 667mm
• Door Material: Timber, Composite

Measuring Guidelines:

Backset Measurement:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset measurement needed for proper fitting.

Centres Measurement:
For the centres (PZ), measure the distance from the center of the keyhole to the center of the handle hole. This ensures that both components align correctly for smooth operation.

Faceplate Measurement:
To measure the faceplate, measure the width and height of the existing faceplate on your door. This will help you select the correct size from the drop-down options.

Operation Details:
The operation of the lock refers to how it functions when locking and unlocking. Ensure to select the appropriate option from the drop-down based on your specific requirements.

For any additional questions or further assistance, feel free to reach out!
