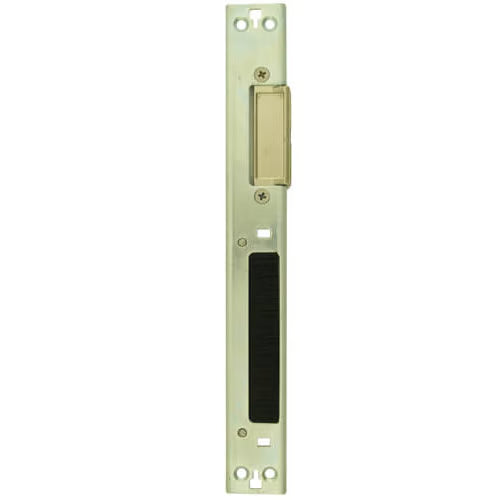

Introducing the Avocet latch and deadbolt centre keep, designed to enhance the security and functionality of your multipoint locks. This versatile product is available in both left and right options, ensuring a perfect fit for your specific door configuration.
Handing Charts
To determine the correct handing for your installation, refer to the following charts based on your perspective:

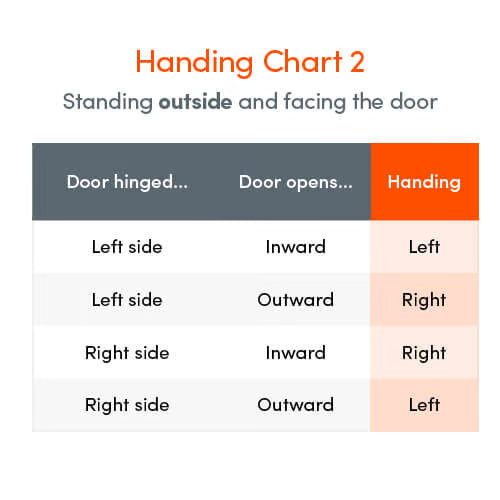

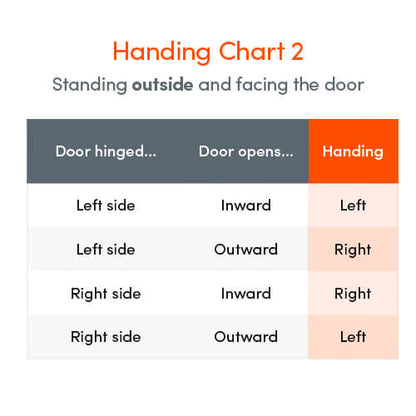

Standing Outside, Looking at the Door
Door Hinged
Door Opens
Handing
Left
Inward
Left
Right
Outward
Left
Left
Outward
Right
Right
Inward
Right
Standing Inside, Looking at the Door
Door Hinged
Door Opens
Handing
Right
Inward
Left
Left
Outward
Left
Right
Outward
Right
Left
Inward
Right
Product Specifications
Type: Latch and deadbolt strike
Length: 243mm
Width: 28mm
Depth: 6mm
Fixing Centres: 222mm (top to bottom)
Distance Between Latch and Deadbolt: 32mm
Size of Latch Receiver: 50mm x 15mm
Size of Deadbolt Receiver: 83mm x 15mm
Ensure you select the correct handing option for optimal performance and security.
