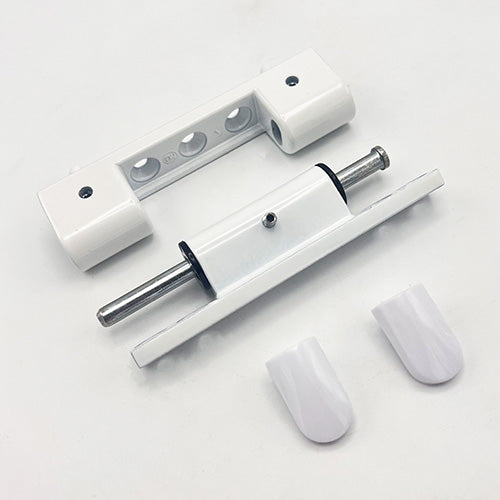

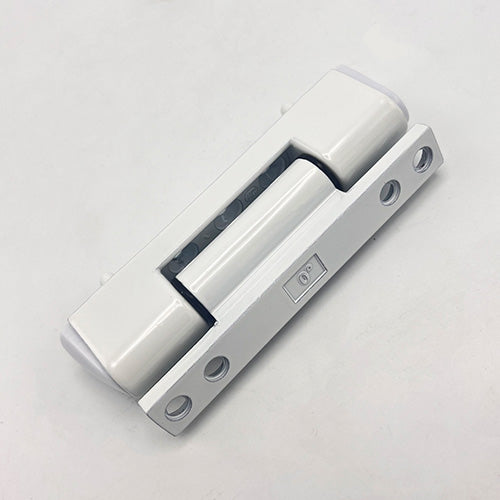

UPVC Butt Hinge 112mm

At TSS, we believe that quality doesn't have to come with a high price tag. Our commitment to providing high-quality products to the trade means you can trust that our offerings meet all necessary specification requirements without breaking the bank.

We manufacture our products to the highest standards, ensuring they are a significant improvement over your current choices.

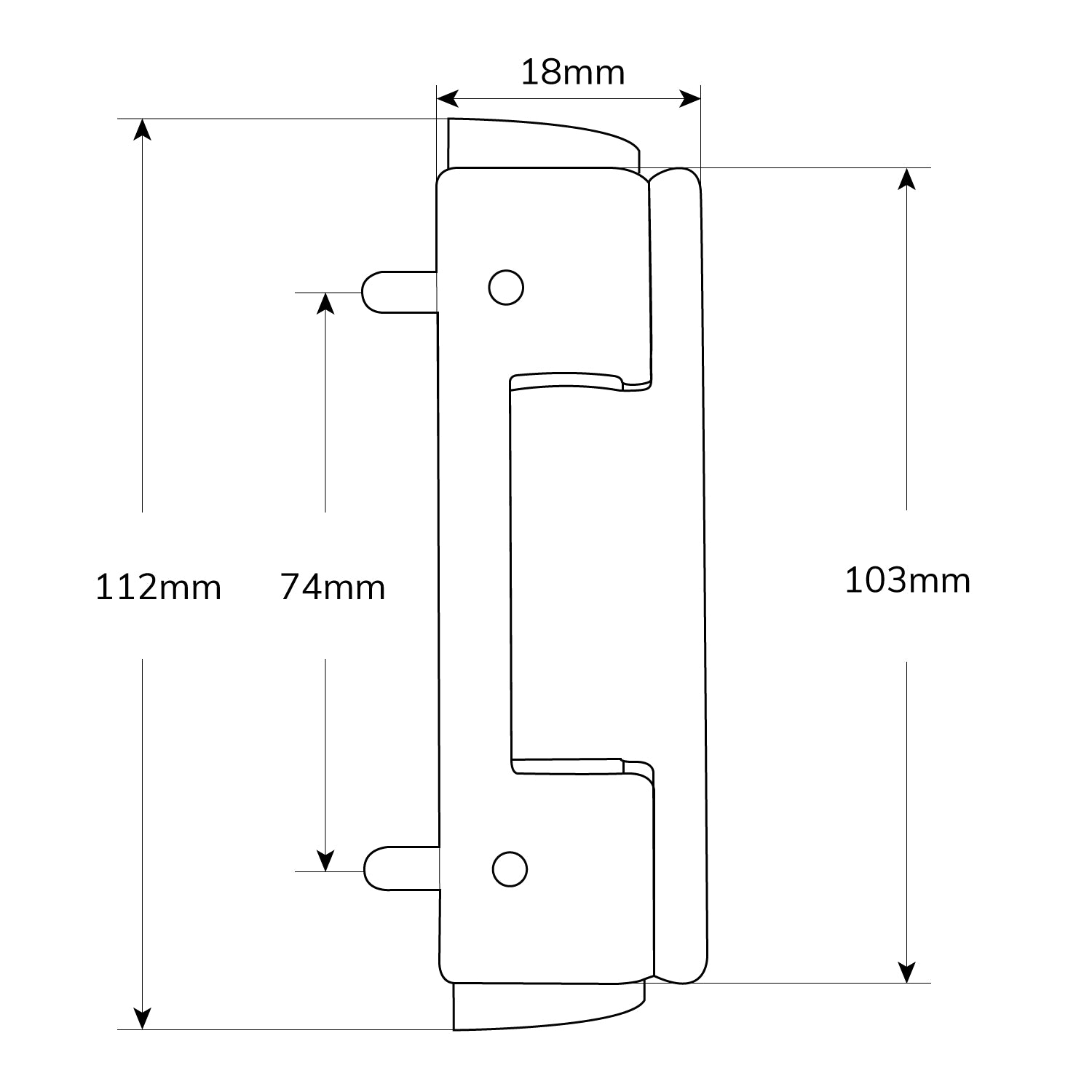

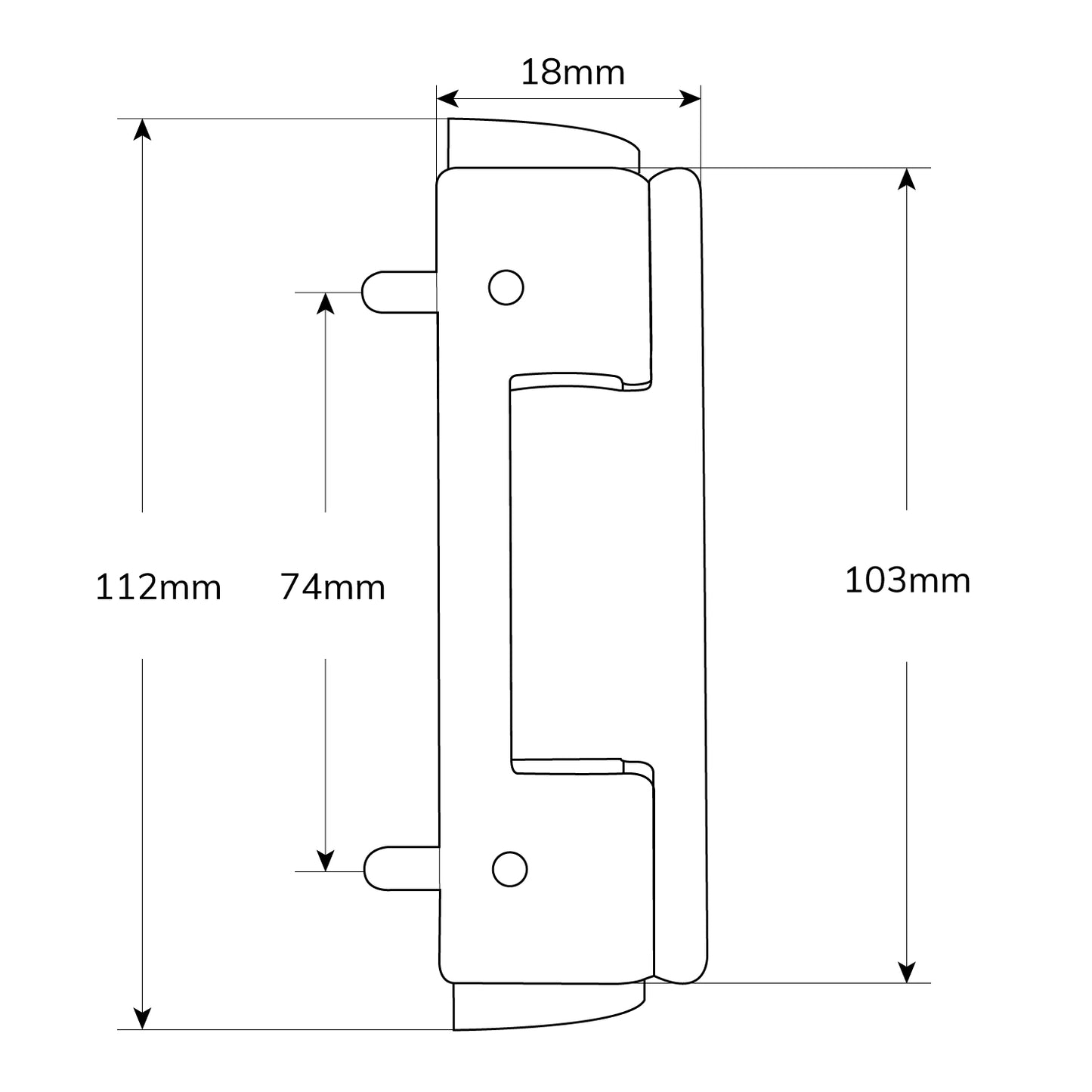

Product Specification

• Manufacturer: TSS
• Colour: White
• Height: 103mm (112mm with End Caps)
• Width: 18mm
• Distance Between Pins: 74mm
• Screw Centres 1st to 4th: 90mm
• Screw Centres 2nd to 3rd: 63mm
• Salt Spray Tested to: 480 Hours (BS EN 1670: Class 5)
• Tested to: 200,000 cycles
• Tested with: 3 Hinges up to 60kg Sash Weight
• Adjustment: Horizontal Adjustment (toe & heel) of +/- 2mm
• Suitable for: 0 degree chamfer only as other options now discontinued

Choose TSS for reliable, affordable solutions that elevate your projects!
