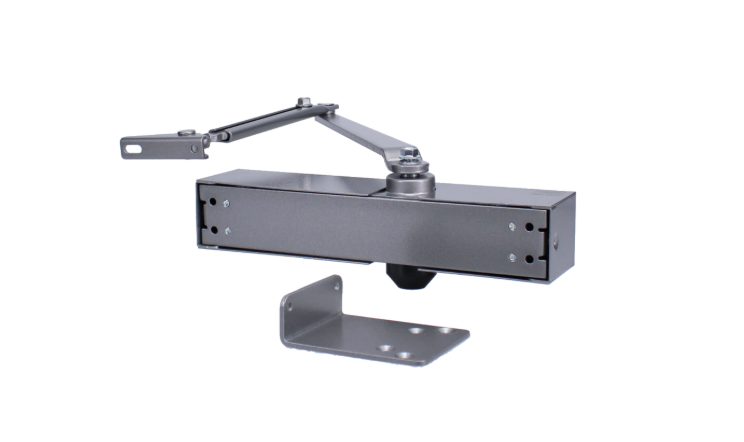

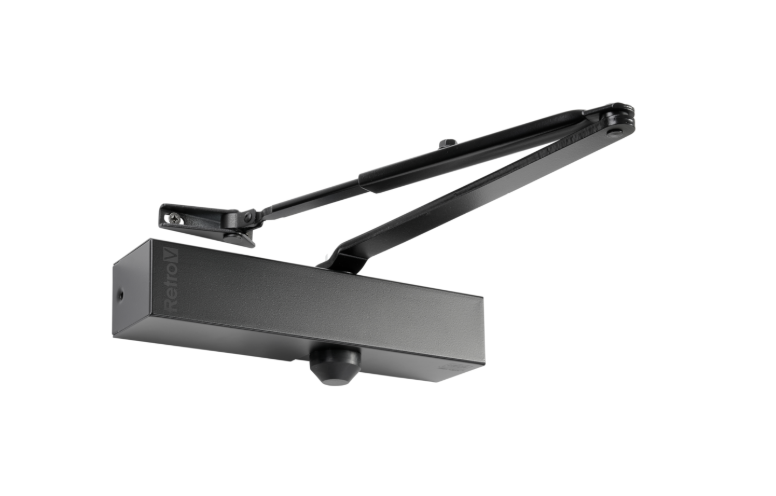

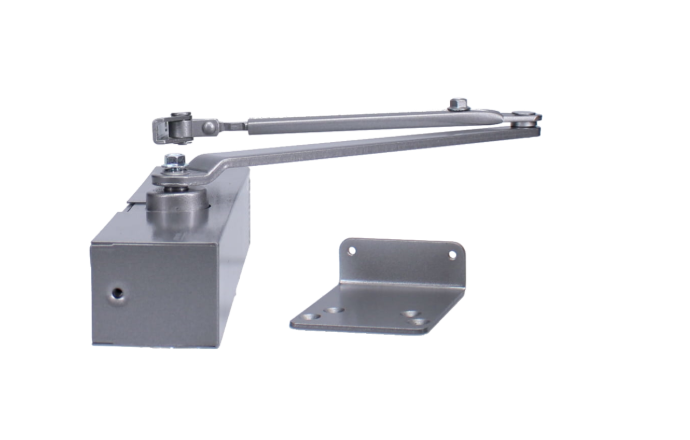

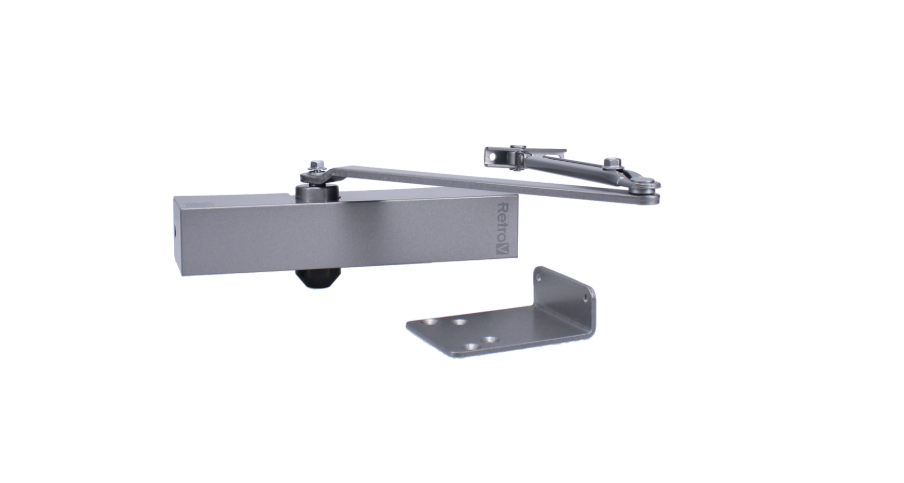

UNION RETRO V Size 3-4 Overhead Door Closer

The Union RetroV Variable Power Door Closer is a versatile solution designed for both new installations and retrofitting existing door closers in the UK market. Its thoughtful design ensures it seamlessly integrates with traditional door closers, making it an aesthetically pleasing choice for various settings. This door closer is compatible with fire-resistant timber and metal doors, as well as other internal doors, ensuring safety and functionality.

With rigorous testing as both size EN3 and EN4 across all three fixing positions, the Union RetroV features a wind-through adjustable rack and pinion system that allows for customizable closing forces tailored to specific applications.

Constructed with an aluminum body and a robust steel armset, this closer boasts concealed independent door speed and latch adjustment controls, enhancing its sleek appearance once installed. It accommodates doors up to 1,100 mm wide and 80 kg in weight, with an impressive opening angle of up to 130º.

Included with the closer are screws, a parallel arm bracket, a fully adjustable armset, and user-friendly template and pictorial fitting instructions, making installation straightforward.

• Specifications
  • Finish Options:

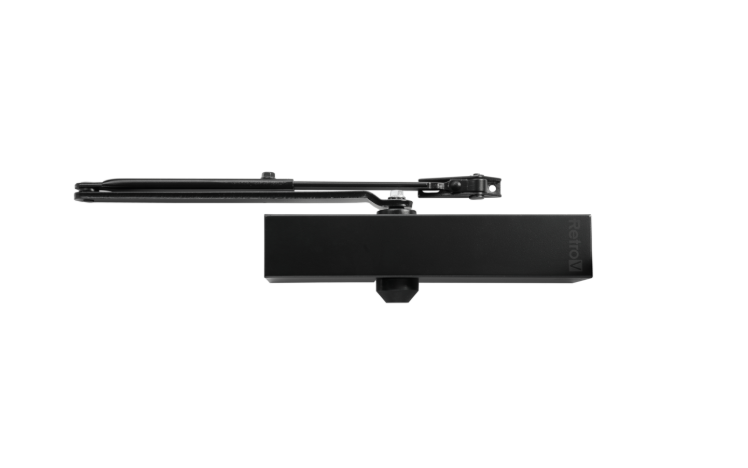

  • Matt Black
  • Silver Enamelled

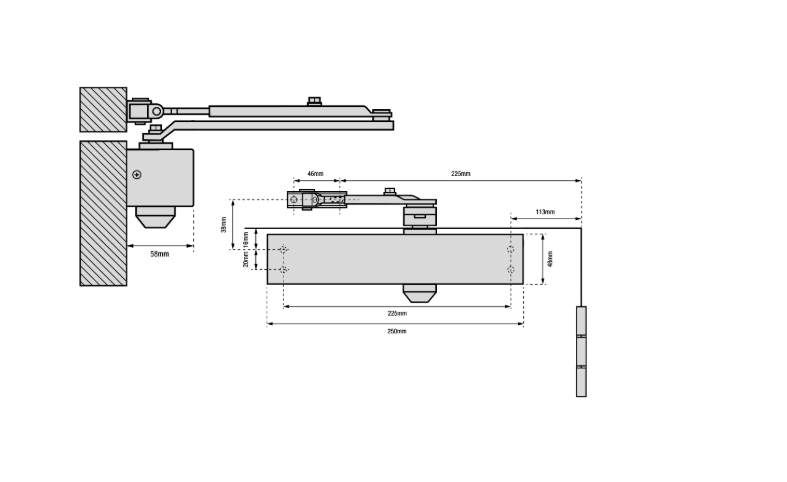

• Dimensions:
  • Height: 58 mm
  • Width: 48 mm
  • Depth: 58 mm
  • Body Depth: 58 mm
  • Body Height: 48 mm
  • Body Width: 250 mm
• Performance:
  • Max Door Weight: 80 kg
  • Max Door Width: 1100 mm
  • Strength Size: 3 to 4
  • Max Opening Angle: 130°

Features

• Non-handed with adjustable power for maximum flexibility
• Independent door speed and latch controls
• Fully tested as both size EN3 and EN4 in all three fixing positions
• Fire rated for timber (FD120) and metal (FD240) fire doors
• Identical fixing dimensions and footprint to popular UK door closers
• Concealed fixings and adjustment controls

This door closer not only meets safety standards but also provides a reliable and stylish solution for any door application.
