UNION JL22OVS StrongBOLT Oval Sashcase

Introducing the UNION StrongBOLT™ – a cutting-edge solution that combines innovative design with practical functionality.

This advanced locking mechanism features a unique chamfered bolt design, meticulously developed through extensive research and user feedback. The StrongBOLT™ now includes an easy reversible radius latch, utilizing the proprietary UNION SwitchLatch™ technology for seamless operation.

Additionally, the anti-rattle adjustable strike allows for on-site fine-tuning, ensuring a perfect fit every time. The integrated plastic splinter guard simplifies installation, providing a professional finish that enhances both security and aesthetics.

Key Features

• Square faceplate & radius inner forend for ease of installation
• Reversible radius latch for versatile application
• Certifire approved for fire safety compliance
• CE marked to meet European standards
• Suitable for use on fire doors ensuring safety in critical environments
• Pick, saw & force resistant for enhanced security

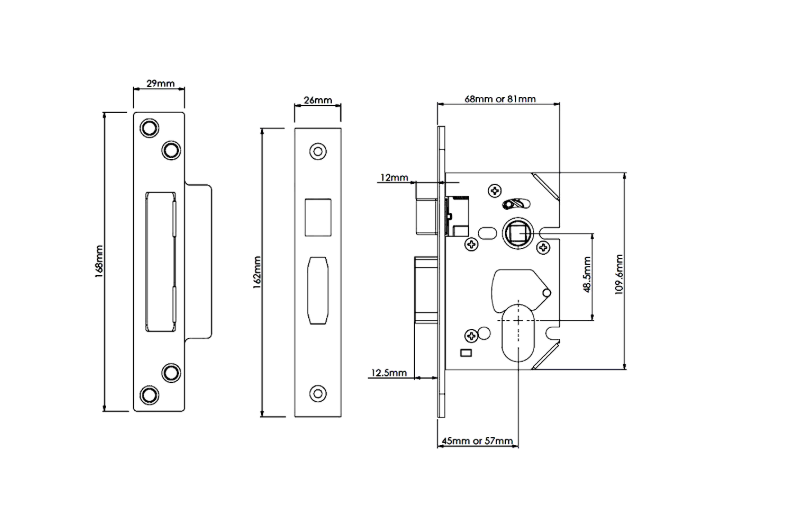

Specifications

• Backset: 57mm
• Centres: 47.5mm
• Spindle: 8mm
• Bolt Throw: 14mm
• Case Depth: 64mm, 75mm
• Case Height: 109.6mm
• Forend Length: 162mm
• Forend Width: 26mm

Elevate your security with the UNION StrongBOLT™ – where innovation meets reliability.
