UNION CE4F-E Size 4 Electromagnetic Overhead Door Closer With Swing Free Or Hold Open Facility

The Union CE4F-E electromagnetic door closer is a versatile and innovative solution designed to enhance accessibility and safety in various environments.

With its dual-function capability, users can easily switch between hold-open and free swing modes. In hold-open mode, the CE4F-E allows seamless passage through doorways without the need for physical contact, making it an excellent choice for high-traffic areas such as hospitals, hotels, and theatres. This feature not only promotes convenience but also plays a crucial role in minimizing germ transmission, a vital consideration in today's health-conscious climate.

Conversely, the free-swing mode enables the door to operate as if no closer is installed, providing a smooth and effortless opening experience. This mode is particularly beneficial for residential settings, such as care homes, where ease of access is paramount.

Safety is a top priority with the CE4F-E, as it adheres to BS EN 1155 standards by integrating with fire and smoke alarm systems. In the event of a fire, the unit automatically closes, effectively containing the spread of fire and smoke, ensuring the safety of occupants.

This size 4 closer features a detachable loop for simplified installation, allowing electrics and mounting to be handled separately. Additionally, it boasts adjustable closing and latching speeds, ensuring optimal performance tailored to specific needs.

Specifications include:

• Finish: Satin Stainless Steel, Silver

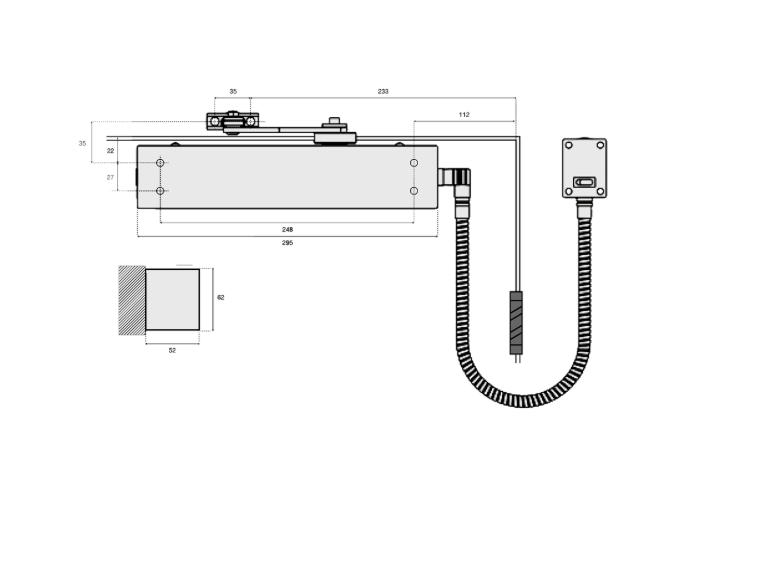

• Size: Length 29.5 cm, Depth 52 mm
• Max Door Weight: 80 kg
• Max Door Width: 1100 mm
• Strength Size: 4

Key Features:

• Compatible with figure 1 and figure 66 installations without compromising power size
• CE marked for compliance and safety
• Efficient cam and roller mechanism for smooth operation
• Certifire tested to FD120 for timber doors and FD240 for steel doors

With a 2-year guarantee, the Union CE4F-E electromagnetic door closer is a reliable choice for enhancing accessibility and safety in any setting.
