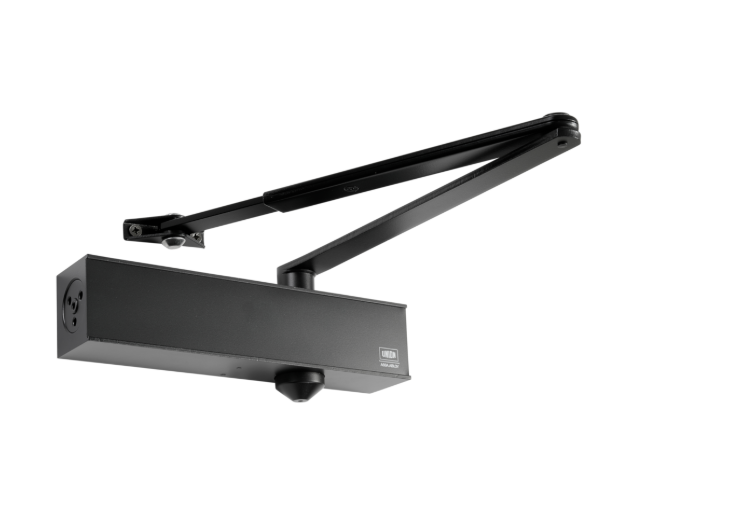

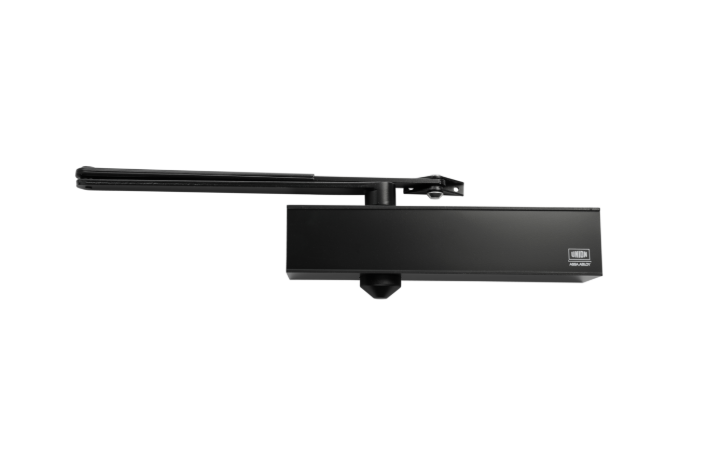

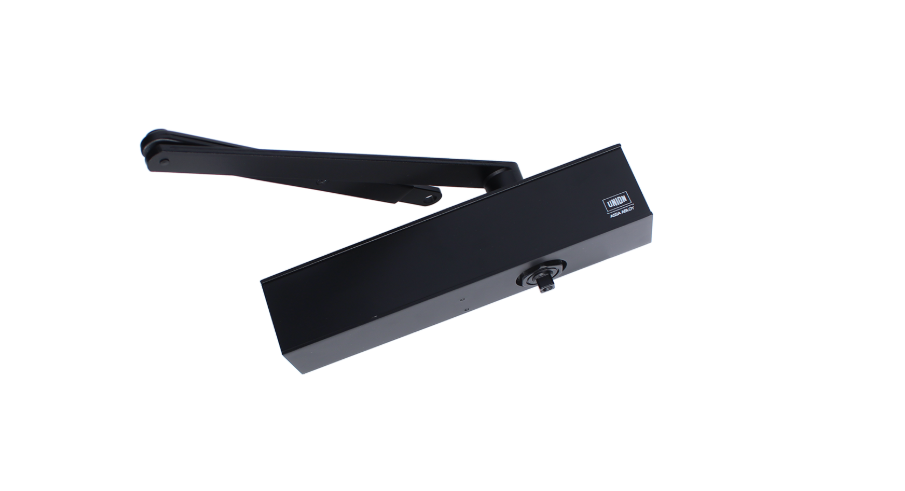

UNION CE26V Size 2-6 Overhead Door Closer

The Union CE26V is a robust and adaptable overhead door closer, perfect for medium to heavy-duty commercial and public doors. It complies with EN 1154 standards and offers an adjustable power size ranging from 2 to 6, making it suitable for various door widths and weights.

Key Features:

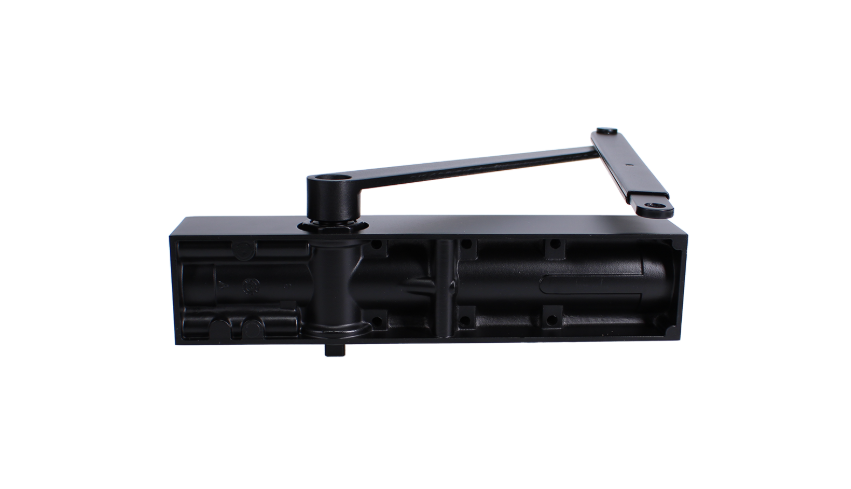

• Smooth Operation: Equipped with a rack and pinion mechanism for controlled closing.
• Adjustable Speeds: Customize closing and latching speeds to fit your needs.
• Backcheck Function: Protects against excessive opening force, enhancing safety.
• Durability: Tested for 500,000 cycles and fire-rated to EN 1634 standards.

Installation Flexibility:

The Union CE26V can be installed in multiple configurations—standard, parallel arm, or transom-mounted—providing versatility for different door setups.

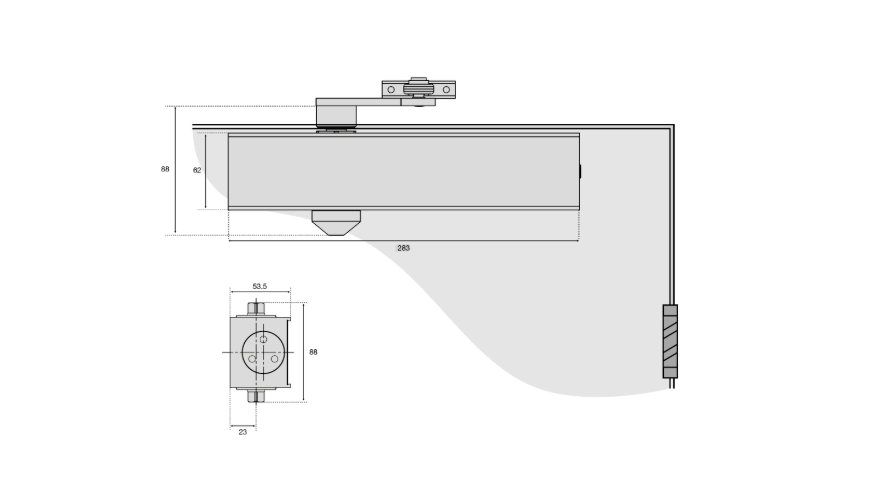

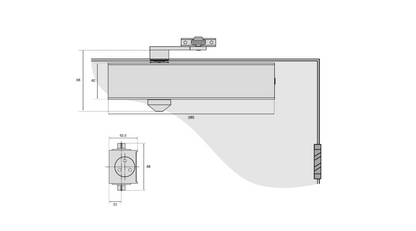

Specifications:

• Body Depth: 53.5mm
• Body Height: 62mm
• Body Width: 283mm
• Max Door Weight: 120Kg
• Max Door Width: 1400mm
• Strength Size: 2 to 6
• Finish: Black

Additional Benefits:

• Easy to fit and install.
• Suitable for doors up to 1400mm wide and 120Kg in weight.
• Certifire tested to FD120 for timber doors.

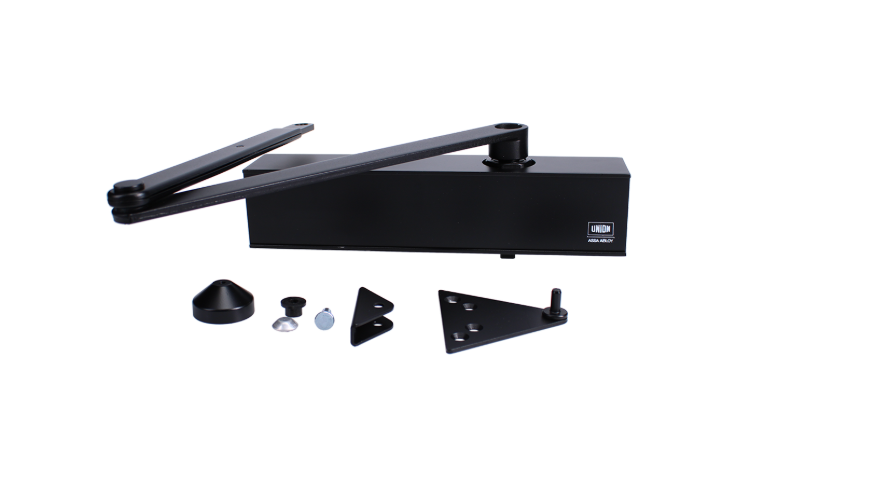

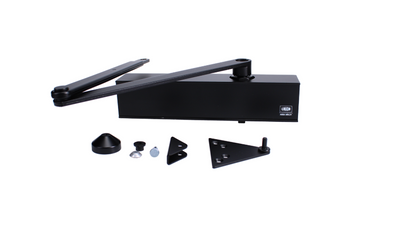

• Compatible with fig 1, fig 61, or fig 66 installation.
• Adjustable backset, closing, and latching speed for tailored performance.

The Union CE26V is the ideal choice for ensuring reliable door operation in commercial settings.
