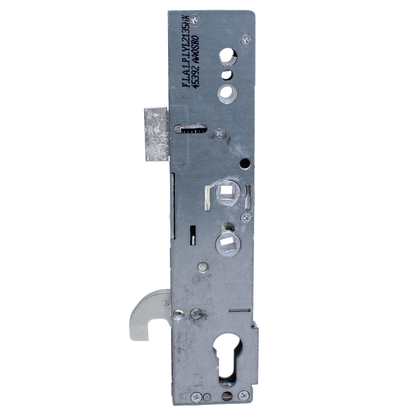

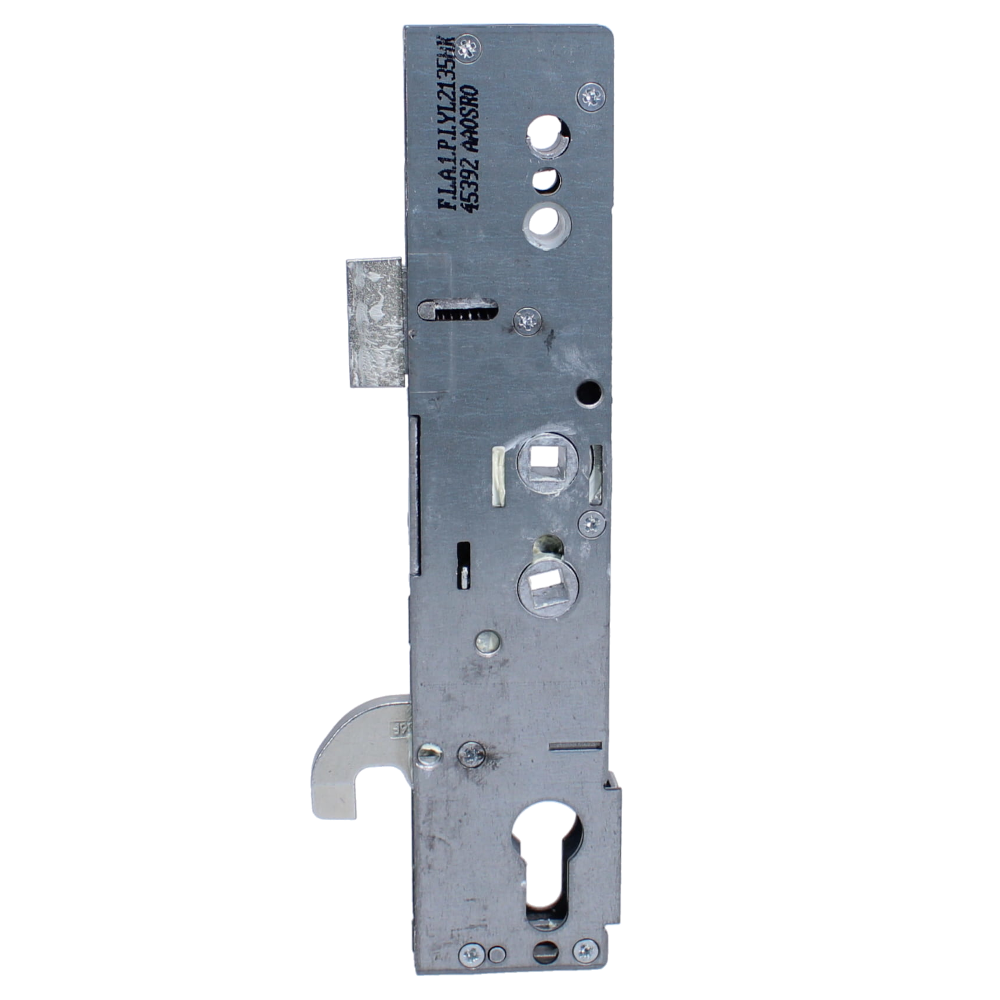

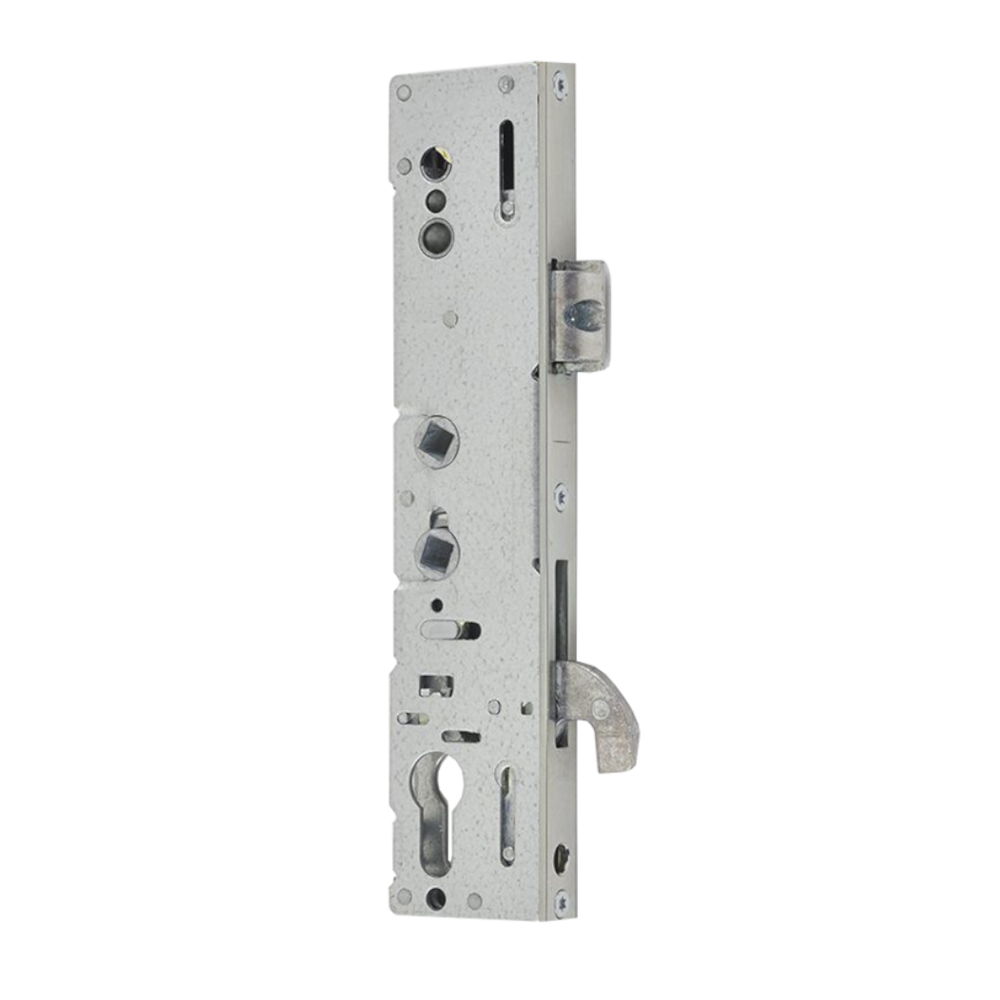

Twin Spindle Latch & Hook Gearbox

The LOCKMASTER 21 Twin Spindle Latch & Hook Gearbox is designed for versatility and durability, making it an excellent choice for various applications.

Specifications:

• Backset Options: 35mm or 45mm
• Center Measurements: 92 mm & 62 mm
• Case Height: 228 mm
• Case Width Options: 50mm or 60mm
• Configuration: Twin spindle, latch & hookbolt centre case

Handing:

The latch is easily reversible. Simply remove the screw in the latch, take it out, flip it to the opposite hand, and refit the screw for seamless adaptability.

Operation:

• Locking Method:
  • Lift the lever to engage the locking mechanisms.
  • Turn the cylinder one full turn to lock.
  • To unlock, turn the key one full turn and push down on the lever.

Features:

• Twin spindle design for enhanced functionality
• Reversible latch and snib for flexible installation
• Constructed from galvanised mild steel for strength and corrosion resistance
• Latch & hook center case for added security
• Available in 62 mm and 92 mm centers for compatibility with various door types

This gearbox combines robust construction with user-friendly features, ensuring reliable performance in securing your premises.
