TS73 EMF Size 4-6 Overhead Electromagnetic Door Closer

Product Information

Introducing the Dorma TS73 Electromagnetic Overhead Door Closers, designed for versatility and reliability. These closers feature an adjustable strength range of size 4-6, making them suitable for various door applications.

These closers can accommodate doors weighing up to 120kg and measuring a maximum width of 1400mm. They have been rigorously tested to meet BS EN1154 and BS EN1155 standards and are CE Marked for quality assurance.

Product Specification

• Fitting: Overhead
• Tested to: BS EN1154 and BS EN1155
• Applications: Fig 1 and Fig 61

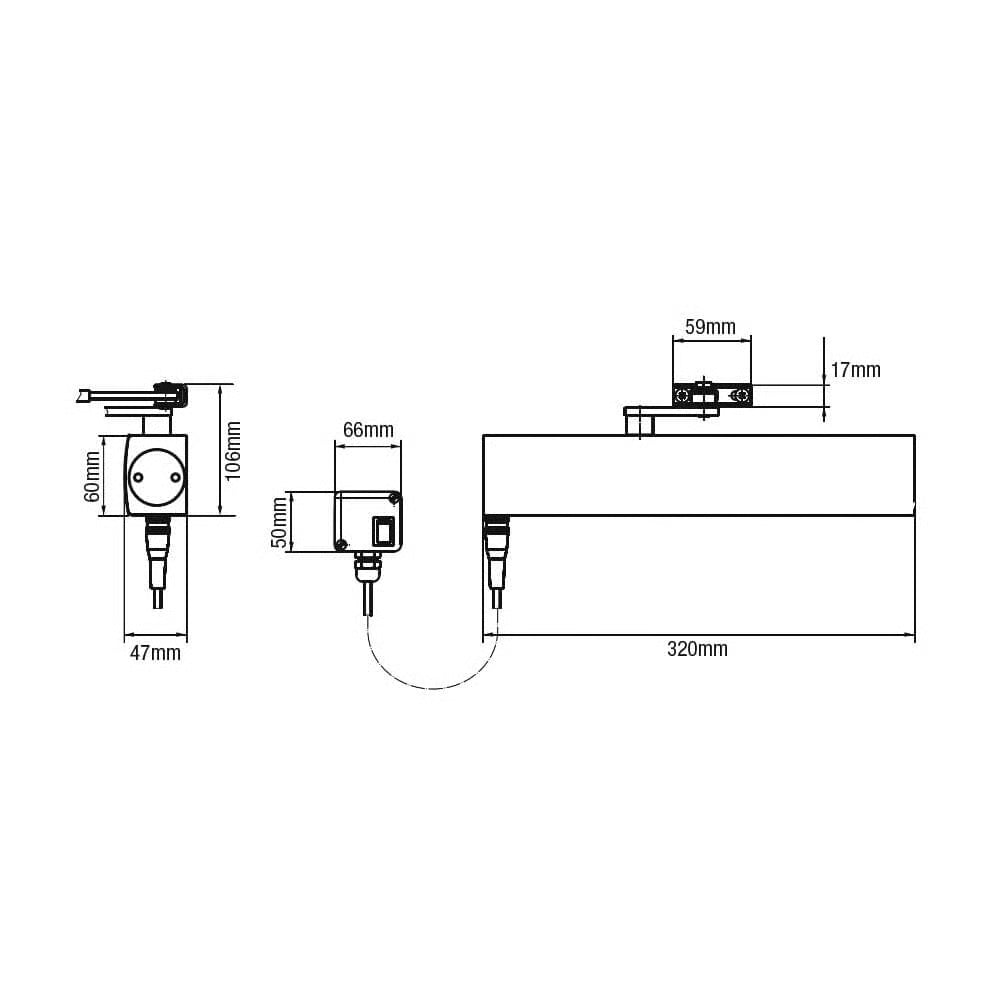

• Height: 60mm
• Width: 47mm
• Length: 320mm
• Maximum Door Weight: 120kg
• Maximum Door Width: 1400mm
• Strength: Adjustable size 4-6
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Delayed Action: No
• Backcheck: Yes
• Hold Open: Yes, Electromagnetic 75-180 degrees
• Power Requirements: 24V DC 90mA nominal
• Supplied With: Standard arm and distributor box with connecting cable for standard fixing on the hinge side
