TS72VBC Size 2-4 Overhead Door Closer with Backcheck

Product Information

The Dorma TS72 Overhead Door Closers are designed for versatility and reliability, featuring an adjustable strength range of size 2-4.

These closers are suitable for doors weighing up to 80kg and with a maximum width of 1100mm. They have been rigorously tested to meet BS EN1154 standards and are CE Marked, ensuring compliance with safety regulations.

This model includes essential features such as backcheck, adjustable closing speed, and adjustable latch action. For detailed information on how these functions operate, please refer to our FAQs.

Product Specification

• Fitting: Overhead
• Tested to: BS EN1154
• Fire Tested: EN1634 - 120 Minutes (Timber), 240 Minutes (Steel)
• Applications: Fig 1, Fig 61, and Fig 66

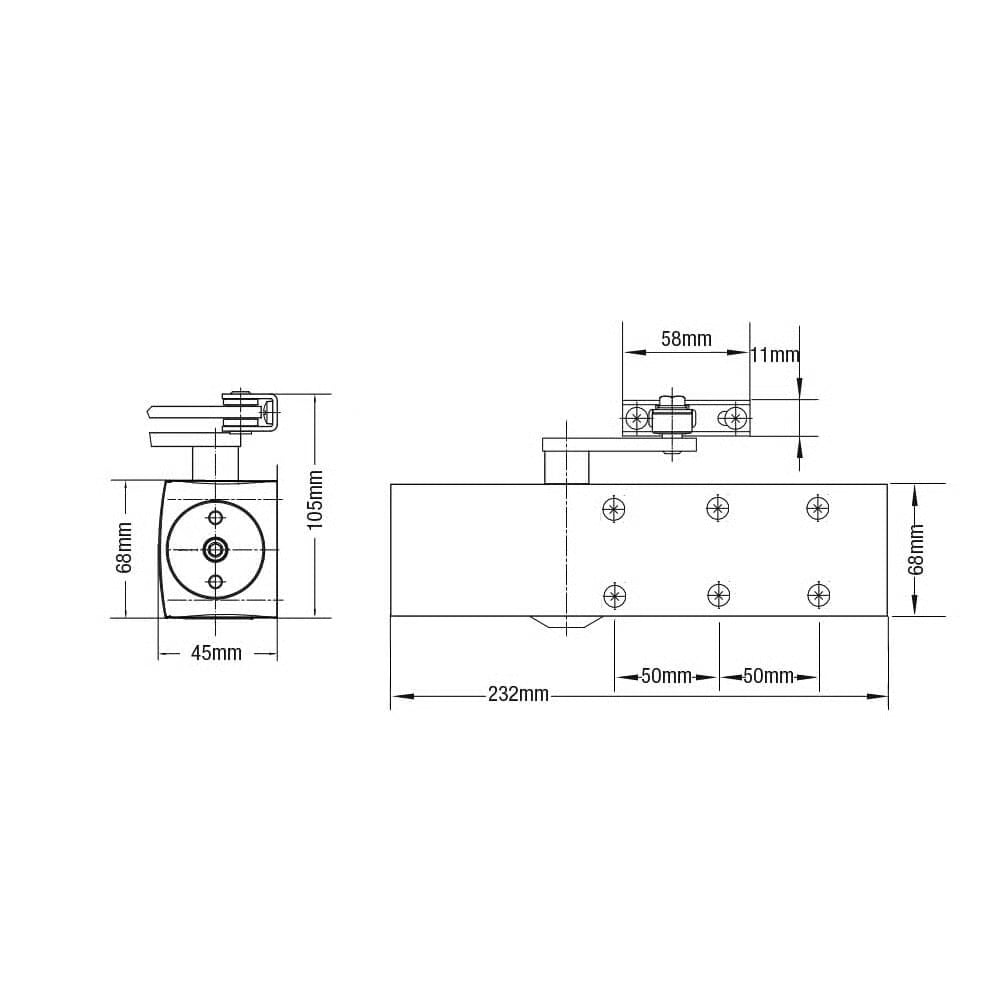

• Height: 68mm
• Width: 45mm
• Length: 232mm
• Maximum Door Weight: 80kg
• Maximum Door Width: 1100mm
• Strength: Adjustable size 3-4
• Adjustable Closing Speed: Yes
• Adjustable Latch Action: Yes
• Delayed Action: No
• Backcheck: Yes
• Hold Open: No (Use with part number: 22003001 - Dorma Hold Open Arm. Not suitable for use on Fire Doors if used with hold open arm)
