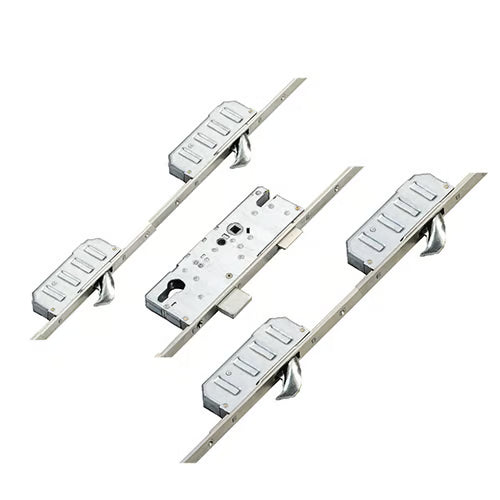

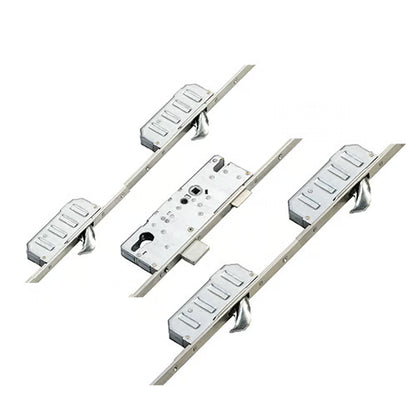

Trulock Latch Deadbolt 4 Hooks Multipoint Door Lock

Product Overview: Winkhaus Trulock Multipoint Door Lock

The Winkhaus Trulock multipoint door lock is designed for enhanced security and durability, featuring 4 hooks, 1 deadbolt, and 1 latch. This advanced locking system is ideal for timber and composite doors, particularly in social housing and new build projects.

Key Features:

• Multi-Point Locking System: Incorporates a central latch and deadbolt, with 2 or more hook locking points for superior security.
• Operation Options: Available in lift lever operation, split spindle, or key wind configurations to suit various user preferences.
• Handed Hook Locking Points: Trulocks are equipped with handed hooks, ensuring a precise fit that cannot be reversed on-site.
• Identifiable Design: Easily recognized by the Winkhaus logo and the Secured by Design logo on the faceplate, along with the distinct central deadbolt and handed hooks.
• Interchangeable Gearboxes: Compatible with Cobra gearboxes, allowing for easy upgrades or changes in locking operation. All Winkhaus locks share the same routing details, simplifying the process of switching to automatic locking systems.

Specifications:

• Gearbox Dimensions: All Winkhaus gearboxes (except AV4) measure 185mm high x backset + 15mm, making them among the smallest on the market. The spacing between the latch and deadbolt is 64mm, with 63mm from the spindle to the top of the gearbox.
• Unique Attachment Method: Gearboxes are secured to the faceplate with rivets, making them easier to identify and replace.
• Operation Identification: Gearboxes are marked with color-coded stickers: blue for lift lever, green for split spindle, and red for key wind. The split spindle option offers versatility, allowing it to function as a lever-operated lock.

Installation and Operation:

• Fitting Tolerance: The specially designed tensile steel handed hook features a 4.5mm chamfer, providing a high degree of fitting tolerance for door installations and enhancing weather performance.
• Locking Procedure:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt by turning the key.
• Unlocking Procedure:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage the locking points and retract the latch.

Security Assurance: The Winkhaus Trulock has been rigorously tested to withstand 100,000 cycles, ensuring reliability and peace of mind for users.

For further details on installation or replacement, please refer to our comprehensive guide and instructional video.

Handing Charts

Standing outside looking at the door

Standing inside looking at the door

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Hooks: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Left Hand
• Distance Between Inner Locking: 1490mm
• Distance Between Outer Locking: 780mm
• Height: 2100mm
• Top Hook to Spindle: 720mm
• Bottom Hook to Spindle: 770mm

For precise measurements, please refer to our detailed guides on measuring backsets, centres, and faceplates. Ensuring accurate dimensions is crucial for optimal installation and functionality of the Winkhaus Trulock multipoint door lock. If you have any questions or need assistance, feel free to reach out to our support team.
