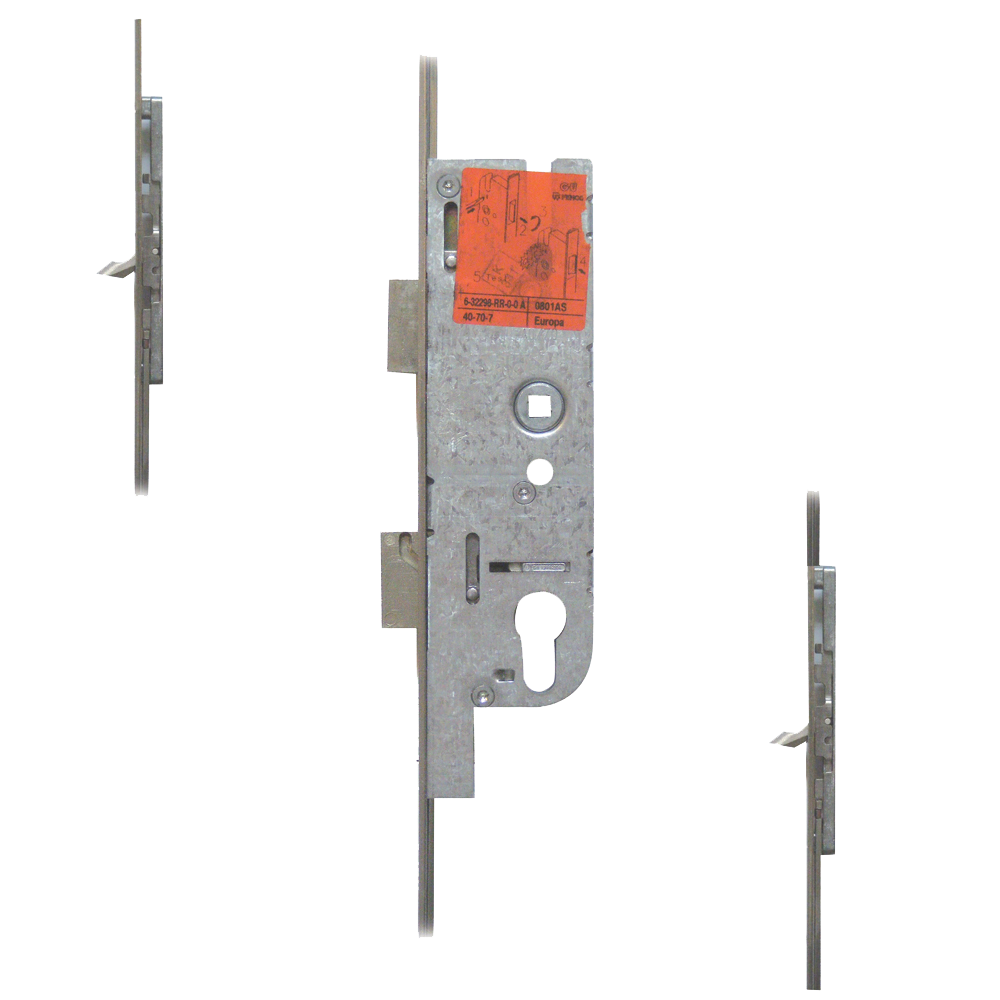

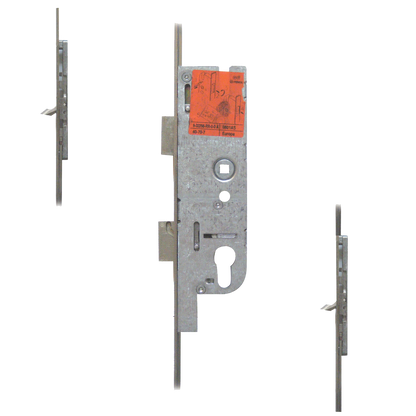

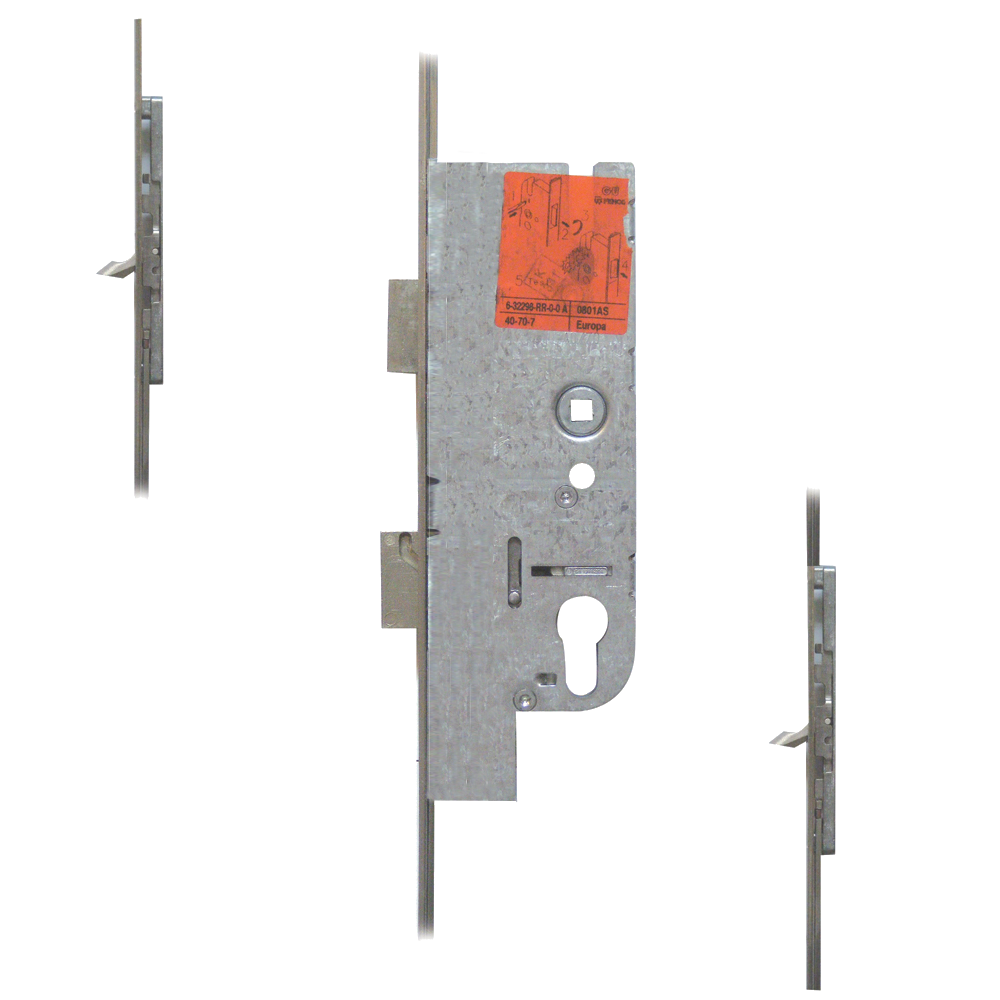

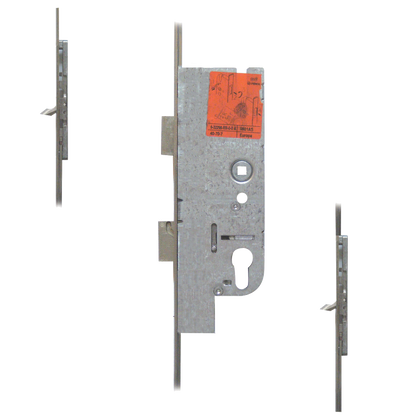

Tripact Lever Operated Latch & Deadbolt 20mm Faceplate - 2 Small Hook

The FERCO Tripact Lever Operated Latch & Deadbolt is a versatile locking solution designed for timber doors, featuring a 20mm faceplate and available in configurations with either a 40mm or 50mm backset. This lock is engineered for ease of installation, utilizing shallow flip hooks that minimize door preparation.

Originally, the Tripact lock was a latch-only system, but enhancements have introduced a deadbolt for increased security. The design evolution has maintained compatibility with earlier hook positions, although a new deadbolt keep may be necessary for some older models.

Key Features

• Identification: The lock is identifiable by its two small flip hooks, known as parrot nose hooks, and its unique 70mm centres combined with a 7mm spindle.
• Gearbox Specifications: The latch & deadbolt gearbox features a 7mm single spindle, with a case height of 215mm and a width of either 58mm or 68mm, depending on the backset chosen.
• Additional Locking Points: Beyond the gearbox, the full-length strip includes two additional hook locking points for enhanced security.
• Faceplate Dimensions: The 20mm wide faceplate is suitable for both composite and timber doors, with an overall length of 2150mm.
• Locking Point Distances:
  • Locking Point Distance A = 876mm
  • Locking Point Distance B = 897mm
• Croppable Design: This unit can be cropped to fit the specific height of the door, ensuring a tailored installation.
• Handing: The latch can be easily reversed by adjusting the latch hold cam, allowing for flexible installation options.
• Sprung Mechanism: The gearbox is equipped with an internal spring mechanism, facilitating lever return without the need for additional sprung handles.

Operation Instructions

To operate the lock:

1. Locking: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to secure the lock.
2. Unlocking: To unlock, turn the key one full turn and push down on the lever.

This comprehensive locking system combines functionality with security, making it an excellent choice for various door applications.
