Tripact Latch Deadbolt 2 Tongue Hooks Lift Lever Multipoint Door Lock

Product Overview: GU Ferco Tripact Multipoint Door Lock

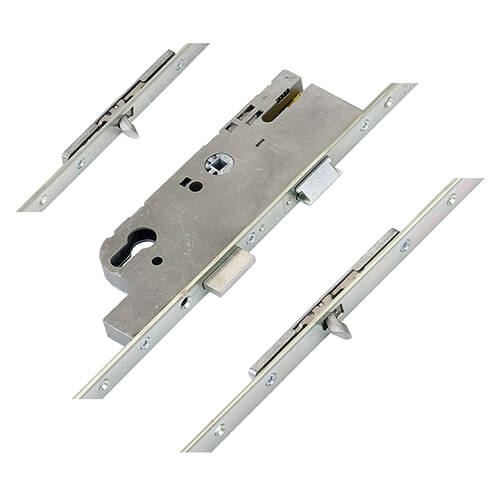

The GU Ferco Tripact multipoint door lock is designed for enhanced security and ease of use, featuring a combination of 2 hooks, 1 deadbolt, and 1 latch. This lock is part of the GU group of companies and is distinguished by its unique 70mm centres (PZ), making it easily identifiable.

Key Features:

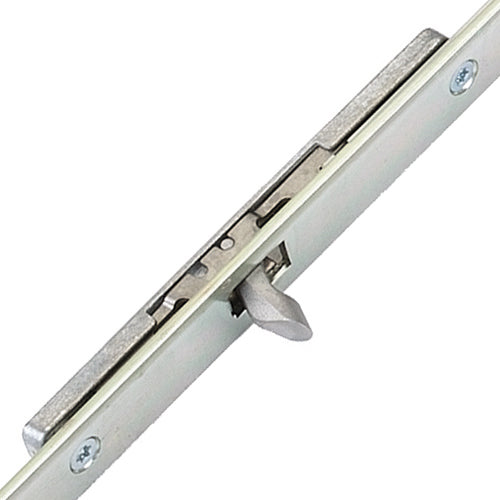

• Locking Mechanism: The Tripact lock includes a central gearbox with a latch and deadbolt, along with options for 2 or 4 rollers or a pair of small flip or tongue hooks.
• Design and Compatibility: Originally designed for timber doors, the trip act flip hooks were crafted to minimize door preparation. The initial models were latch-only, but the addition of a deadbolt has improved security. The original locks featured a 20mm faceplate with a T-shaped rail and were only available with a 40mm backset.
• Spindle Specifications: The solid spindle operates with a standard lift lever function, but it is important to note that the spindle measures 7mm, which is smaller than the standard 8mm. To ensure compatibility, 70mm PZ handles will be supplied with a 7mm spindle.

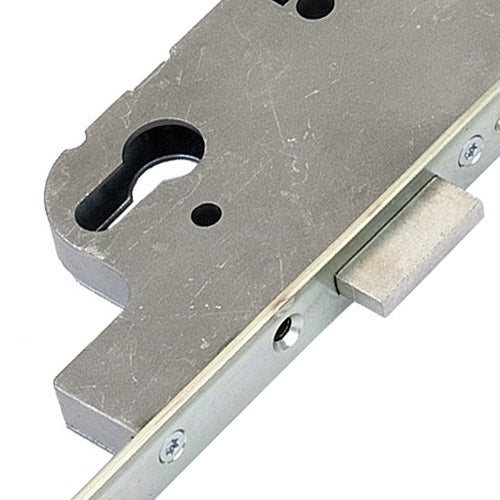

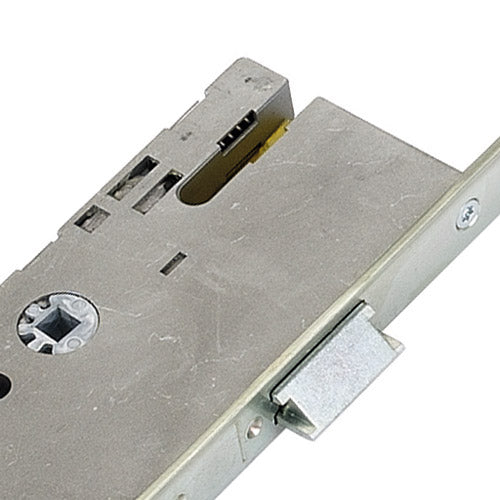

• Gearbox Dimensions: The gearboxes measure 212mm high and the width is the backset plus 15mm.

Operating Instructions:

• To Lock the Door:
  • Lift the handle upwards to engage the locking points.
  • Secure the locking points and main deadbolt (if present) by turning the key.
• To Unlock the Door:
  • Unlock the system by turning the key.
  • Push the handle downwards to disengage the locking points and retract the latch.

This multipoint door lock combines functionality with a robust design, making it a reliable choice for various door applications.

Product Specification

• Manufacturer: GU Ferco
• Spindle Size: 7mm
• Hooks: 2
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 7mm
• Handing: Non handed

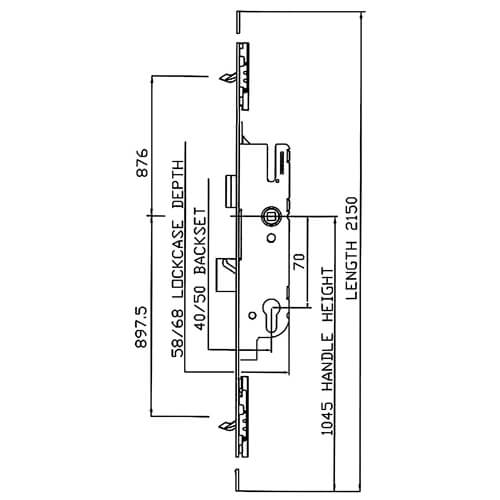

• Distance Between Inner Locking: 1773mm
• Height: 2150mm
• Top Hook to Spindle: 876mm
• Bottom Hook to Spindle: 897mm

Measuring Guidelines:

To ensure accurate measurements for your GU Ferco Tripact multipoint door lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle spindle.
  • This measurement should be 70mm for compatibility.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • Ensure the new faceplate matches these dimensions for a proper fit.
• Operation Selection:
  • Choose the operation type based on your door's configuration (e.g., left-hand or right-hand).
  • Consult the product manual for specific operation details.

By following these measuring guidelines, you can ensure that your GU Ferco Tripact multipoint door lock is installed correctly and functions optimally.
