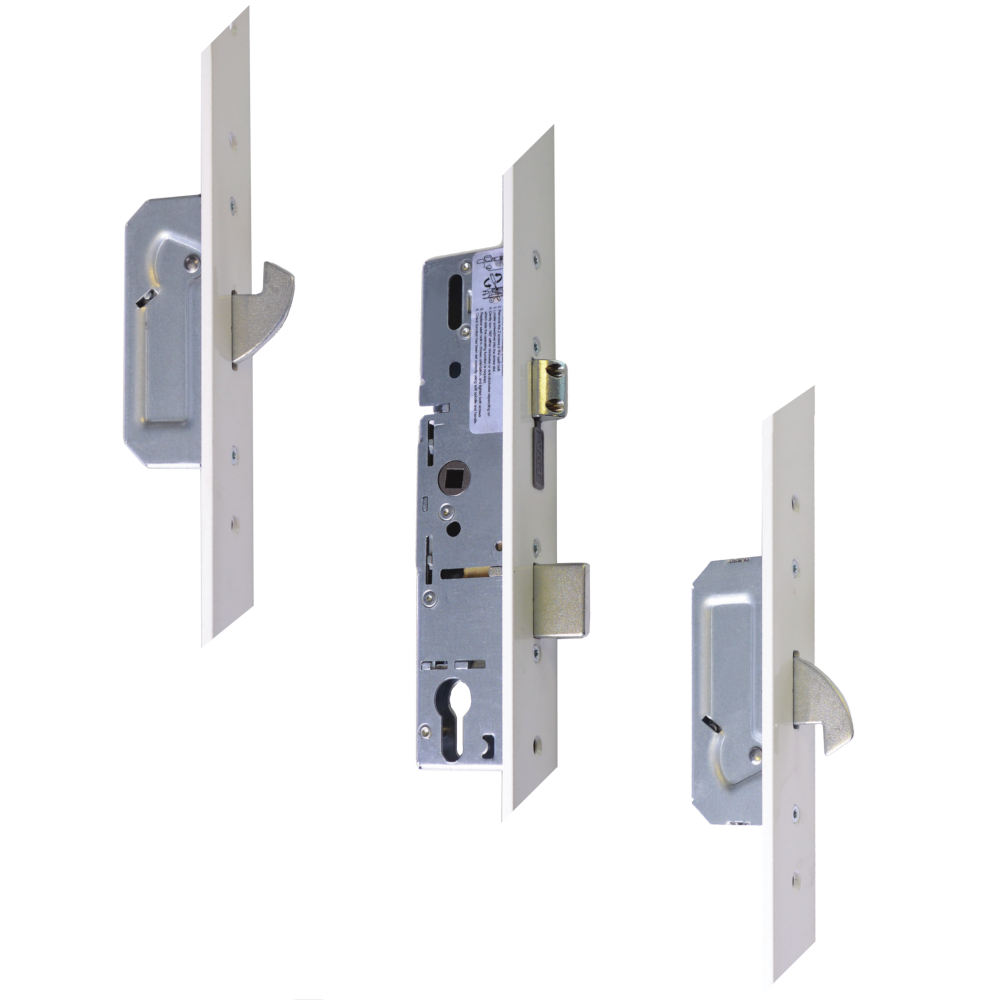

Trimlock Lever Operated Latch & Deadbolt Split Spindle With 2 Hooks & 44mm White Faceplate

The ERA 2 Hook 45mm BS 1770mm Multipoint Lock 6345-687-85ZA-RH is a robust and versatile locking solution designed for enhanced security in composite and timber doors.

Key Features

• Backset & Dimensions: With a 45mm backset and a case height of 220mm, this lock is engineered for optimal performance. The case width of 63mm ensures a snug fit within the door structure.
• Split Spindle Operation: This lock features a split spindle operation, allowing for flexibility in handle positioning and ease of use.
• Additional Locking Points: Beyond the primary locking mechanism, the full-length strip includes two additional hook locking points, providing extra security.
• Durable Faceplate: The 20mm wide radius faceplate is designed for durability and aesthetics, making it suitable for various door types. Its overall length of 1770mm ensures comprehensive coverage.
• Locking Point Distances:
• • Locking Point Distance A = 875mm
  • Locking Point Distance B = 700mm

• Croppable: Please note that this unit cannot be cropped on site, so ensure the required length is confirmed before purchase.

• Handing: The latch can be easily reversed by removing the screws, allowing for adaptability to different door configurations.

• Sprung Gearbox: The internal spring mechanism aids in lever return, eliminating the need for additional sprung handles or spring cassettes.

Operation Instructions

To operate the lock, lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to secure the door. To unlock, simply turn the key one full turn and push down on the lever.

Compliance and Standards

This lock is designed to meet the requirements of PAS 24 as part of a compliant door system and adheres to BS 6375 standards, ensuring reliability and security.

Additional Information

• Non-Handed: The lock is non-handed with a reversible sash bolt, making it versatile for various installations.
• Brass Deadbolt: The brass deadbolt throws 22mm for added security.
• Snib Facility: A snib facility is included on the center case for convenience.
• Alternative Name: This lock is also known as Trimlock, highlighting its adaptability in various applications.

This multipoint lock is an excellent choice for those seeking a reliable and secure locking mechanism for their doors.
