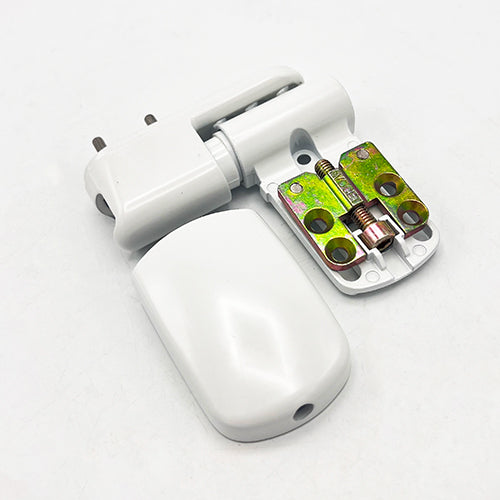

Triad Mini 3D Flag Hinge for UPVC Doors

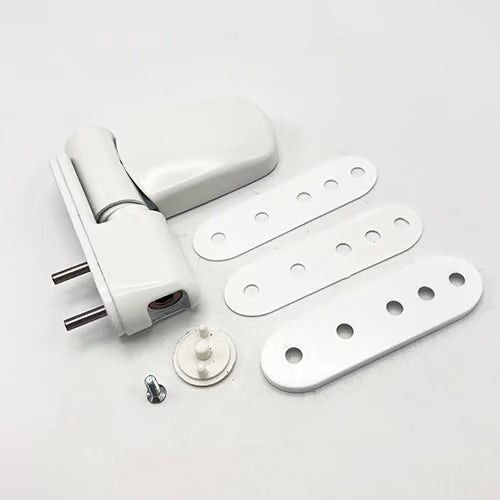

Introducing the Avocet Triad Mini 3D Flag Hinge for UPVC Doors, a perfect blend of functionality and style. This innovative hinge is designed to accommodate rebate heights of 12-16mm+ (19mm with packers), ensuring a seamless fit for your doors.

With its 3-way adjustment feature, this hinge simplifies installation and maintenance, allowing for easy door movement compensation without the need for a professional installer. The standard profile hinge is suitable for doors weighing up to 90kg when using three hinges, making it a reliable choice for various applications.

Engineered for durability, the Avocet Triad Mini has been endurance tested for 100,000 operations and load tested to support up to 100kg across three hinges. Plus, all finishes comply with BS EN 1670 - grade 5 standards, ensuring long-lasting performance and aesthetic appeal.

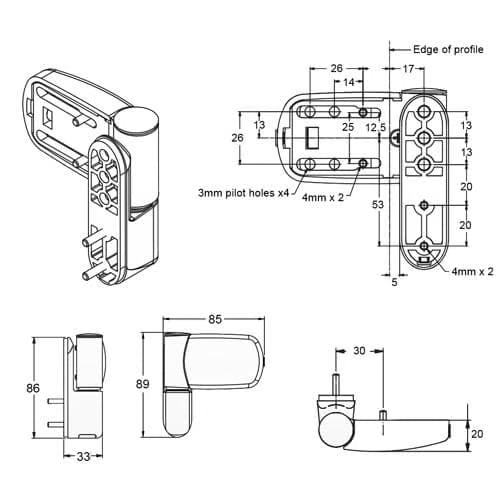

Product Specifications:

• Manufacturer: Avocet
• Colour: White
• Height: 89mm
• Width: 95.5mm
• Profile Step Height: 12-16mm
• Max Door Weight for 3 Hinges: 90kg
• Adjustment: 3D
• Distance Between Pins: 30mm

Elevate your door hardware with the Avocet Triad Mini 3D Flag Hinge, where quality meets convenience!
