Caldwell

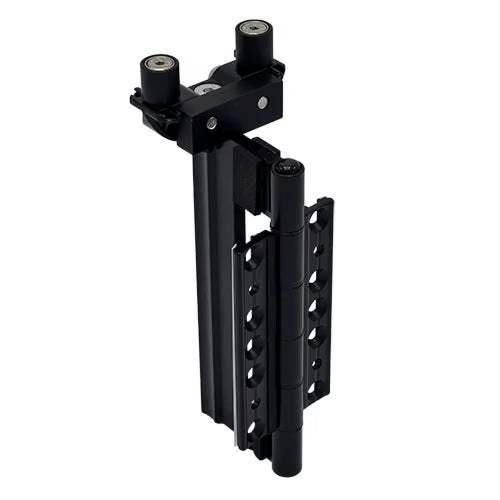

Top Guide

SKU:DF-BITGCALBL

£62.48 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Finish Black

3 in stock

Free shipping on all orders over $75.00
Easy Free Return and Refund
Trusted by Trade Professional

Product Information

This top guide assembly is essential for bi-fold door installations, providing support for the door panels at the top. It ensures that the two hinged door leaves remain securely in the running track, working seamlessly with the bifold roller for smooth operation.

Product Specification

Part Type: Top Guide
Overall Height: 183mm
Handle Height: 150mm
Roller Height: 28mm
Hinge Height: 98mm
Hinge Width (when open): 53mm
Diameter of Knuckle: 13mm
Hinge Screw Centres: 36mm
Fixing Holes: 5
Countersunk Fixing Holes: 3
Top to Bottom Fixing Hole: 85mm
Top to Middle Fixing Hole: 42.5mm
Middle to Bottom Fixing Hole: 42.5mm
2nd to 4th Fixing Hole: 57mm
3rd to 5th Fixing Hole: 28mm
Roller Height: 13.5mm
Roller Diameter: 15mm
Roller Centres: 46mm

This assembly is designed for durability and ease of installation, making it a reliable choice for your bi-fold door needs.
