Winkhaus Thunderbolt Multipoint Door Lock Overview

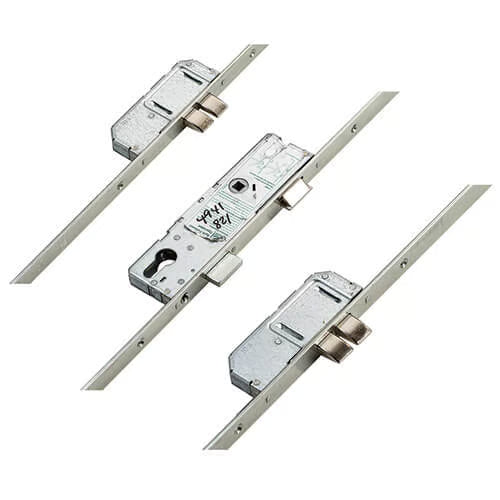

The Winkhaus Thunderbolt multipoint door lock is engineered for security and ease of installation, featuring 5 deadbolts and 1 latch. This innovative locking system is particularly suitable for FD30 Fire Doors, ensuring safety without compromising on functionality.

Key Features:

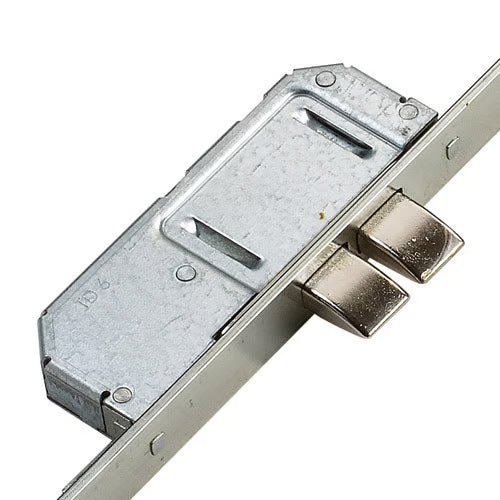

• Enhanced Security: The Thunderbolt incorporates twin deadbolts positioned at the top and bottom, meeting rigorous PAS23/24 and EN14351-1 2006 security standards.
• Versatile Operation: Available in lift lever, split spindle, or key wind operation, the Thunderbolt adapts to various user preferences.
• Increased Tolerances: Designed with up to 50% greater fitting tolerances, it accommodates a wider range of airgap dimensions during installation.
• Identifiable Design: Look for the Winkhaus logo and the Secured by Design logo on the faceplate for easy identification. The unique chamfered twin deadbolts distinguish the Thunderbolt from other multipoint locks.

Installation and Compatibility:

Winkhaus locks are compatible with timber, composite, and PVCu doors. The consistent routing details across all Winkhaus locks simplify the process of changing locking operations or upgrading to automatic locking systems.

Gearbox Specifications:

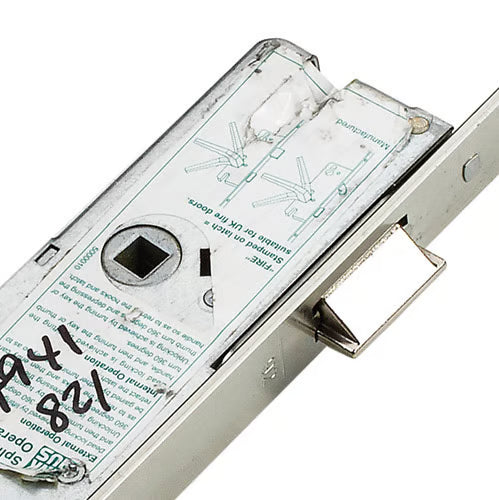

• All Winkhaus gearboxes, except the AV4, measure 185mm high with a backset of +15mm, making them the smallest on the market.

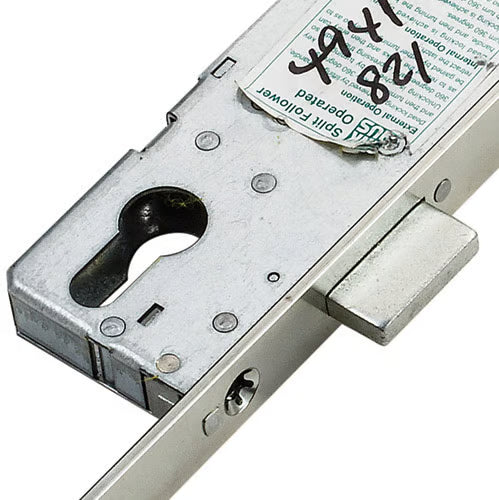

• The gearbox features a groove above the spindle for easy handle fitment.

Cobra Lock Comparison:

Winkhaus Cobra locks also include a latch and deadbolt in the gearbox, identifiable by color-coded stickers indicating the operation type: blue for lift lever, green for split spindle, and red for key wind. The split spindle option offers versatility, allowing it to function as a lever-operated lock.

Operation Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to secure the locking points and main deadbolt (if applicable).

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Durability Assurance:

The Winkhaus Thunderbolt has been rigorously tested to withstand 100,000 cycles, ensuring long-lasting performance and reliability.

Conclusion:

The Winkhaus Thunderbolt multipoint door lock combines advanced security features with user-friendly operation, making it an excellent choice for both residential and commercial applications. Its unique design and robust construction provide peace of mind for any door installation.

Product Specification

• Manufacturer: Winkhaus
• Spindle Size: 8mm
• Deadbolts: 5
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1490mm
• Height: 1770mm
• Top Deadbolt to Spindle: 720mm
• Bottom Deadbolt to Spindle: 770mm

For accurate measurements, follow these guidelines:

1. Backset Measurement: Measure from the edge of the door to the center of the keyhole or handle.
2. Centres PZ Measurement: Measure the distance from the center of the keyhole to the center of the handle.
3. Faceplate Measurement: Measure the width and length of the existing faceplate or the area where it will be installed.
4. Operation Type: Choose the operation type based on your preference for how the lock will be engaged (e.g., lift lever, key wind).

These specifications ensure that the Winkhaus Thunderbolt lock fits perfectly and operates efficiently in your door installation.
