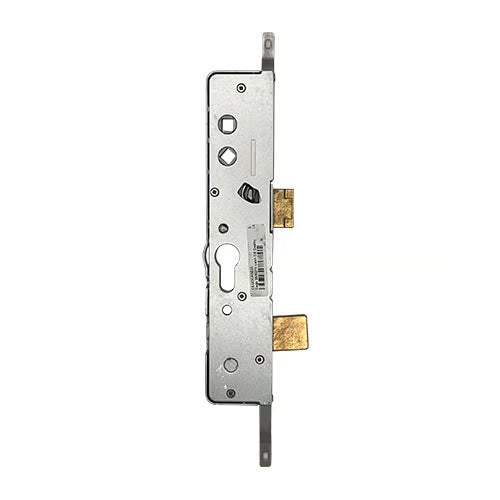

Surelock Copy Multipoint Gearbox - Lift Lever or Double Spindle

Product Information

Old style 05002 case only.

Screw holes are unthreaded - The use of self-tapping screws is required.

Replacement Hook Shells are also available. Part Number: CEGOHOOK.

Operation: Lift lever or double spindle

Latch reversal: Lay the multipoint lock strip on the floor with the latch and deadbolt facing to the left. Undo the 5 screws on the side of the case, remove the flat positioning plate, remove the latch clip, twist the latch into the desired position, reinsert the flat positioning plate and latch clip, replace the cover, and tighten the screws.

Key Features:

• Durable Construction: Designed for long-lasting performance.

• Versatile Operation: Compatible with both lift lever and double spindle mechanisms.

• Easy Latch Reversal: Simple steps for adjusting latch orientation.

• Replacement Parts Available: Ensure continued functionality with CEGOHOOK replacement shells.

Installation Tips:

• Always ensure the screws are securely fastened to maintain lock integrity.

• When reversing the latch, double-check the positioning to avoid operational issues.

• If using self-tapping screws, ensure they are appropriate for the material of your door.

This product is ideal for those looking to replace or upgrade their existing locking mechanism with a reliable and efficient solution.

Product Specification

Manufacturer: Cego Genuine

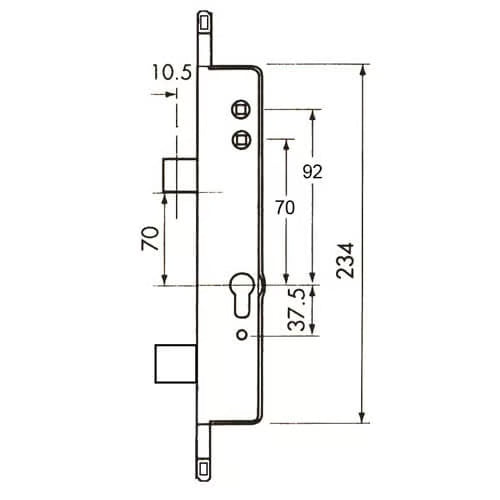

Backset: 35mm
How to Measure the Backset:
To measure the backset, take a tape measure and measure the distance from the edge of the door to the center of the keyhole or the cylinder. This measurement is crucial for ensuring that the lock fits properly in the door.

Centres PZ: 92mm/70mm
How to Measure the Centres:
To measure the centres, measure the distance from the center of the keyhole to the center of the handle or lever. This will help you determine the correct positioning for the lock and handle.

Case Height: 234mm

Case Width: 52mm

Copy/Genuine: Genuine

Cylinder Type: Euro

Handing: Not Handed

Main Gearbox: Latch & deadbolt

Spindle: Double 8mm

Operation: Lift Lever or Double Spindle Nightlatch
What is the Operation:
The operation refers to how the lock is engaged or disengaged. A lift lever operation means you lift the handle to operate the latch, while a double spindle nightlatch allows for locking and unlocking from both sides using a key or a handle.

Packaging: Supplied in singles
