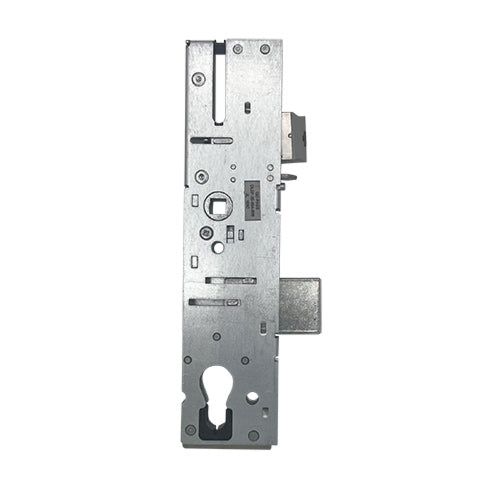

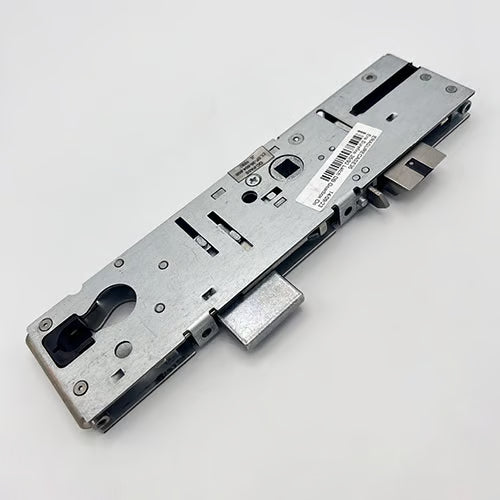

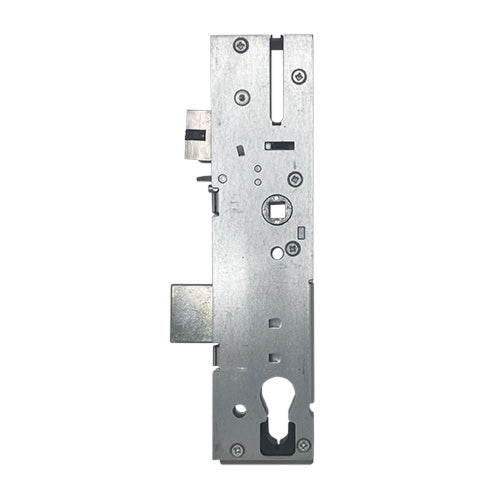

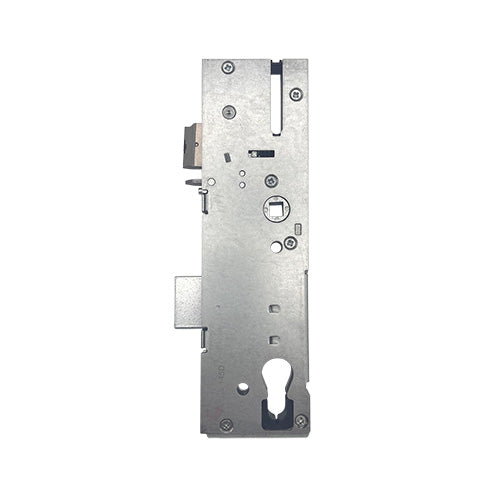

Introducing the ERA SureFire multipoint gearboxes, designed with a unique structure that sets them apart from standard ERA models. With an overall length of 213.6mm, these gearboxes are specifically engineered for enhanced security and functionality.
Key Features
Backset Options: Available in 35mm or 45mm backsets, tailored to fit your door specifications. Remember to account for 2-3mm for the faceplate when measuring.

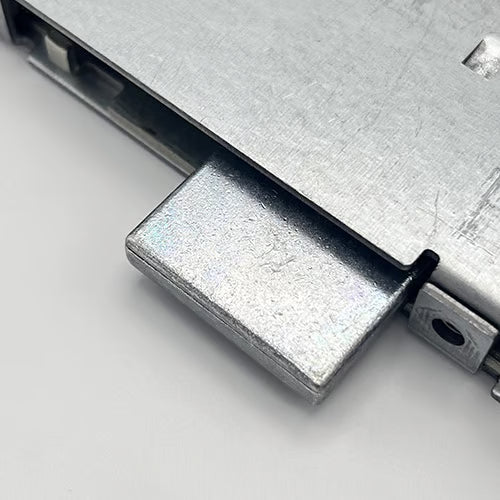

Distinctive Design: The SureFire gearbox features a square design without corner cut-outs, ensuring a robust and reliable locking mechanism.
Locking Mechanism: Upon closing the door, the latch and locking points automatically engage, securing your entry. A simple turn of the key activates the centre deadbolt for added security.
Compatibility: Please note that the SureFire gearbox is not interchangeable with other ERA multipoint door locks or gearboxes.
Installation and Operation
To ensure proper installation and operation:
Locking the Door:
Close the door to engage the latch and locking points.
Turn the key to deadlock the mechanism.
Unlocking the Door:
Turn the key to unlock.
If equipped with a lever, push it down to retract the locking points, or turn the key an additional quarter turn to retract the latch.
Product Specifications
Manufacturer: ERA
Backset: 35mm or 45mm
Centres: 92mm
Case Height: 213mm
Case Width: Backset + 18mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt
Spindle: Split 8mm
Operation: Automatic Locking
Packaging: Supplied in singles
Associated Products
We also offer a comprehensive range of accessories for the ERA SureFire gearboxes, including multipoint door locks, keeps, spindles, handles, and more to complete your installation.
For any further inquiries or assistance, feel free to reach out!
