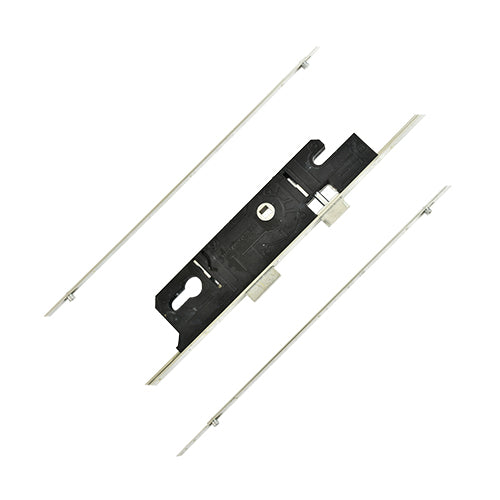

Style Latch Deadbolt 4 Roller Multipoint Door Lock

Accado Style Multipoint Door Lock Overview

The Accado Style multipoint door lock is a robust security solution featuring 4 rollers, 1 deadbolt, and 1 latch. Manufactured by the Turkish company Accado, these locks were previously fitted on PVCu doors sold by B&Q in the UK, making them a unique yet effective choice for door security.

Key Features:

• Identification: Easily recognized by its 85mm PZ (centres) measurement and 4 roller configuration. Look for the latch reversal instruction sticker on the side and the Accado stamp on some faceplates.
• Global Availability: While rare in the UK, these locks are common across Europe and other regions, making them a versatile option for replacements where the centre cannot be altered.
• Backset Options: Sold in Turkey with 25mm, 28mm, and 35mm backsets, the UK variant is fitted with a 35mm backset and a 16mm faceplate.
• Roller Positioning: The rollers are strategically placed at 308mm and 824mm above the spindle, and 300mm and 806mm below it, ensuring effective locking.

Gearbox Specifications:

Accado gearboxes are characterized by their 85mm centre measurement. Newer models feature a cut-out groove for handle fixings, while older versions have a curved top. Although older versions are no longer available, they can be interchanged with newer gearboxes.

• Dimensions: Gearboxes measure 225mm high by 51mm wide, exclusively available with a 35mm backset for B&Q doors.
• Deadbolt and Latch: The deadbolt measures 31mm high and projects 13mm when engaged, while the latch is 25mm high.

Operation Instructions:

To Lock the Door:

1. Lift the handle upwards to engage the locking points.
2. Secure the locking points and main deadbolt (if applicable) by turning the key.

To Unlock the Door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Latch Reversal Instructions:

1. Find the small screw on the reverse side of the lock, located just behind the latch.
2. Unscrew until you feel the latch move.
3. Push the latch back into the lock body.
4. Rotate the latch and let it spring back to its original position.
5. Re-tighten the screw to finalize the reversal.

Associated Products:

We offer a variety of related products for the Accado Style multipoint door locks, including keeps, spindles, handles, and accessories, ensuring you have everything you need for maintenance or replacement.

Product Specification

• Manufacturer: Accado
• Spindle Size: 8mm
• Rollers: 4
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Single 8mm
• Handing: Non handed
• Distance Between Inner Locking: 608mm
• Distance Between Outer Locking: 1630mm
• Height: 1800mm
• Top Roller to Spindle: 824mm
• Bottom Roller to Spindle: 806mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Accado Style multipoint door lock, follow these guidelines:

Backset Measurement:
To measure the backset, take a ruler and measure the distance from the edge of the door to the center of the lock cylinder. This will give you the backset size needed for your lock.

Centres PZ Measurement:
For the PZ measurement, measure the distance between the center of the keyhole and the center of the handle hole. This is crucial for ensuring that your lock fits perfectly.

Faceplate Measurement:
To measure the faceplate, you need to measure the width and height of the existing faceplate on your door. This will help you select the correct faceplate from the drop-down options.

Operation Details:
The operation of the lock can vary based on the specific model. Ensure to select the correct operation type from the drop-down menu based on your door's requirements.

By following these measuring guidelines, you can ensure that your Accado Style multipoint door lock fits perfectly and operates smoothly.
