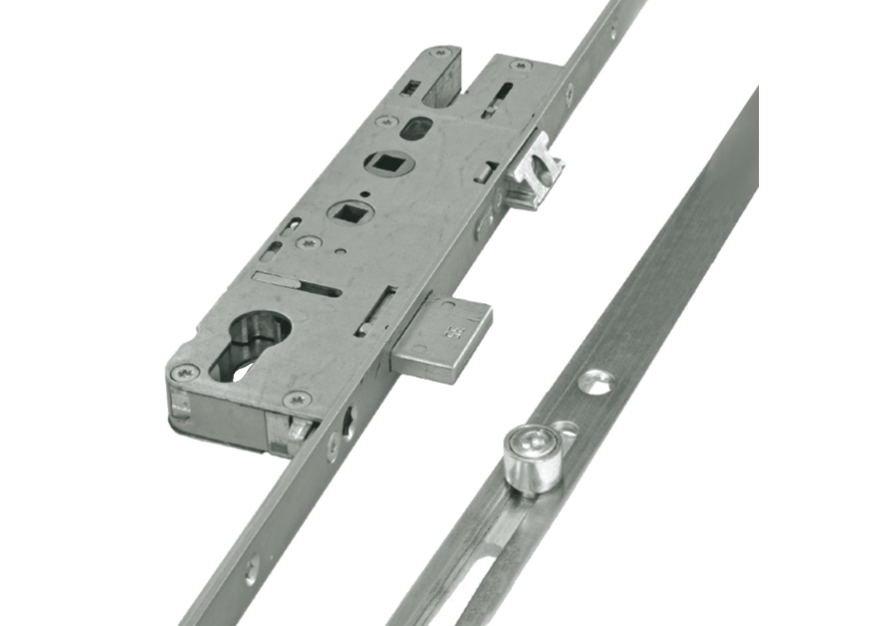

Standard Lever Operated Latch & Deadbolt Twin Spindle Designed To Accept Optional Shootbolts - 4 Roller

The ELITE Standard Lever Operated Latch & Deadbolt Twin Spindle is engineered for versatility and durability, making it an excellent choice for both standard and tall door applications. With a robust design featuring a 35mm backset, 92mm & 62mm centres, and a case height of 226mm, this lock is built to withstand the elements.

Crafted with Elite Silbear Surface Protection, it boasts an impressive 480 hours of salt spray resistance (EN1670 Grade 5), ensuring exceptional corrosion resistance, perfect for exposed environments. The twin spindle design allows for flexible operation, whether you prefer a straightforward lever/lever setup or a split spindle (lever/pad) configuration.

Key Features

• Accreditation: Corrosion resistance to EN1670: Grade 5 & a 10-Year Guarantee.
• Gearbox: Twin spindle gearbox with a case height of 226mm and a width of 54mm.
• Additional Locking Points: Includes 4 roller locking points along the full-length strip for enhanced security.
• Shootbolts: Optional shootbolts can be fitted for added protection.
• Faceplate: A 16mm wide faceplate designed for UPVC & composite applications, measuring 2.075m in length.

• Locking Point Distances:

  • Distance A = 375mm
  • Distance B = 375mm
  • Distance C = 825mm
  • Distance D = 900mm

• Croppable: The full-length unit can be cropped to fit the specific door height.

• Handing: Easily reversible latch by removing and flipping the latch.

• Spung/Unsprung: Unsprung gearbox requires installation with sprung handles or a compatible spring cassette for optimal performance.

Operation

To operate, lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock. To unlock, turn the key fully and push down on the lever.

This lock not only meets high standards of security and durability but also offers flexibility in operation, making it a reliable choice for various door types.
