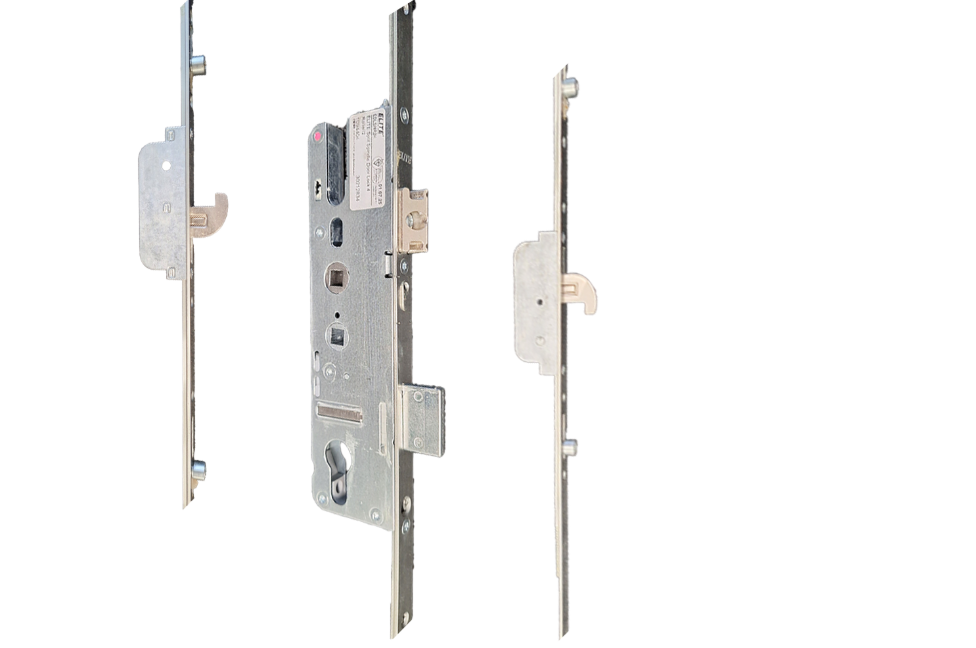

Standard Lever Operated Latch & Deadbolt Twin Spindle Designed To Accept Optional Shootbolts - 2 Hook 4 Roller

The ELITE Standard Lever Operated Latch & Deadbolt Twin Spindle is engineered for superior security and versatility, making it an ideal choice for both residential and commercial applications. With a robust design that includes bi-directional steel hooks and four rollers, this lock system not only resists forced entry but also ensures optimal sealing and performance.

Key Features

• High Security: Equipped with 2 hooks and 4 rollers, this multipoint locking system provides exceptional resistance against unauthorized access.

• Versatile Operation: The twin spindle design allows for both lever/lever and lever/pad configurations, catering to various user preferences.

• Corrosion Resistance: With Elite Silbear Surface Protection, this lock surpasses 480 hours of salt spray testing (EN1670 Grade 5), ensuring durability in harsh environments.

• Accredited Performance: Meets Secured by Design, PAS 24, and Document Q standards, making it suitable for high-specification doors.

• Long-lasting Guarantee: Backed by a 10 Year Guarantee, this lock offers peace of mind with its reliable performance.

Technical Specifications

• Backset: 35mm
• Centres: 92mm & 62mm
• Case Height: 200mm
• Case Width: 54mm
• Faceplate Width: 16mm
• Locking Point Distances:
  • A: 600mm
  • B: 590mm
  • C: 720mm
  • D: 740mm
  • E: 860mm
  • F: 810mm

Installation and Operation

• Croppable Design: The full-length unit can be cropped to fit specific door heights, ensuring a perfect installation.
• Handing: Easily reversible latch for left or right-hand doors.
• Unsprung Gearbox: Requires installation with sprung handles or a compatible spring cassette for optimal operation.
• Locking Mechanism: Engage by lifting the lever and turning the cylinder; unlock by turning the key and pushing down the lever.

This lock system is not just a security measure; it’s a comprehensive solution that combines functionality, durability, and style, making it a top choice for discerning customers.
