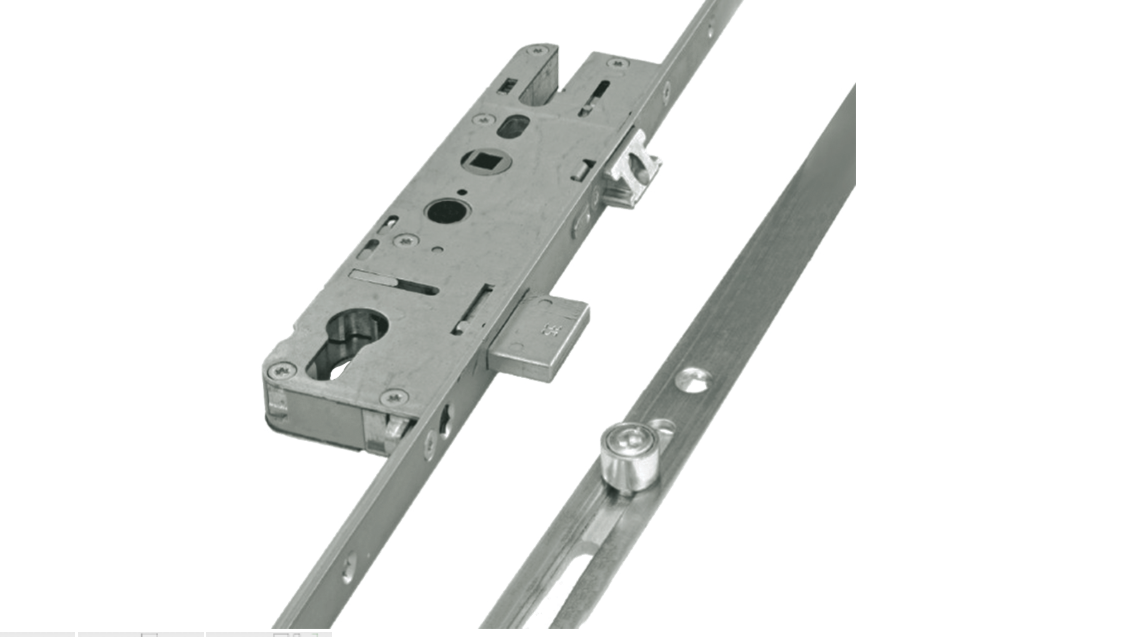

Standard Lever Operated Latch & Deadbolt Single Spindle - 4 Roller

Introducing the ELITE Standard Lever Operated Latch & Deadbolt Single Spindle - 4 Roller, a robust locking solution designed for both standard and tall door applications. With a 35mm backset and 92mm centres, this lock features a durable construction that ensures security and longevity.

Crafted with Elite Silbear Surface Protection, this lock boasts an impressive 480 hours of salt spray resistance (EN1670 Grade 5), making it exceptionally resistant to corrosion and perfect for exposed environments.

Accreditation

• Corrosion resistance to EN1670: Grade 5
• 10 Year Guarantee

Gearbox Specifications

• Single spindle operation
• Case height: 226mm
• Case width: 54mm

Additional Locking Points
The full-length strip includes 4 roller locking points, enhancing security beyond the gearbox.

Optional Features
This unit can be fitted with optional shootbolts for added security.

Faceplate Details

• 16mm wide faceplate
• Ideal for UPVC & composite applications
• Length: 2.075m

Locking Point Distances

• Distance A: 370mm
• Distance B: 370mm
• Distance C: 820mm
• Distance D: 905mm

Croppable Design
The full-length unit can be cropped to fit the specific height of your door.

Handing
Easily reversible latch by removing the screw, flipping the latch, and refitting.

Spung/Unsprung Mechanism
The sprung gearbox features an internal spring mechanism for effortless lever return, eliminating the need for additional sprung handles.

Operation

• Locking Method: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock.
• To unlock, turn the key one full turn and push down on the lever.

Key Features

• 10 Year Guarantee
• Elite Silbear Surface Protection
• 16mm faceplate for versatility
• Euro profile lock case compatible with euro cylinders
• Single spindle operation

Experience peace of mind with the ELITE Standard Lever Operated Latch & Deadbolt, where security meets durability.
