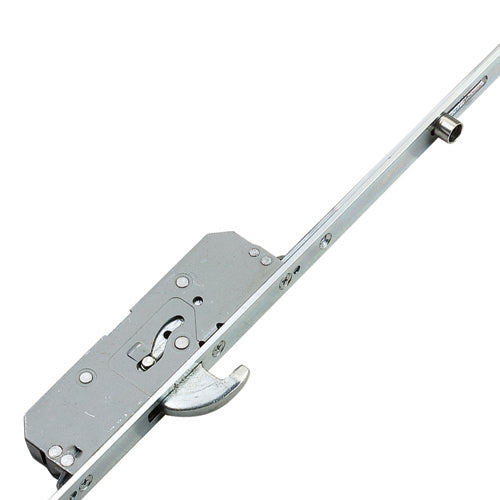

Product Overview: Fuhr 935 Stable Door Multipoint Lock

The Fuhr 935 Stable Door multipoint lock is designed for versatility and security, featuring a combination of 1 Roller, 1 Hook, 1 Deadbolt, and 1 Latch. This innovative locking system allows for independent operation of the door's top and bottom sections, making it ideal for maintaining ventilation while ensuring safety for pets and children.

Key Features:

• Dual Operation: The lock operates in two halves, allowing the top section to open independently for ventilation or interaction with guests, while the bottom section can be used for standard door operation.

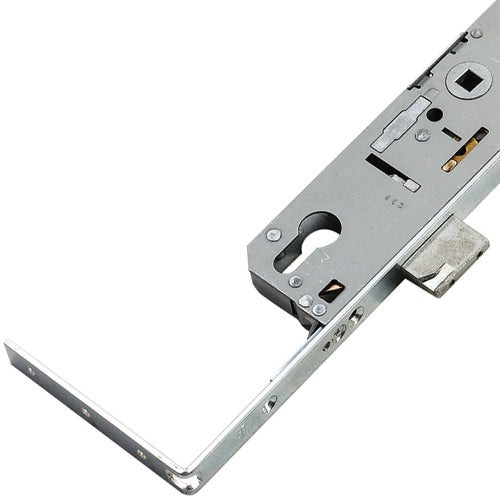

• Robust Mechanism: The lock consists of two locking mechanisms that can function independently or together. A specially designed right angle bracket enhances the strength of the interlocking sashes.

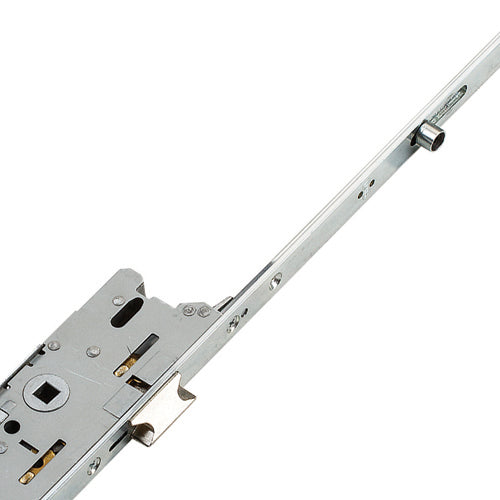

• Top Section: The 859 series split spindle operation lock includes a hook, roller, latch, and deadbolt.

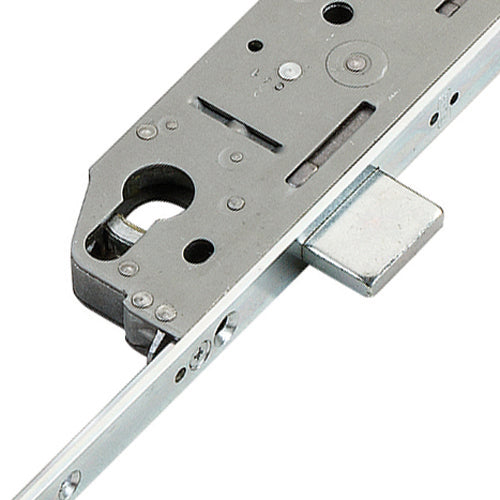

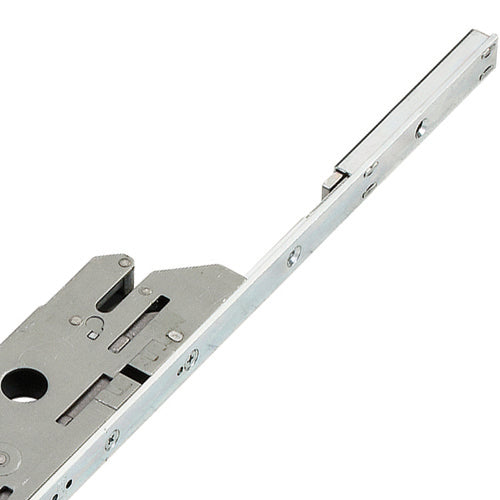

• Bottom Section: The 855 series key-operated lock features a bottom shootbolt, hook, roller, and key-operated deadbolt, but no latch.

Specifications:

• Gearbox Dimensions: The top section features a split spindle gearbox, while the bottom section is key wind. Both have a deadbolt that throws 20mm. The gearbox dimensions are 220mm x width + 18mm.
• Latch and Deadbolt Heights: The latch (top section only) and deadbolt are both 31mm high, with a 61mm distance between them. Gearboxes are secured to faceplates with three screws, with specific measurements for screw placement.
• Enhanced Locking Feel: Fuhr locks come with a pre-fitted ball bearing and spring, providing a more positive locking experience. Replacement gearboxes from Duffells include these components for easy installation.

Compatibility Note:

When replacing an existing Fuhr multipoint lock or gearbox, be aware that latch heights may differ. Older versions have a latch height of 28mm, while newer ones are 33mm. If the old latch is intact, it can be reused by removing it from the old gearbox.

Hook and Roller Specifications:

• Hook Dimensions: Fuhr hooks have a 20mm throw and a case measuring 135.5mm high x 40mm wide x 15mm thick, typically throwing upwards.
• Roller Cam Travel: The roller cams travel 19mm with an adjustment range of +/- 0.8mm.

Operating Instructions:

• For Single Door Operation:
  • Unlock both cylinders to retract the deadbolts.
  • Push the lever to disengage locking points.
• For Stable Door Operation:
  • Unlock the top section cylinder to retract the deadbolt.
  • Push the lever to disengage locking points and open the top section independently.

Locking and Unlocking:

• To Lock:
  • Lift the handle upwards to engage locking points.
  • Turn the key to lock the points and main deadbolt (if applicable).
• To Unlock:
  • Turn the key to unlock the system.
  • Push the handle downwards to disengage locking points and retract the latch.

Product Specification

• Manufacturer: Fuhr
• Spindle Size: 8mm
• Rollers: 1
• Hooks: 1
• Deadbolts: 1
• Latch: 1
• Main Gearbox: Deadbolt only
• Spindle: Single 8mm
• Handing: Non handed
• Height: 865mm
• Door Material: UPVC, Aluminium

Measuring Guidelines:

To ensure accurate measurements for your Fuhr 935 Stable Door multipoint lock, follow these guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • Ensure the door is closed for an accurate reading.
• Centres PZ Measurement:
  • Measure the distance from the center of the keyhole to the center of the handle hole.
  • This measurement is crucial for proper alignment.
• Faceplate Measurement:
  • Measure the width and height of the existing faceplate.
  • Ensure to check the thickness as well for compatibility.

These measurements will help you select the correct options from the drop-down menus and ensure a perfect fit for your door lock system.
