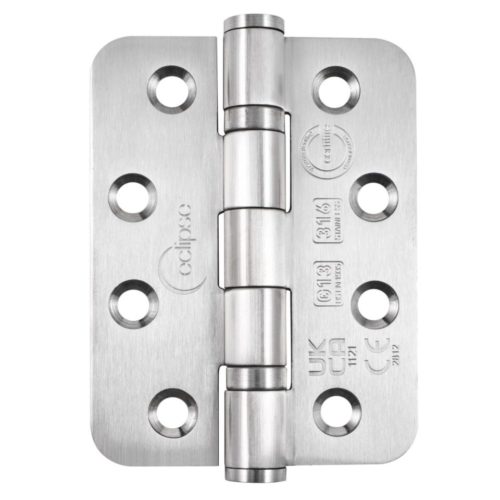

SS 316 External Hinge

Introducing the Eclipse Radius Stainless Steel Bearing Hinge, designed for durability and performance.

This hinge is crafted from Grade 13 SUS 316 Stainless Steel, ensuring it can support a total door mass of up to 120 kg. It meets rigorous standards with certifications including CE 2812, UKCA 1121, and Certifire CF336.

With a performance tested rating of 200,000 cycles to BS EN1935 Grade 13, this hinge guarantees longevity and reliability. It has also undergone fire testing to BS EN1634, making it suitable for FD30, FD60, FD90, and FD120 minute timber doors, as well as FD240 minute steel doors.

Specifications:

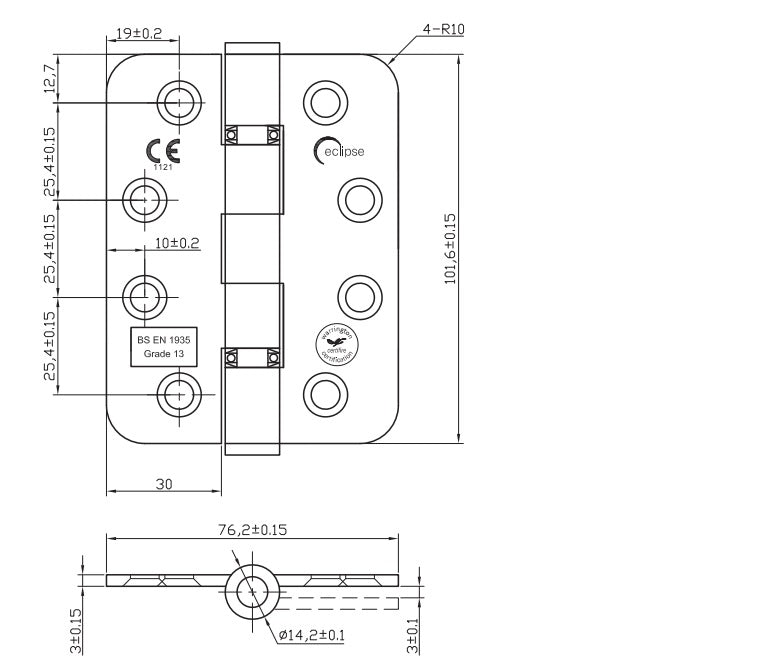

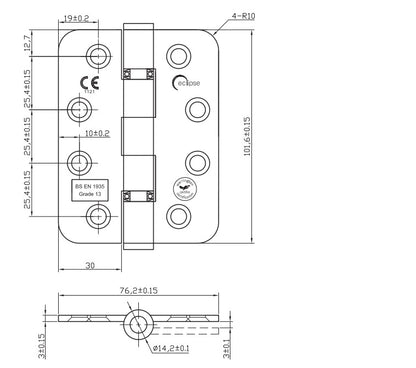

• Dimensions: 102x76x3mm
• Bearing Type: Ball bearing
• Finish: Satin Stainless Steel
• Fixings: Supplied with 12×1.1/2″ Pozi Drive 3/4″ threaded screws
• Pack Size: Supplied as a pack of 2

Upgrade your door hardware with the Eclipse Radius Stainless Steel Bearing Hinge for unmatched strength and performance.
