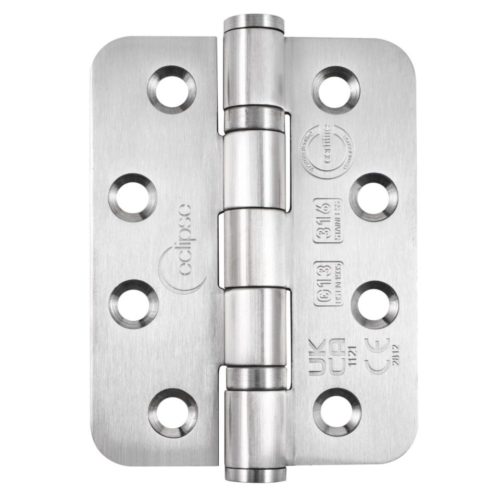

SS 316 External Hinge

Introducing the Eclipse Radius Stainless Steel Bearing Hinge, designed for durability and performance in high-demand environments.

This hinge is crafted from SUS 316 Stainless Steel, ensuring exceptional resistance to corrosion and wear, making it ideal for both indoor and outdoor applications. With a Grade 13 rating, it supports a total door mass of up to 120 kg, providing robust functionality for heavy doors.

Key Features:

• Performance Tested: BS EN1935 certified for 200,000 cycles to Grade 13, ensuring long-lasting reliability.
• Fire Safety: BS EN1634 tested for fire resistance in timber doors (FD30, 60, 90, 120 minutes) and steel doors (FD240 minutes), offering peace of mind in safety compliance.

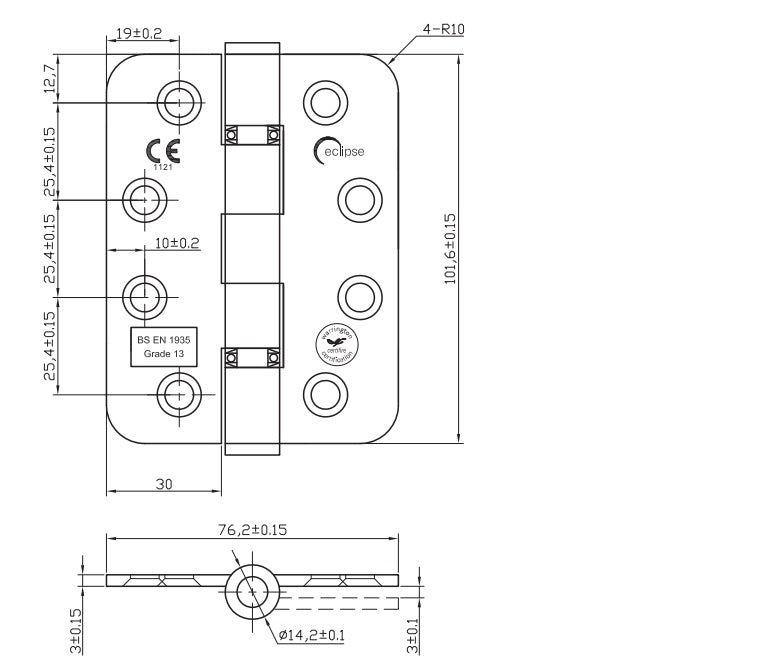

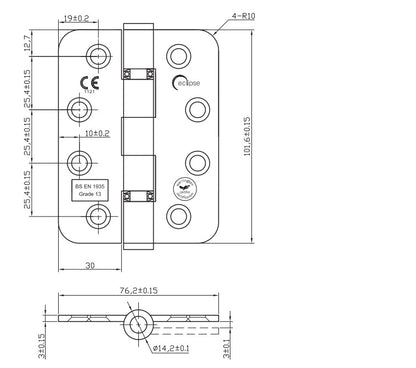

• Dimensions: Measuring 102x76x3mm, this hinge is designed to fit a variety of door sizes and styles.
• Installation Ready: Supplied with 12×1.1/2″ Pozi Drive 3/4″ threaded screws, making installation straightforward and efficient.
• Pack Size: Available in packs of 2, providing convenience for multiple installations.

Specifications:

• Base Material: 316 Stainless Steel
• Bearing Type: Ball Bearing
• BSEN 1935 Grade: 13
• Certification: CE & CERTIFIRE, UKCA
• Finish: Satin Stainless Steel
• Fixings: Included

Upgrade your door hardware with the Eclipse Radius Stainless Steel Bearing Hinge for unmatched strength and reliability.
