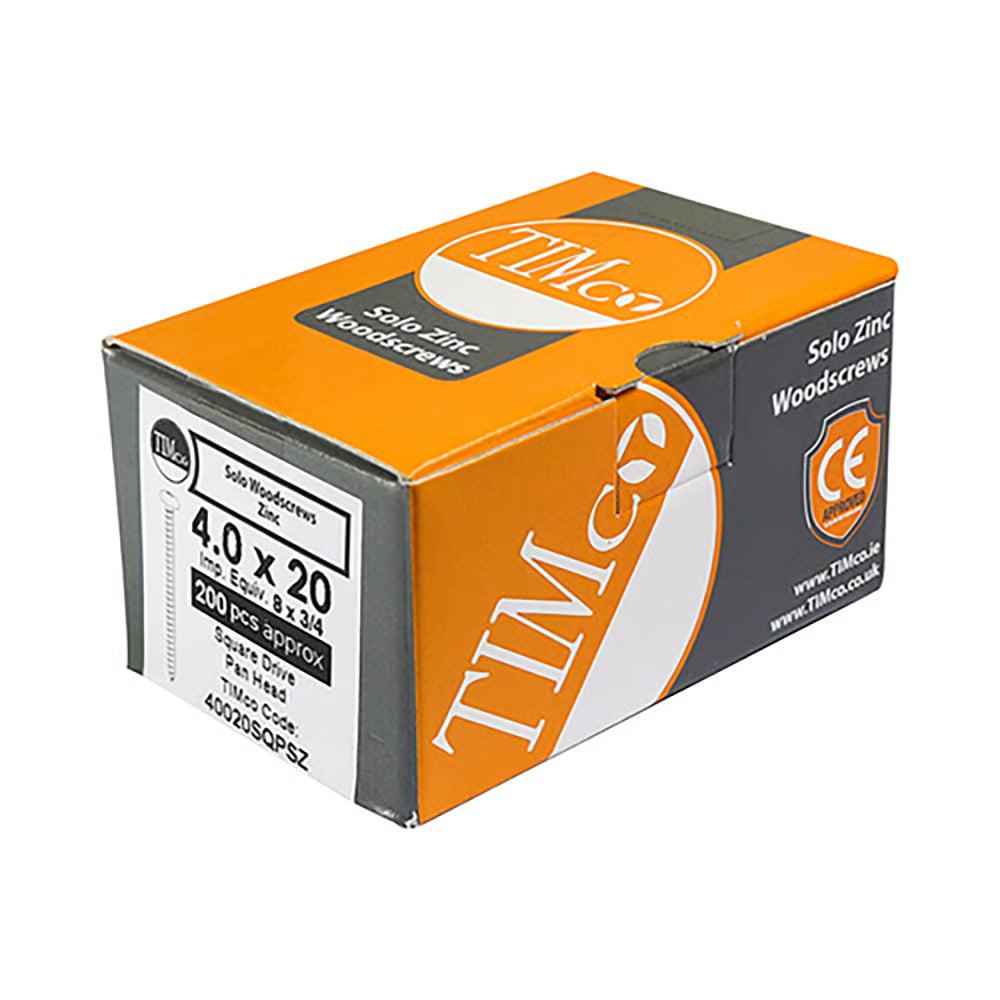

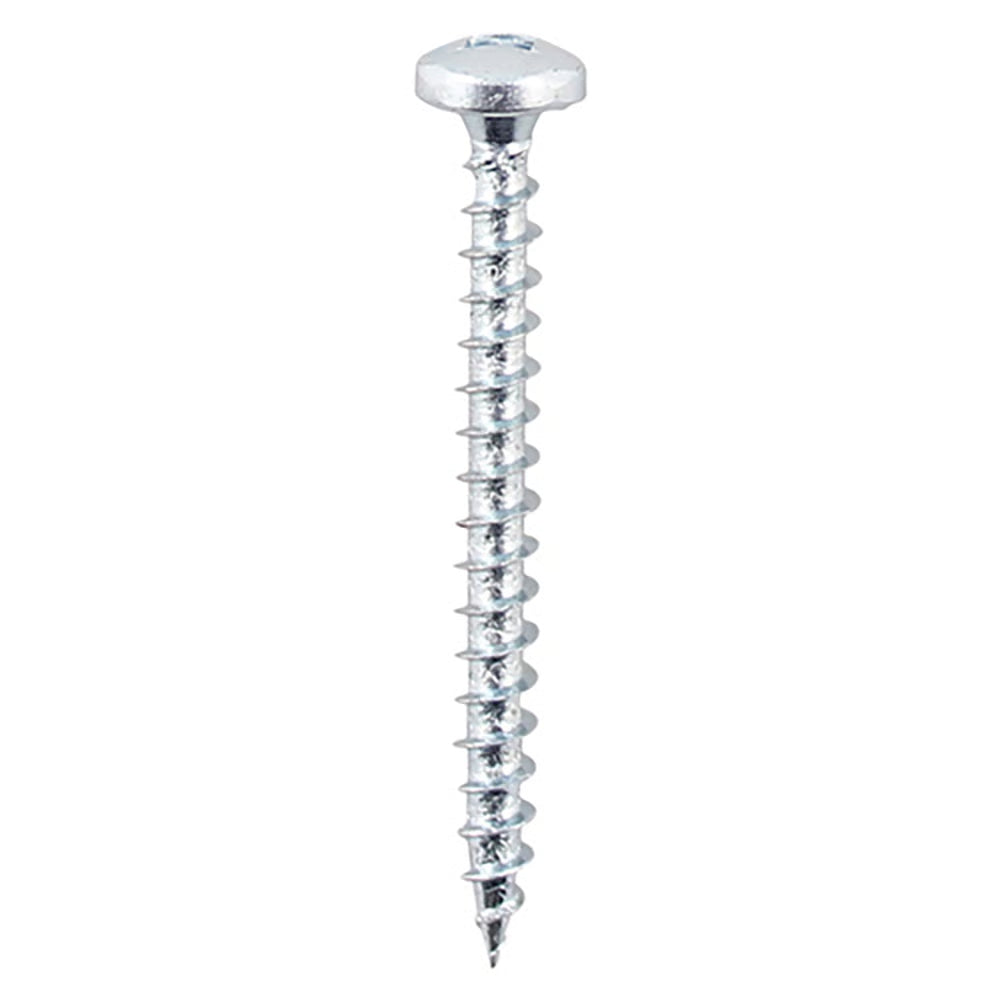

Solo Chipboard & Woodscrew SQ-Pan 20mm Length

Product Overview

Introducing our high-performance single-thread woodscrew, designed for versatility across various timber types, man-made boards, and even masonry when paired with a plastic plug. This screw is engineered to provide exceptional clamping and durability, making it an essential addition to your toolkit.

Key Features

• Pan Head Design: Features a square recess that enhances clamping efficiency, ensuring a secure fit.
• Wax Lubrication: Each screw is wax lubricated, which not only speeds up insertion but also increases driving torque and offers superior corrosion resistance.
• Deep Threading: The 40° deep single thread guarantees a strong hold with high pull-out resistance, making it ideal for demanding applications.
• Sharp Point: The 25° sharp point and single lead design facilitate a quick start and improve thread acceptance, reducing installation time.
• Thread Specifications: All sizes up to and including 75mm are fully threaded, while lengths of 80mm and above feature a 70mm thread length for enhanced grip.

Product Specifications

• Corrosion Rating: 1 - Suitable for clean, dry, and low humidity environments.
• Driver Bit Size: SQ2 for optimal compatibility.
• Finish: Zinc-coated for added protection against corrosion.
• Head Diameter: 7.87 mm with a pan head type.
• Inner Thread Diameter (d1): 2.5 mm.
• Length (L): 20 mm.
• Material: Made from high-quality carbon steel for strength and durability.
• Pack Quantity: Available in packs of 200 for convenience.
• Point Type: 25° sharp point for easy penetration.
• Recess Type: Square for improved grip.
• Size: 4.0 x 20 mm.
• Substrates: Suitable for use in softwood, chipboard, MDF, and masonry (with plug).
• Thread Coverage: Fully threaded for maximum holding power.
• Thread Length (L): 20 mm.
• Thread Diameter: 4 mm.
• Thread Type: 40° single deep for enhanced performance.

Conclusion

This single-thread woodscrew is engineered for reliability and efficiency, making it the perfect choice for both professional and DIY projects. Whether you're working with wood or masonry, you can trust our screws to deliver exceptional performance every time.
