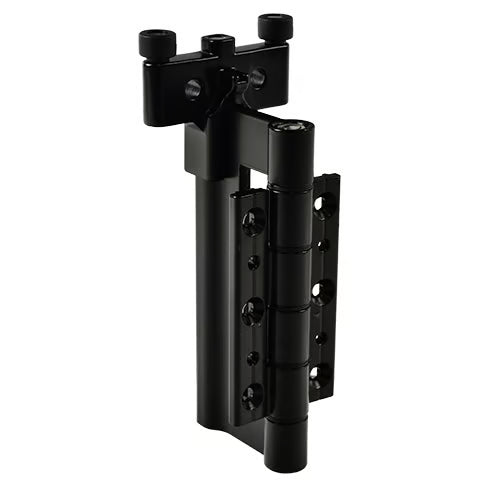

Smart Visofold 1000 Bi-Fold Doors Top Guide

Product Information
Replacement top guide commonly fitted to Smart Visofold 1000 aluminium bi-fold doors.

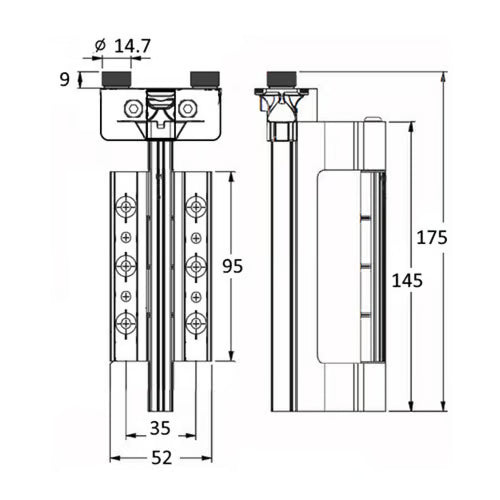

Product Specification

• Part Type: Top Guide
• Overall Height: 175mm
• Handle Height: 145mm
• Roller Height: 30mm
• Hinge Height: 95mm
• Hinge Width When Open: 52mm
• Diameter of Knuckle: 12mm
• Hinge Screw Centres: 35mm
• Fixing Holes: 5
• Countersunk Fixing Holes: 3
• Top to Bottom Fixing Hole: 72mm
• Top to Middle Fixing Hole: 36mm
• Middle to Bottom Fixing Hole: 36mm
• 2nd to 4th Fixing Hole: 40mm
• 3rd to 5th Fixing Hole: 35mm
• Roller Height: 9mm
• Roller Diameter: 14.7mm
• Roller Centres: 57.5mm
