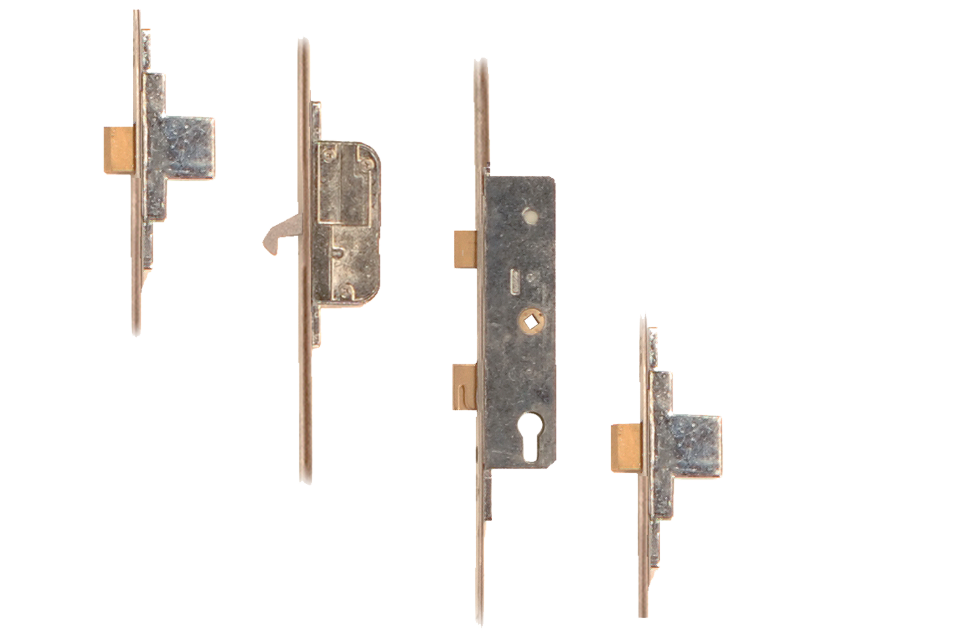

SL16 Lever Operated Latch & Deadbolt Split Spindle - 2 Dead Bolt 1 Hook

The FULLEX SL16 Lever Operated Latch & Deadbolt Split Spindle is designed for optimal security and ease of use. With a robust construction featuring a 35mm backset, 68mm centres, and a case height of 195mm, this lock is perfect for various door applications.

To activate the split spindle function, simply lift the external handle while pushing down on the internal handle until you hear an audible click, indicating the pin has broken. This allows for secure operation of the latch externally with a key or internally with the handle.

Identification

The FULLEX SL16 is easily recognizable by its two large chamfered deadbolt locking points and the unique track milled into the deadbolt within the centre gearbox. The faceplate is stamped with "FULLEX SL16," ensuring straightforward identification.

Gearbox Specifications

• Case Height: 195mm
• Case Width: 50mm
• Split Spindle Feature: Yes

Additional Locking Points

This system includes:

• 2 Deadbolts
• 1 Hook

Faceplate Dimensions

• Width: 16mm
• Length: 2200mm

Locking Point Distances

• Distance A: 340mm
• Distance B: 650mm
• Distance C: 650mm

Croppable Feature

The full-length unit can be cropped to fit the specific height of the door, providing flexibility during installation.

Handing Adjustment

To reverse the latch handing, remove the securing screw, withdraw and reverse the latch, and then refit the screw.

Sprung Mechanism

The gearbox is equipped with an internal spring mechanism, ensuring the lever returns smoothly without the need for additional sprung handles.

Operation Instructions

• Locking Method: Lift the lever to engage the locking mechanisms, then turn the cylinder one full turn to lock.
• Unlocking Method: Turn the key one full turn, then push down on the lever to unlock.

Key Features

• 16mm Faceplate
• Easily activated split spindle function
• Combination of latch and deadbolt
• Euro profile lock case

This lock system combines security with user-friendly features, making it an excellent choice for enhancing door safety.
