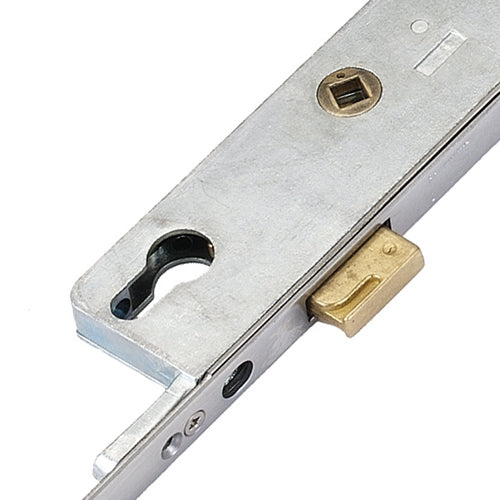

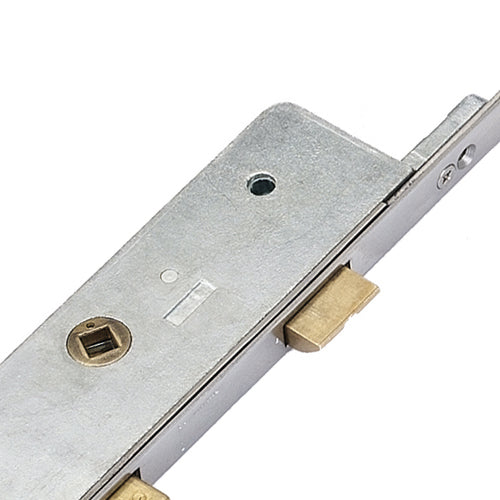

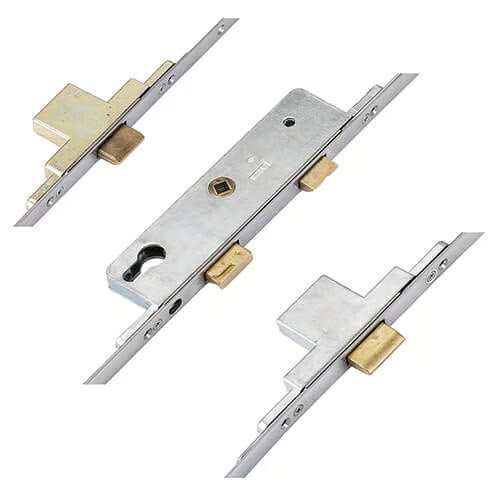

SL16 Latch 3 Deadbolts Split Spindle Multipoint Door Lock - 16mm Faceplate

Product Overview: Fullex SL16 Multipoint Door Lock

The Fullex SL16 multipoint door lock is engineered for security and durability, featuring a robust design with 3 deadbolts and 1 latch. This lock has been a trusted choice for both private and social housing for decades, thanks to its unique PZ centre measurement of 68mm, setting it apart from other full-length multipoint locks on the market.

Key Features:

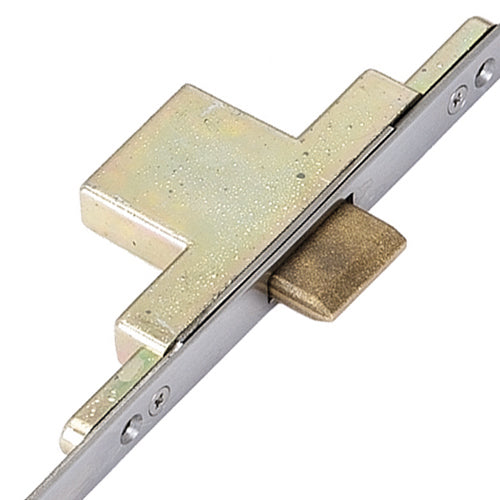

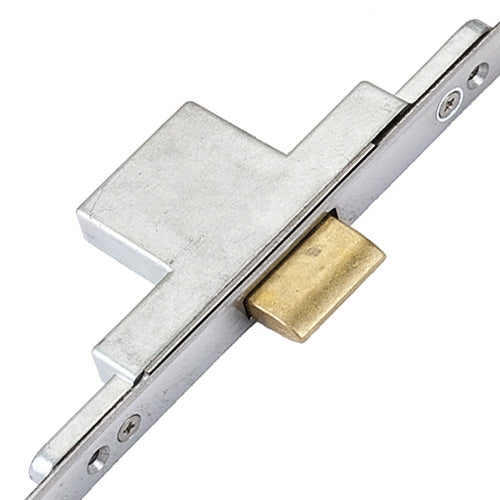

• Unique Design: The SL16 lock boasts a central latch and deadbolt, complemented by two additional deadbolts positioned equidistant from the spindle. The top and bottom deadbolts are each 650mm from the spindle, ensuring a secure fit.
• Versatile Configurations: Available in various configurations and faceplate sizes, the SL16 can accommodate different door styles and security needs. Certain models include an additional hook lock located 345mm from the spindle for enhanced security.
• Easy Identification: Identifying an SL16 lock is straightforward. Look for the 68mm centre measurement on the gearbox. Be cautious of older type A-G locks, which may not feature the Fullex branding.
• Durable Materials: The faceplates come in 16mm or 20mm variants, crafted from austenitic stainless steel for superior corrosion resistance.
• Handle Compatibility: SL16 handles require a 68mm centre measurement. Options include standard lever lever or lever pad versions, with some featuring a hold-back snib.
• Gearbox Options: Fullex SL16 gearboxes are available in 35mm, 45mm, and 55mm backsets, all designed with a split spindle for versatile operation as a lift lever or split spindle nightlatch.
• Security Features: The tapered deadbolts provide both security and compression, ensuring the door is tightly secured against the frame. When engaged, the deadbolts throw 20mm into their keeps for added protection.

Operation Instructions:

To lock the door:

1. Lift the handle upwards to engage the locking points.
2. Turn the key to lock the locking points and main deadbolt (if applicable).

To unlock the door:

1. Turn the key to unlock the system.
2. Push the handle downwards to disengage the locking points and retract the latch.

Testing and Compliance:

• The SL16 has been cycle tested for 100,000 operations, ensuring reliability.
• It meets BS EN 1670 Grade 5 corrosion resistance standards, tested for 480 hours.
• Compliant with Secured by Design standards, suitable for use on PAS24 compliant door sets.

Product Specification

• Manufacturer: Fullex
• Spindle Size: 8mm
• Deadbolts: 3
• Latch: 1
• Main Gearbox: Latch & deadbolt
• Spindle: Split 8mm
• Handing: Non handed
• Distance Between Inner Locking: 1300mm
• Height: 2200mm
• Top Deadbolt to Spindle: 650mm
• Bottom Deadbolt to Spindle: 650mm
• Door Material: UPVC, Aluminium, Timber, Composite

Measuring Guidelines:

To ensure a proper fit and functionality of your Fullex SL16 multipoint door lock, follow these measuring guidelines:

• Backset Measurement:
  • Measure from the edge of the door to the center of the keyhole.
  • This distance is your backset measurement.
• Centres PZ Measurement:
  • Measure from the center of the keyhole to the center of the handle spindle.
  • The standard measurement for the SL16 is 68mm.
• Faceplate Measurement:
  • Measure the width and length of the existing faceplate.
  • Ensure to select the correct size from the drop-down options based on your measurements.

By following these guidelines, you can ensure that your door lock installation will be seamless and secure.
