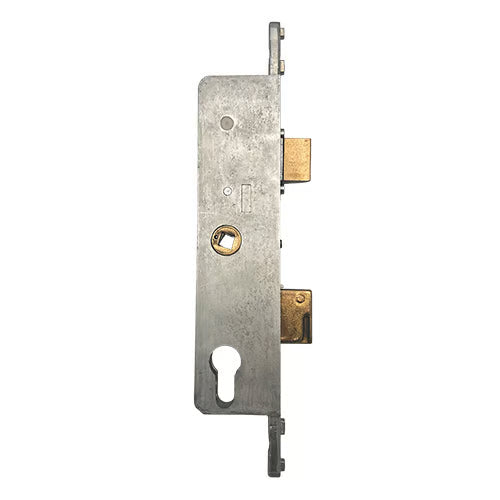

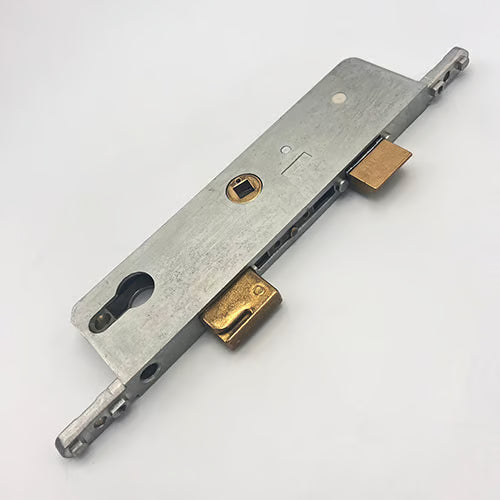

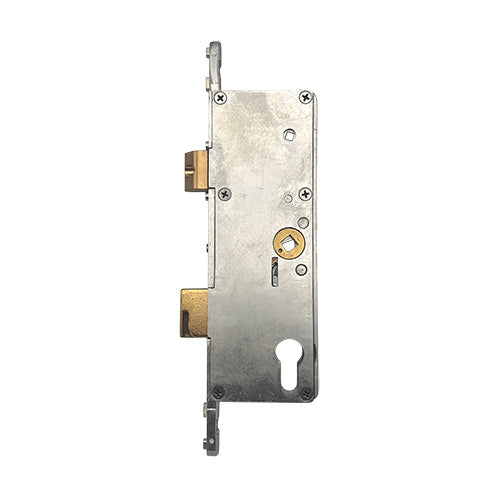

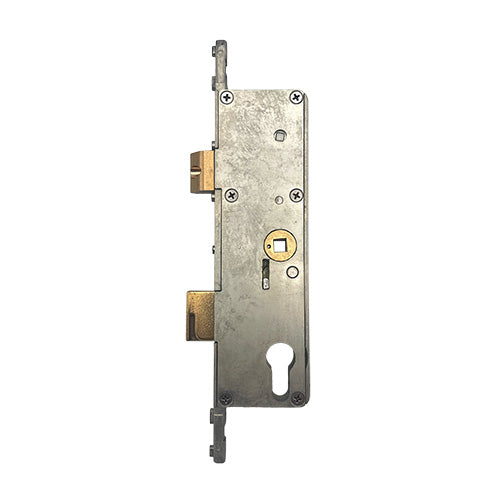

SL16 Genuine Multipoint Gearbox - Lift Lever or Split Spindle

Product Overview: Fullex SL16 Gearboxes

Fullex SL16 gearboxes are designed for versatility and reliability, available in three backset options: 35mm, 45mm, and 55mm. Each model features a split spindle mechanism, allowing for both lift lever and split spindle nightlatch functions.

Key Specifications:

• Centres Measurement: 68mm (PZ), exclusive to Fullex locks (also found on FULCCA).
• Overall Case Height: 194mm
• Case Width: Backset + 15mm

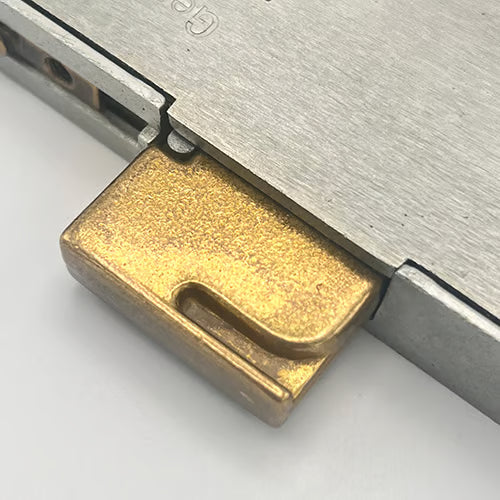

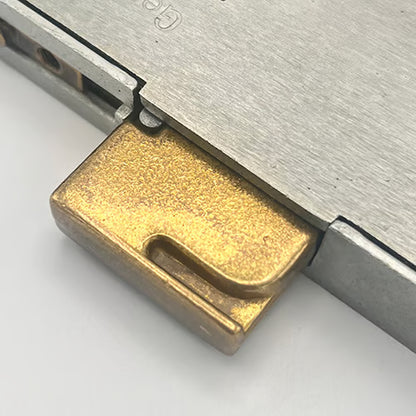

• Latch Dimensions: 27mm high
• Deadbolt Dimensions: 32mm high
• Distance Between Latch and Deadbolt: 65mm

Fixing and Installation:

SL16 gearboxes are equipped with fixing tabs at both the top and bottom, measuring 15mm wide by 9mm deep. The lugs are 11mm wide, and the case is secured to the faceplate with screws positioned 206mm apart.

New Style Case:

We offer a comprehensive range of associated products for Fullex SL16 gearboxes, including:

• Multipoint door locks
• Keeps
• Spindles
• Handles
• Accessories

Operation and Maintenance:

• Operation Type: Lift lever or split spindle
• Latch Reversal: To reverse the latch, simply undo the screw, remove the latch, reverse it, reinsert, and replace the screw.

Explore our selection to enhance your security solutions with Fullex SL16 gearboxes!

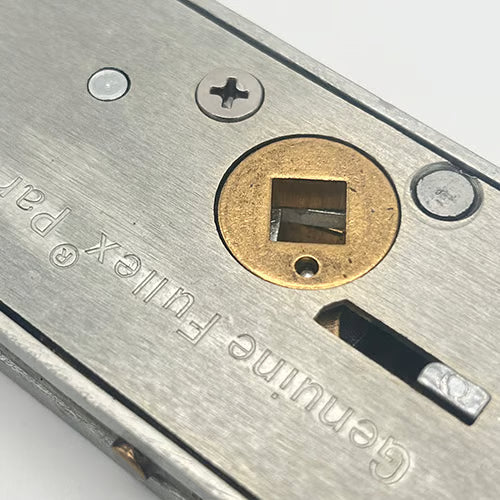

Nightlatch Reversal: The lock is supplied as a lift lever function, it is fitted with a travel pin on the surround of the spindle hole. This must be broken in order to convert to a split spindle function.

To break the travel pin, simultaneously lift the outside handle up and the inside handle down; you should hear the crunching noise of the pin breaking.

The split spindle function is now activated, and with the spindles set into the correct position, the latch will now only open via the key from the outside and by the handle from the inside.

The follower of a Fullex lock is split into three parts. Using a Genuine Fullex Split Spindle (our part number SPLITSPIN), the longer spindle must go on the inside and should overlap two parts, while the shorter spindle is to be placed on the outside and should only engage with the first part.

To lock the door:

1. On closing the door, the latch is automatically engaged.

2. Lift the handle up to engage the additional locking points.

3. Throw the deadbolt and lock the system by turning the key (on some brands, the deadbolt will be thrown by lifting the handle).

To unlock the door:

1. Unlock the system by turning the key.

2. Push the handle downwards to disengage the locking points.

3. A further quarter turn of the key will retract the latch.

Product Specification:

Manufacturer: Fullex
Backset: 35mm, 45mm, or 55mm - How do I measure the backset?
Centres PZ: 68mm - How do I measure the centres?
Case Height: 194mm
Case Width: Backset + 15mm
Copy/Genuine: Genuine
Cylinder Type: Euro
Handing: Not Handed
Main Gearbox: Latch & deadbolt
Spindle: Split 8mm
Operation: Lift Lever or Split Spindle Nightlatch - What is the operation?
Packaging: Supplied in singles

Explore our range of Fullex products to ensure your security needs are met with the highest standards of quality and reliability!
